800KGS Double Drum,Piston Motor,Underground Mining Air Scraper Winch with Scraper Pan
1. The usage and the scope of air scraper winch
1.1 This series of air scraper winches are powered by compressed air.

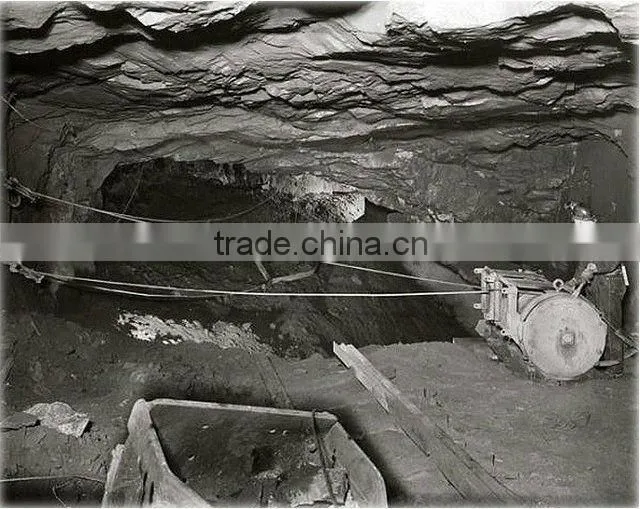

1.2 The winches are widely used in underground or open air to move the ores or fill staffs at the metal mines or other kind of mines.
1.3 The winches are mainly used in horizontal slushing or the slope slushing with an angle of little degrees, but cannot be used as the lifting equipments.
1.4 The winch is designed to be manually operated with people standing beside it.
1.5 The working way of the winch is that there are wire-ropes entangled with drum pulling the scraper pan to do the shuttle movement for scraping the stuff.
2.Main Technical Parameters For Air Scraper Winch with Scraper Pan:
Name |
Parameter |
Unit |
|
Working pressure |
0.69-1.0 |
MPa |
|
Traction |
8 |
kN |
|
Max rope speed |
32 |
m/min |
|
Air motor |
Rated power |
7.5 |
kW |
Rotating speed |
2400 |
rpm |
|
Drum |
Diameter |
190 |
mm |
Length |
110 |
mm |
|
Wheel flange diameter |
320 |
mm |
|
Wire-rope diameter |
9.3 |
mm |
|
Rope capacity |
45 |
m |
|
External dimension |
Length × width × height |
800×550×421 |
mm |
Working condition |
Temperature |
-10 +60 |
℃ |
Humidity |
100% |
|
|
Wind speed & wave height |
6 / 2 |
level/M |
|
Weight |
350 |
kg |
|

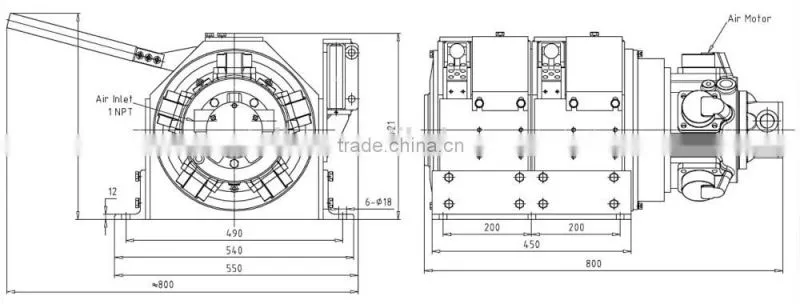

3.Outline Drawing For Air Scraper Winch:
4.Drawing For Air Scraper Winch:

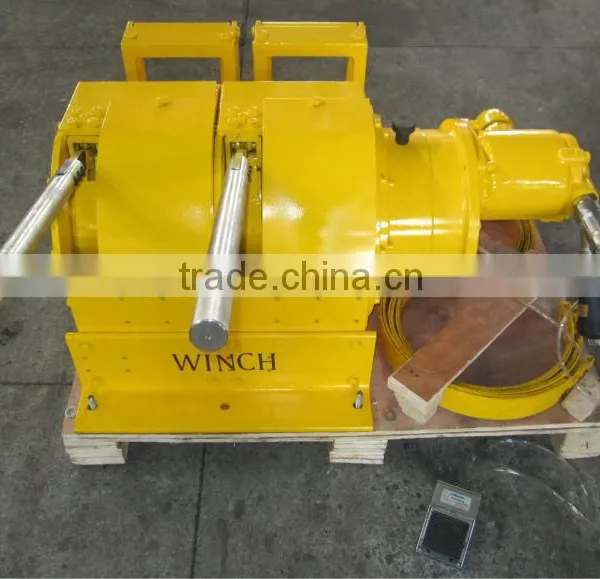

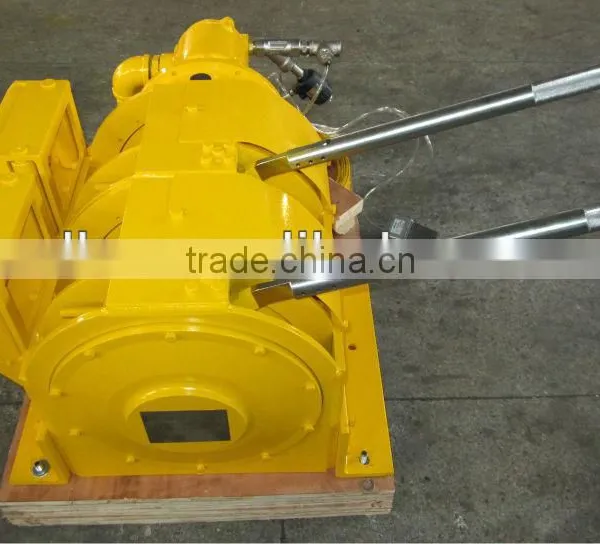

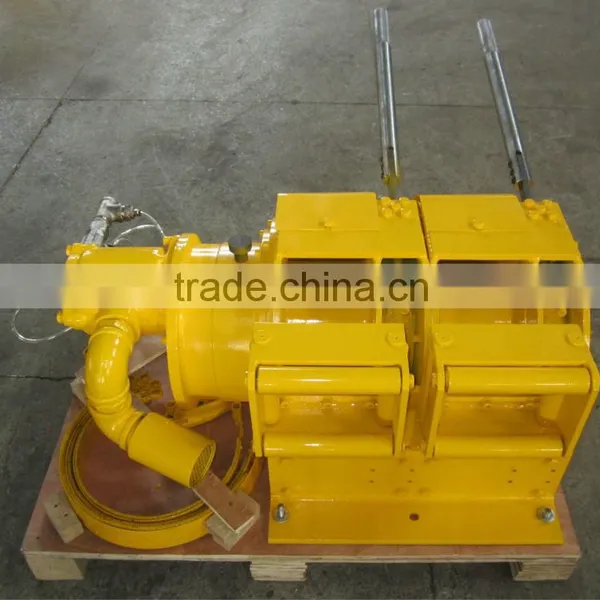

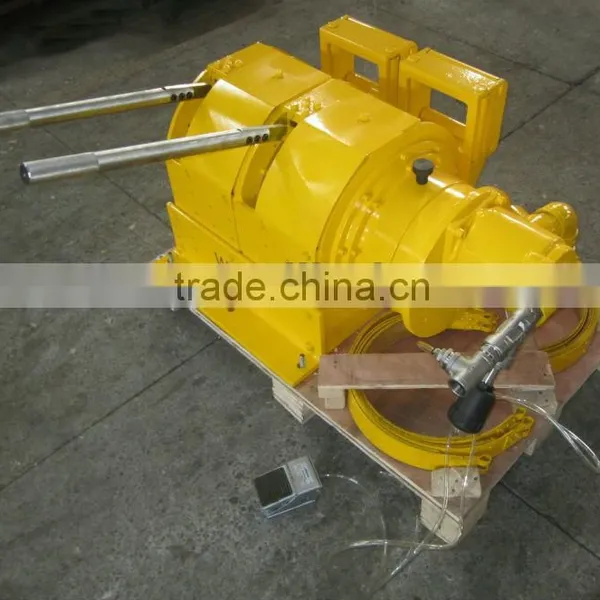

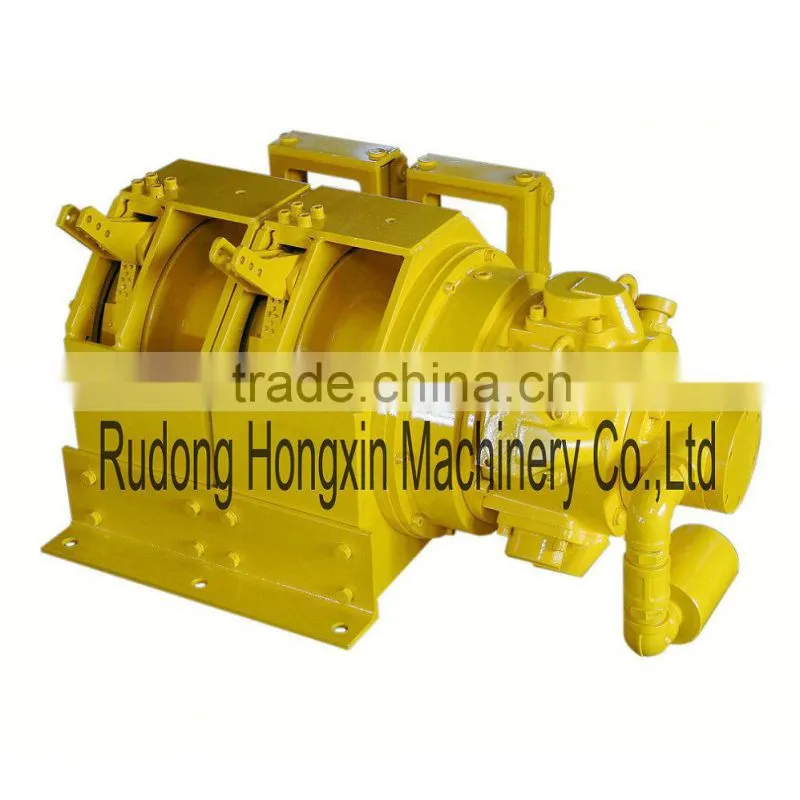

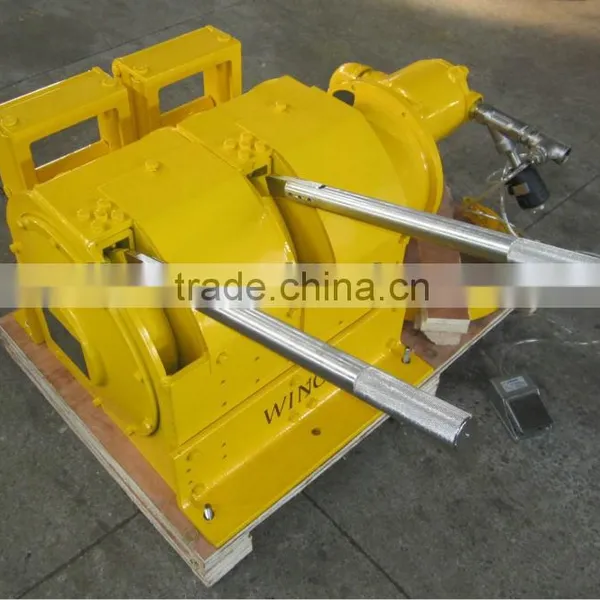

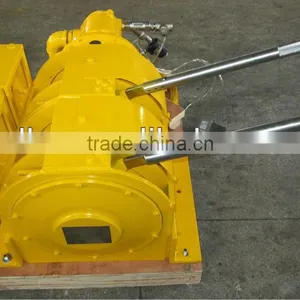

5.Real Photoes for Air Scraper Winch :
