Specifications
Bucket Elevator1.Easy to adjust
2.Long serving lifetime
3.easy operation and maintenance
4.Shorten time of downtime
Bucket elevator
Introduction of Bucket Elevator:
The bucket elevator is one of lifting equipments frequently used in the industrial production. The most common is the belt-type bucket elevators and chain-type bucket elevator.
TD-belt bucket elevator to meet the general use. Chain-type bucket elevator is used in a wider range of materials. Widely used in metallurgical, chemical, building materials, mining, grain and oil, food, feed, plastics, pharmaceutical and other industries
Structure of Bucket Elevator:
Bucket elevator is made up of the move part (hopper and drag tape), the upper part that has transmission drum and the under part that has cocking rotary drum, middle machine shell, driving device, opposite brake device. It is suit for lifting loose, density less than 1.5t/m3 powdery, granularity and small block loose materials. Such as coal, sand, charcoal powder, cement, crushing mineral stone.
The Technical Parameter of Bucket Elevator:
Type |
Speed (m/s) |
Hopper volume (L) |
Max size (mm) |
Capacity (m³/h) |
TH-315 |
1.1 |
6 |
35 |
59 |
TH-400 |
1.1 |
9.5 |
40 |
94 |
TH-500 |
1.5 |
15 |
50 |
118 |
TH-630 |
1.5 |
23.6 |
60 |
185 |

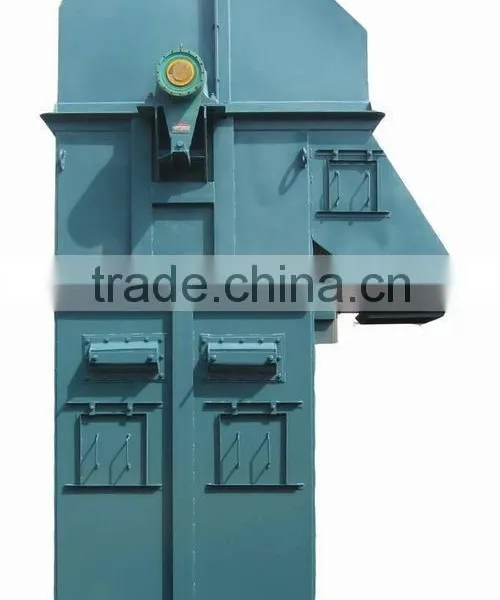

Picture Show Bucket Elevator:
Our company:
Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
Bucket elevator
