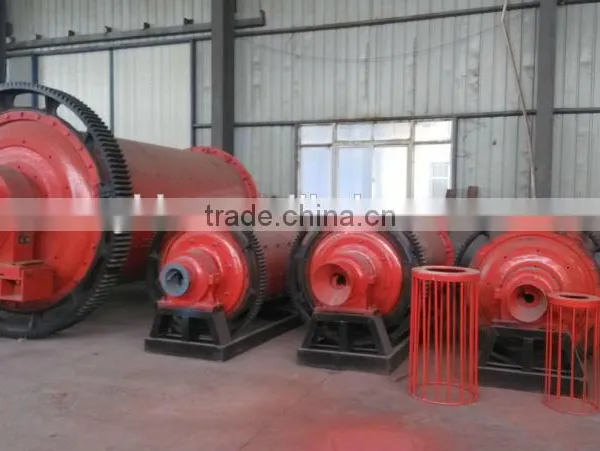

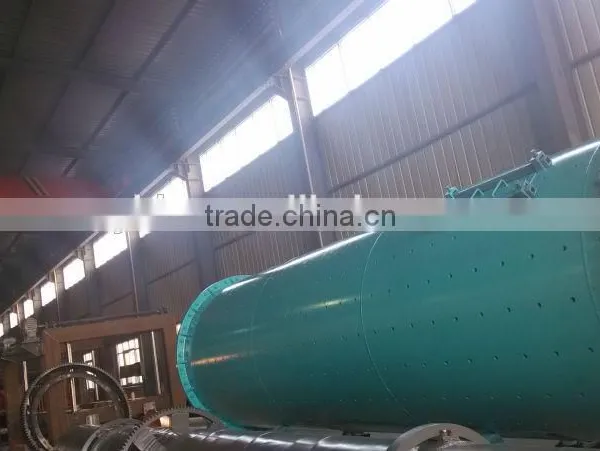

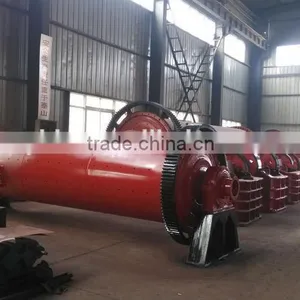

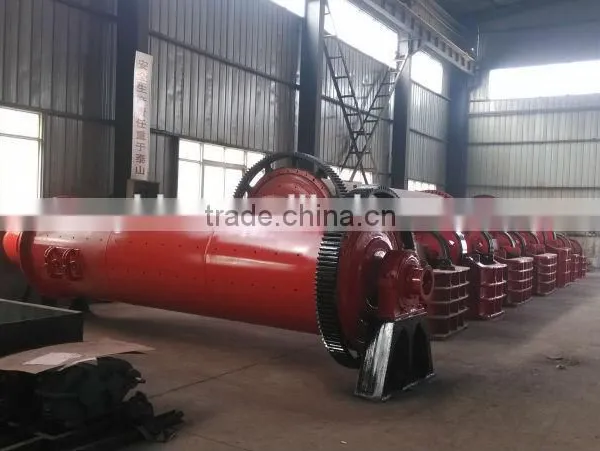

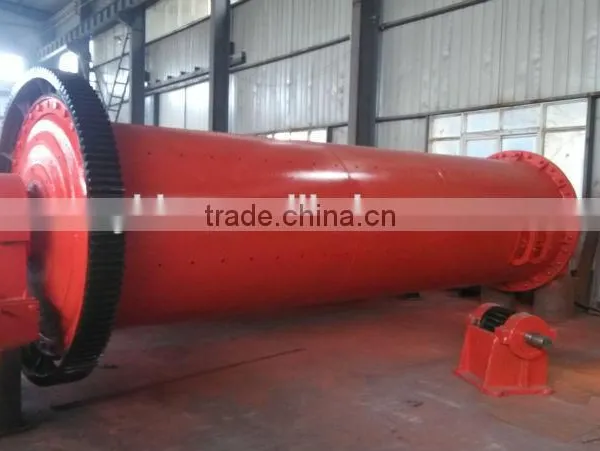

Energy-saving Ball Mill
Ball mill is YinHai's major product, professional technology support and all-around service can be offered to you, we also can made according to your special requirments. Welcome you visit our company to know more
about us.
Energy-Saving Ball Mill Application:
Energy-Saving Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
Energy-Saving Ball Mill Features:
1) is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
| Model | Speed of bucket (r/min) |
Weight of ball |
Size of feed opening(mm) |
size of outputting feed (mm) |
Production (t/h) |
Power (kw) |
Weight (T) |
| 900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| 900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| 1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
| 1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
| 1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
| 1500×4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
| 1830×3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
| 1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
| 2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
| 2200×6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
| 2200×7500 | 21 | 33 | ≤25 | 0.075-0.4 | 16-29 | 475 | 56 |
