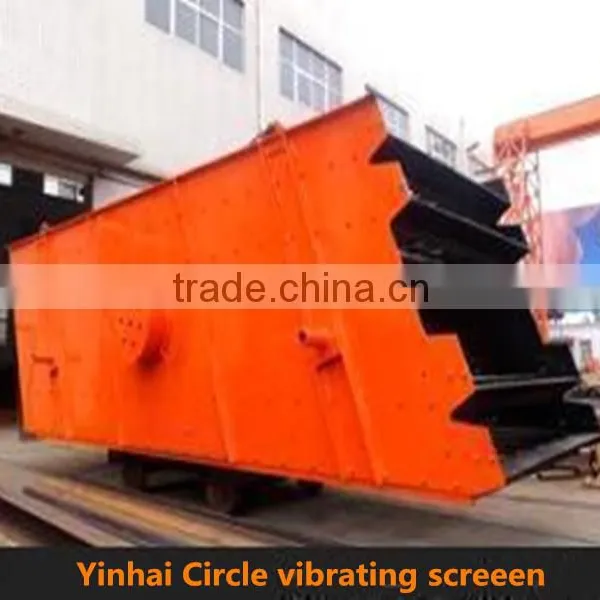

China made Circle Vibrating screen specification

Name: China made Circle Vibrating screen specification
Brand: YinHai
Price: USD $5,870 - 6,750 / Set

FOB Price

USD $5,870 - $6,750 / Set

1 Set(Min.Order)

Supply Ability 4000 Set / Sets per Month
Port any port in china
Payment Terms:T/T L/C D/P D/A PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Circular	Application:	Ore
Place of Origin:	Henan, China	Brand Name:	YinHai	Model Number:	2YK1230
Voltage:	various	Power(W):	7.5	Dimension(LWH):	34301860870mm
Weight:	4200kg	Certification:	ISO9001:2008	Warranty:	one year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

China made Circle Vibrating screen specification

Product Description

I.Detailed product description of Vibrating screen:

Mining machinery, linear vibrating screen is one of the unique product or equipment, it is used for sand vibrating screen to separate the stuff. The vibrating screens are mainly used in coal dressing, sand vibrating screen, metallurgy, mine, power station, water conservancy project, building industry, light industry and chemical industry etc. They are efficient screening machines for the classification of bulk material such as coal, minerals, coke etc.

II.Features and Benefits of Vibrating screen:

1.Innovative structure, large handle capacity, high-efficient screening

2.Tube style eccentric shaft exciter and amplitude adjustment are adopted to facilate the maintenance

3.Spring steel woven screen or perforated screen plate are adopted to lengthen service life and not easy to plug hole

4.Rubber isolation spring is adopted to lengthen service life, lower noise and stablize resonance region

Vibrating screen used for Stone making line

III.Working principle of Vibrating screen:

Vibrating screen adopts a dual-vibraion motor drive, when two vibrating motors do synchronous, reverse rotation, the exciting force produced by eccentric block, cancel out in the derection parallel to the motor shaft, and stacked together in the direction perpendicular to the motor shaft, so the trajectory of the screening machine is a straight line. There is a dip angle between screen surface opposite two motor shafts, under the function of excitation force and material weight, the material on the screen surface is tossed leap forward in a straight line, thus achieve the purpose of screening.

This series linear vibrating screen gradually formed on the basis of specific situation in building material industry and feedback form clients. Vibration exciter has vibration cassette and eccentric block, the connection mode has cardan shaft and coupling and tire coupling. There must be one suit you best. Contact us if you have such requirement.

Vibrating screen structure photo

IV.Main technical parameters of Vibrating screen:

Model	Net layers	Net area(m²)	Vibrating Frequency(r/min)	Double amplitude(mm)	Screen hole size(mm)	Power(kw)	Capacity(t/h)
YK1860	1	10.8	960	5~8	3-150	7.5	120~230
YK2060	1	12	960	5~8	3-150	11	150~260
2YK1560	2	8	960	5~8	3-150	7.5	70~180
2YK1860	2	10.8	960	5~8	3-150	11	120~230
2YK2060	2	12	960	5~8	3-150	11	150~260
2YK2460	2	14.4	960	5~8	3-150	15	240~300
3YK1560	3	8	960	5~8	3-150	15	70~180
3YK1860	3	10.8	960	5~8	3-150	15	120~230
3YK2060	3	12	960	5~8	3-150	15	180~280
3YK2460	3	14.4	960	5~8	3-150	15	240~300
4YK1560	4	10.8	960	5~8	3-150	18.5	120~230
4YK1860	4	12	960	5~8	3-150	18.5	150~260
4YK2060	4	13.2	960	5~8	3-150	18.5	200~260
4YK2460	4	14.4	960	5~8	3-150	18.5	240~300
5YK1860	5	10.8	960	5~8	3-150	15	120~230
5YK 2060	5	12	960	5~8	3-150	22	150~260

Model	Net layers	Net area(m²)	Vibrating Frequency(r/min)	Double amplitude(mm)	Screen hole size(mm)	Power(kw)	Capacity(t/h)
YK1860	1	10.8	960	5~8	3-150	7.5	32-350
YK2060	1	12	960	5~8	3-150	11	66-720
2YK1560	2	8	960	5~8	3-150	7.5	30-275
2YK1860	2	10.8	960	5~8	3-150	11	65-586
2YK2060	2	12	960	5~8	3-150	11	81-720
2YK2460	2	14.4	960	5~8	3-150	15	100-810
3YK1560	3	8	960	5~8	3-150	15	65-586
3YK1860	3	10.8	960	5~8	3-150	15	65-586
3YK2060	3	12	960	5~8	3-150	15	81-720
3YK2460	3	14.4	960	5~8	3-150	15	100-810
4YK1560	4	10.8	960	5~8	3-150	18.5	65-586
4YK1860	4	12	960	5~8	3-150	18.5	65-586
4YK2060	4	13.2	960	5~8	3-150	18.5	81-720
4YK2460	4	14.4	960	5~8	3-150	18.5	100-810
5YK1860	5	10.8	960	5~8	3-150	15	65-586
5YK 2060	5	12	960	5~8	3-150	22	81-720

Vibrating screens in our working shop photo

Vibrating screen working photo

Before sale:

Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.

1.Select the right model of equopment for customer.

2.Our service engineers would be ready for service 24 hours per day.

3.We will answer your qustion any time

4.Provide training for customer's technician

During sale:

Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.

1.Inspect before accept the products sent by us.

2.Assist our customer to make a constrution plan.

After sale:

1.The installation and testing of equipment.

2.We would be ready for service 24 hours per day to accept your feedback .

3.we would provide maintaince if our product have problem.

Leadtime: About 15-25 days after receiving advanced payment

Packing: normal export container or required

Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.

How about the quality of our machine?

Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery.

How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.

How about the after-sale service of your company?
Our engineer is aviliable to installation machine overseas.
The guarantee period of our machine is one year.
Spare parts will supply at any time.

Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
