China High Efficiency Rotary Vibrating Screen Motor for Stone Making Line

China High Efficiency Rotary Vibrating Screen Motor for Stone Making Line thumbnail-1
China High Efficiency Rotary Vibrating Screen Motor for Stone Making Line thumbnail-2
China High Efficiency Rotary Vibrating Screen Motor for Stone Making Line thumbnail-3
China High Efficiency Rotary Vibrating Screen Motor for Stone Making Line thumbnail-4
China High Efficiency Rotary Vibrating Screen Motor for Stone Making Line photo-1
China High Efficiency Rotary Vibrating Screen Motor for Stone Making Line photo-2
China High Efficiency Rotary Vibrating Screen Motor for Stone Making Line photo-3
China High Efficiency Rotary Vibrating Screen Motor for Stone Making Line photo-4
US$ 14,850 - 19,750 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Ore
Contact Supplier Request Quote Chat Now
Zhengzhou Yinhai Mining Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Ore
Place of Origin Henan, China
Brand Name YinHai
Model Number 3YK2160
Voltage 220V/380V
Power(W) 30kw
Dimension(L*W*H) 7030*2840*1910mm
Weight 12800kg
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

China High efficiency Rotary Vibrating screen motor for Stone making line





Product Description



Detailed product description of Vibrating screen motor:

Mining machinery, linear vibrating screen is one of the unique product or equipment, it is used for sand vibrating screen to separate the stuff. The vibrating screens are mainly used in coal dressing, sand vibrating screen, metallurgy, mine, power station, water conservancy project, building industry, light industry and chemical industry etc. They are efficient screening machines for the classification of bulk material such as coal, minerals, coke etc.




Working principle of Vibrating screen motor:
Vibrating screen adopts a dual-vibraion motor drive, when two vibrating motors do synchronous, reverse rotation, the exciting force produced by eccentric block, cancel out in the derection parallel to the motor shaft, and stacked together in the direction perpendicular to the motor shaft, so the trajectory of the screening machine is a straight line. There is a dip angle between screen surface opposite two motor shafts, under the function of excitation force and material weight, the material on the screen surface is tossed leap forward in a straight line, thus achieve the purpose of screening.

This series linear vibrating screen gradually formed on the basis of specific situation in building material industry and feedback form clients. Vibration exciter has vibration cassette and eccentric block, the connection mode has cardan shaft and coupling and tire coupling. There must be one suit you best. Contact us if you have such requirement.


                                       Vibrating screen equipment working principle drawing

Main technical parameters of Vibrating screen motor:

Model

Sieve layer

Sieve obliquity
(°)

Sieve area(m2)

Vibrating power (r/min)

Double amplitude
(mm)

Processing capacity (m/h)

Motor power (kW)

Overall size (L×W×H)(mm)

Weight
(kg)

2YK1230

2

20

7.2

800-970

8

12-78

7.5

3430*1860*870

4200

3YK1230

3

20

10.8

800-970

8

13-80

7.5

3570*1860*1210

4600

2YK1237

2

20

8.88

800-970

8

15-86

7.5

4050*1860*870

4600

3YK1237

3

20

13.22

800-970

8

16-90

7.5

4270*1860*1210

5200

2YK1535

2

20

10.5

800-970

8

20-125

11

4120*2210*1230

5890

3YK1535

3

20

15.75

800-970

8

21-125

11

4360*2210*1610

6700

2YK1545

2

20

13.5

800-970

8

22-150

15

5120*2210*1230

6330

3YK1545

3

20

20.25

800-970

8

22-150

15

5360*2210*1610

6800

4YK1545

4

20

27

800-970

8

22-155

18.5

5930*2210*2060

7800

2YK1548

2

17.5

7.2

970

6-8

20-150

15

5265×3140×3208

5284

3YK1548

3

17.5

7.2

970

6-8

20-150

15

5200×3090×3440

6186

4YK1548

4

17.5

7.2

970

6-8

20-150

18.5

5200×3155×3849

7284

2YK1860

2

20

10.8

970

6-8

32-350

18.5

6020×3455×3756

6195

3YK1860

3

20

10.8

970

6-8

32-350

18.5

6020×3455×4180

7613

4YK1860

4

20

10.8

970

6-8

32-350

22

5963×3505×4463

8650

2YK2160

2

20

12.6

970

6-8

66-720

22

5966×3958×3975

6856

3YK2160

3

20

12.6

970

6-8

66-720

30

5966×3958×4400

9112

4YK2160

4

20

12.6

970

6-8

66-720

30

5966×3958×4780

11405

2YK2460

2

20

14.4

970

6-8

75-750

30

6027×4308×3975

8503

3YK2460

3

20

14.4

970

6-8

75-750

30

6027×4308×4400

10411

4YK2460

4

20

14.4

970

6-8

75-750

30

5966×4308×4780

12068

2YK2475

2

20

18

970

6-8

120-900

30

7812×4308×4642

10709

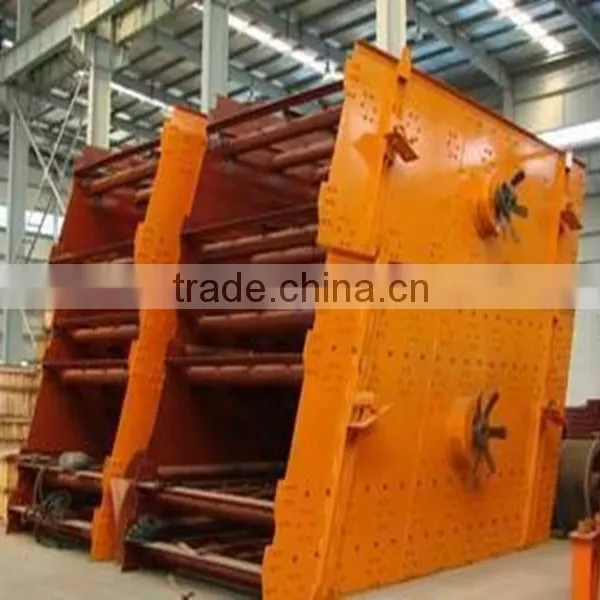

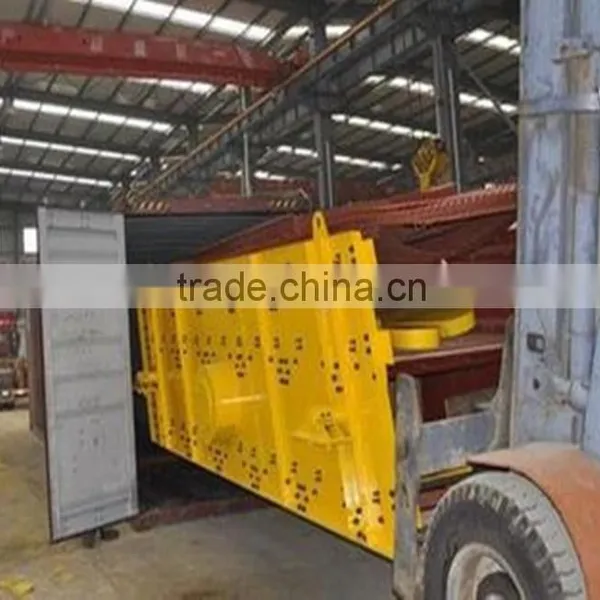

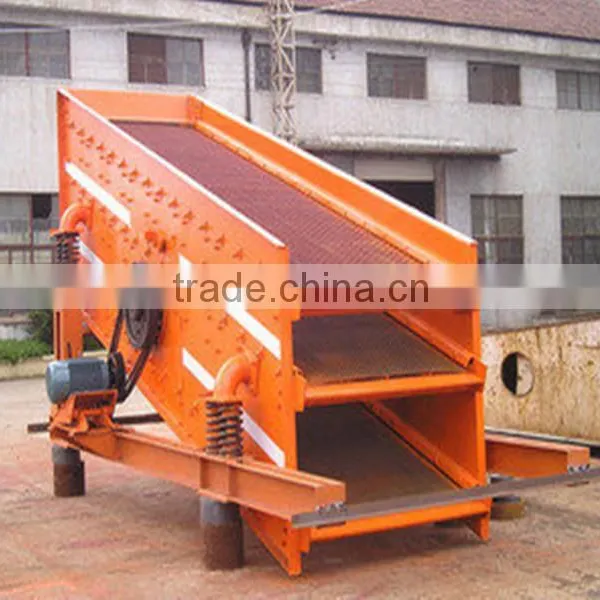

Vibrating screen equipment in our working shop photos

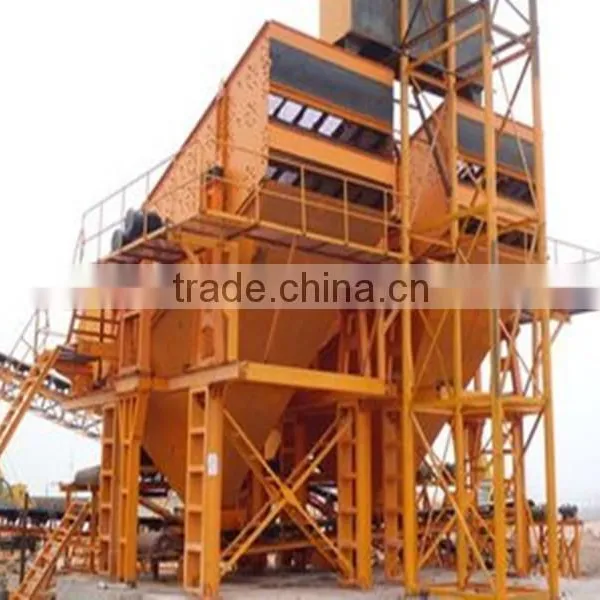

                                                   Vibrating screen equipments working photo

Our Services



Before sale:

Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.

1.Select the right model of equopment for customer.

2.Our service engineers would be ready for service 24 hours per day.

3.We will answer your qustion any time

4.Provide training for customer's technician





During sale:

Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.

1.Inspect before accept the products sent by us.

2.Assist our customer to make a constrution plan.





After sale:

1.The installation and testing of equipment.

2.We would be ready for service 24 hours per day to accept  your  feedback .

3.we would provide maintaince if our product have problem.





Leadtime: About 15-25 days after receiving advanced payment

Packing: normal export container or required

Company Information





Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.







How about the quality of our machine?

Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery.





How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.





How about the after-sale service of your company?
Our engineer is aviliable to installation machine overseas.
The guarantee period of our machine is one year.
Spare parts will supply at any time.



  Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
