China Direct Manufacture for Circle Vibrating Screen Separator

China Direct Manufacture for Circle Vibrating Screen Separator thumbnail-1
China Direct Manufacture for Circle Vibrating Screen Separator thumbnail-2
China Direct Manufacture for Circle Vibrating Screen Separator thumbnail-3
China Direct Manufacture for Circle Vibrating Screen Separator thumbnail-4
China Direct Manufacture for Circle Vibrating Screen Separator thumbnail-5
China Direct Manufacture for Circle Vibrating Screen Separator photo-1
China Direct Manufacture for Circle Vibrating Screen Separator photo-2
China Direct Manufacture for Circle Vibrating Screen Separator photo-3
China Direct Manufacture for Circle Vibrating Screen Separator photo-4
China Direct Manufacture for Circle Vibrating Screen Separator photo-5
US$ 11,750 - 14,850 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Ore
Contact Supplier Request Quote Chat Now
Zhengzhou Yinhai Mining Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Ore
Place of Origin Henan, China
Brand Name YinHai
Model Number 4YK1548
Voltage 220V/380V
Power(W) 18.5kw
Dimension(L*W*H) 6230*2210*2060mm
Weight 19600T
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

China direct manufacture for Circle Vibrating screen separator





Detailed product description of vibrating screen separator :

Mining machinery, linear vibrating screen is one of the unique product or equipment, it is used for sand vibrating screen to separate the stuff. The vibrating screens are mainly used in coal dressing, sand vibrating screen, metallurgy, mine, power station, water conservancy project, building industry, light industry and chemical industry etc. They are efficient screening machines for the classification of bulk material such as coal, minerals, coke etc.

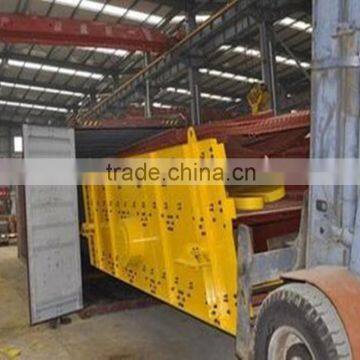

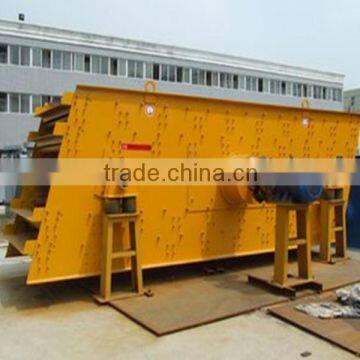

                                                     Vibrating screen separator working photos



Working principle of vibrating screen separator :
Vibrating screen adopts a dual-vibraion motor drive, when two vibrating motors do synchronous, reverse rotation, the exciting force produced by eccentric block, cancel out in the derection parallel to the motor shaft, and stacked together in the direction perpendicular to the motor shaft, so the trajectory of the screening machine is a straight line. There is a dip angle between screen surface opposite two motor shafts, under the function of excitation force and material weight, the material on the screen surface is tossed leap forward in a straight line, thus achieve the purpose of screening.

This series linear vibrating screen gradually formed on the basis of specific situation in building material industry and feedback form clients. Vibration exciter has vibration cassette and eccentric block, the connection mode has cardan shaft and coupling and tire coupling. There must be one suit you best. Contact us if you have such requirement.



Main technical parameters of vibrating screen separator :


Model

Sieve layer

Sieve obliquity
(°)

Sieve area(m2)

Vibrating power (r/min)

Double amplitude
(mm)

Processing capacity (m/h)

Motor power (kW)

Overall size (L×W×H)(mm)

Weight
(kg)

2YK1224

2

15

2.88

970

6-8

20-120

5.5

2673×2382×2027

1750

YK1235

1

15

4.2

970

6-8

20-150

5.5

3710×2464×1450

1729

2YK1235

2

15

4.2

970

6-8

20-150

7.5

3705×2393×2339

2476

3YK1235

3

15

4.2

970

6-8

20-150

7.5

3621×2521×2581

3158

4YK1235

4

15

4.2

970

6-8

20-150

11

3510×2521×2830

4160

YK1545

1

17.5

6.75

970

6-8

20-150

11

4904×3044×2179

3319

2YK1545

2

17.5

6.75

970

6-8

20-150

15

5042×3090×3165

5308

3YK1545

3

17.5

6.75

970

6-8

20-150

15

4972×3090×3395

5915

4YK1545

4

17.5

6.75

970

6-8

20-150

18.5

4915×3155×3804

7260

YK1548

1

17.5

7.2

970

6-8

20-150

11

5190×3044×2186

3319

2YK1548

2

17.5

7.2

970

6-8

20-150

15

5265×3140×3208

5284

3YK1548

3

17.5

7.2

970

6-8

20-150

15

5200×3090×3440

6186

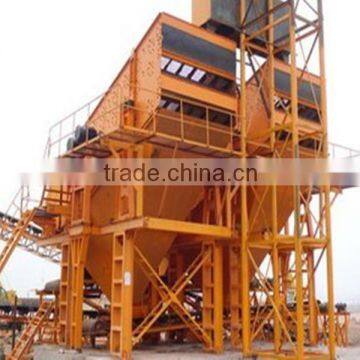

                                            Vibrating screens in our working photos




Before sale:

Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.

1.Select the right model of equopment for customer.

2.Our service engineers would be ready for service 24 hours per day.

3.We will answer your qustion any time

4.Provide training for customer's technician





During sale:

Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.

1.Inspect before accept the products sent by us.

2.Assist our customer to make a constrution plan.



After sale:

1.The installation and testing of equipment.

2.We would be ready for service 24 hours per day to accept  your  feedback .

3.we would provide maintaince if our product have problem.





Leadtime: About 15-25 days after receiving advanced payment

Packing: normal export container or required
