Home > Products > Ball grinding machine > Advanced and Energy Saving Raw Material Mill

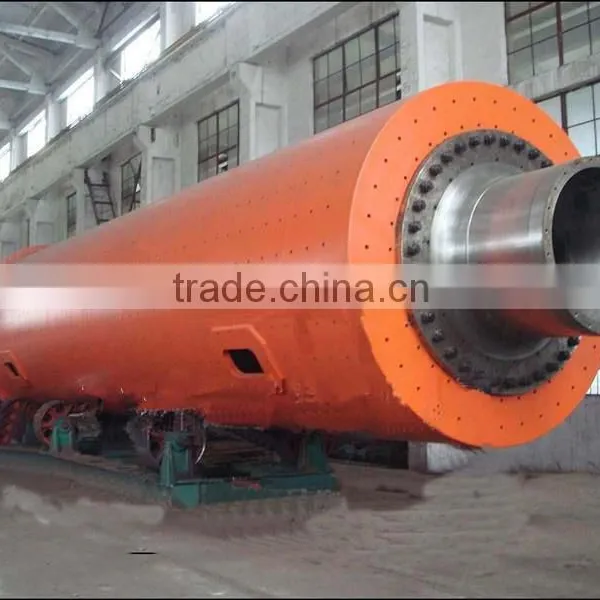

Advanced and Energy Saving Raw Material Mill
- 45 Set / Sets per Month
- any port in china
- T/T L/C D/P D/A
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 380-3550 | Capacity(t/h): | 12-210 | Place of Origin: | Henan, China |
Brand Name: | YinHai | Model Number: | 2.4*8m | Dimension(L*W*H): | 8000*2400*2400 |
Weight: | 54-360T | Certification: | ISO9001:2008 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Raw material mill:1.Reliable condition
2.Good wear-resistance
3.High efficiency
4.Low power consumption
Advanced and Energy Saving Raw Material Mill
Raw material mill Application:
Raw ore mill is the key equipment for grinding after the crush process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Raw material mill structure:
Raw ore mill is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Raw material mill technical parameters:
Product Specification (m) | Milling form | Transmission form | Gear box | Motor power(kW) | Production capacity (t/h) | Total weight (t) | |
Model | Speed reduction ratio | ||||||
Φ1.5×5.7 | Open flow | Brim | ZD40 | 3.55 | 130 | 4.5-6 | 25.8 |
Φ1.83×6.4 | Open flow | Brim | ZD60 | 4.5 | 210 | 7.5-15 | 43 |
Φ2.2×6.5 | Circle flow | Brim | ZD70 | 5 | 380 | 14-26 | 60 |
Φ2.2×13 | Open flow | Central shaft | D110 | 35.5 | 630 | 29-34 | 114 |
Φ2.4×6 | Circle flow | Brim | 2HD-700-10 J | 5.53 | 380 | 15-38 | 72 |
Φ2.4×10 | Circle flow | Brim | 2D80-4 | 6.435 | 570 | 25-45 | 118 |
Φ2.4×13 | Open flow | Central shaft | D110 | 35.5 | 800 | 40-50 | 130.6 |
Φ2.6×13 | Open flow | Central shaft | MFY100 | 19.5 | 1000 | 43-54 | 158 |
Φ3×9 | Circle flow | Central shaft | D125 | 41.2 | 1000 | 32-68 | 167 |
Φ3.2×9 | Circle flow | Brim | MBY900 | 7.1 | 1250 | 62-65 | 195 |
Φ3.8×7.5 | Circle flow | Brim | JDX900 | 5.6 | 1600 | 80 | 233 |
Φ4.6×10+3.5 | Circle flow | Central shaft | JQS3550 | 15.1 | 3550 | 190 | 415 |
Φ4.6 10.5+3.5 | Circle flow | Central shaft | JQS3550 | 15.1 | 3550 |
Before sale:
Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.
1.Select the right model of equopment for customer.
2.Our service engineers would be ready for service 24 hours per day.
3.We will answer your qustion any time
4.Provide training for customer's technician
During sale:
Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.
1.Inspect before accept the products sent by us.
2.Assist our customer to make a constrution plan.
After sale:
1.The installation and testing of equipment.
2.We would be ready for service 24 hours per day to accept your feedback .
3.we would provide maintaince if our product have problem.
Leadtime:
15-30 days after confirm the order
Panking:
export standard
Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.
How about the quality of our machine?
Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery.
How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.
How about the after-sale service of your company?
Our engineer is aviliable to installation machine overseas.
The guarantee period of our machine is one year.
Spare parts will supply at any time.
Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
