ASTM Gr5 Titanium Coils for Radiators Best Price Manufacture
US$ 22 - 45
/ Kilogram
10 Kilograms(Min. Order)
- Shanghai for titanium coil
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | dongfu | |
| Model Number | DFTi-065 | Material | Gr1, Gr2, Gr5, Gr7, Gr9 etc | |
| Outer Diameter | 3~314 | Length | 10~8000mm | |
| Standard | ASTM B338,B337 B 861 B862 | Application | Airplane, Ship, Bicycle, Motorcycle, Auto, Medical, Chemical, etc | |
| Technique | Seamless | Grade | titanium | |
| Wall Thickness | 0.2~10mm | Inside Diameter | 9~125mm |
Product Description
ASTM Gr5 titanium coils for radiators best price manufacture
Product Description
Titanium main features:
The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.
Specifications:
Product Name | ASTM Gr5 titanium coils for radiators best price manufacture |
Standard | ASTM B348, ASTM B381, ASTM F67, ASTM F136, ASTM F1295, ASTM F1713, ASME, AMS |
Material | Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr11, Gr12, etc |
| Length <8000mm |
Size(mm) | Diameter 3-314 |
Section shape | Round/ Square |
Certification | ISO9001 |
Surface Treatment | Polished |
Feature | 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity |
Advantages | 1. First-class technonlgy and the rigorous work attitude 2. We have the most professional team to solve all kinds of the problems you have during the manufacturing process and provide your pressure vessel drawing for free if you need. 3. Low purchasing cost for repetitive orders in the long-run as our performance/price ratio is higher. 4. Never be backorder. 5. Excellent customer service policies on repair/exchange/refund. 6. Serving both domestic and overseas customers with various requirements for 22 years. |
Chemical Composition:
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | Bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | Bal |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | Bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0/.6~0.9 | Bal |
Mechanical Properities:
Grade | Tensile Strength (Min)
| Yield Strength (Min) | Elongation in 4D, Min, % | Reduction of area, Min, % | ||
| Kis | Mpa | Kis | Mpa |
|
|
Gr1 | 35 | 240 | 25 | 170 | 24 | 30 |
Gr2 | 50 | 345 | 40 | 275 | 20 | 30 |
Gr3 | 72.5 | 500 | 55 | 380 | 18 | 30 |
Gr4 | 85 | 586 | 70 | 483 | 15 | 25 |
Gr5 | 130 | 895 | 120 | 828 | 10 | 25 |
Gr7 | 50 | 345 | 40 | 275 | 20 | 30 |
Gr9 | 90 | 620 | 70 | 483 | 12 | 25 |
Gr11 | 35 | 240 | 25 | 170 | 24 | 30 |
Gr12 | 70 | 483 | 50 | 345 | 18 | 25 |

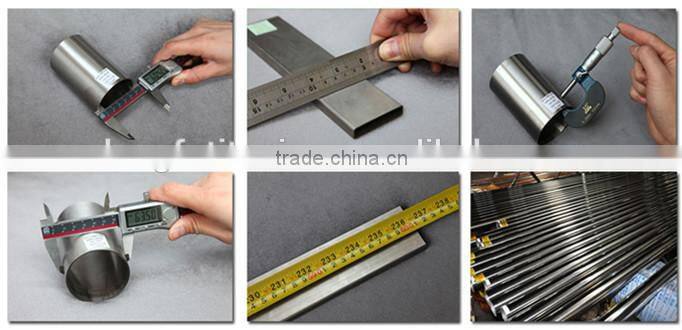

Quality Control
1. Surface Inspection
2. Outside/Inside Diameter Inspection
3. Thickness/Length Inspection
4. Width Inspection
5. Air pressure
6. Straightness
7. Expanding/Flattening Test
8. Packing Check
9. Marking
2. Outside/Inside Diameter Inspection
3. Thickness/Length Inspection
4. Width Inspection
5. Air pressure
6. Straightness
7. Expanding/Flattening Test
8. Packing Check
9. Marking

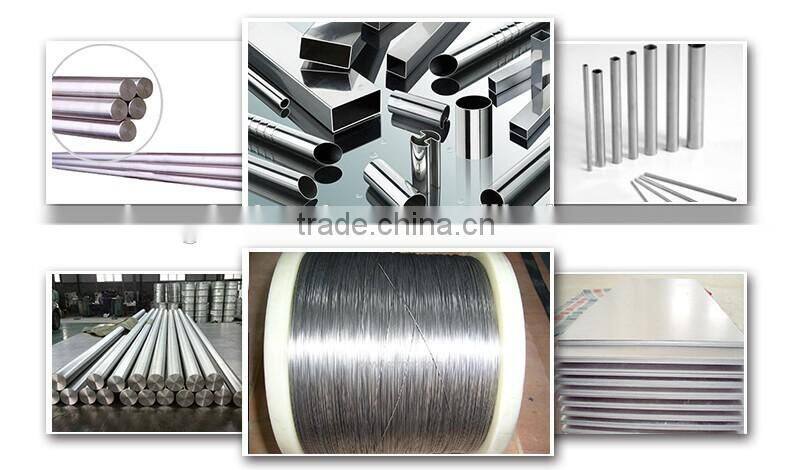

Production Showing
Packaging & Shipping
PACKING
1. Wooden case, free of fumigating;
2. Steel pallet + wooden case (above 1 ton/case);
3. Available upon the client's request.
1. Wooden case, free of fumigating;
2. Steel pallet + wooden case (above 1 ton/case);
3. Available upon the client's request.
SHIPPING
1. Air express (FedEx, UPS, DHL & EMS);
2. Air transport;
3. Sea transport;
4. Sea-land transport
1. Air express (FedEx, UPS, DHL & EMS);
2. Air transport;
3. Sea transport;
4. Sea-land transport
