033 U Shape Drinking Straw Making Machines

033 U Shape Drinking Straw Making Machines photo-1
033 U Shape Drinking Straw Making Machines photo-2
033 U Shape Drinking Straw Making Machines photo-3

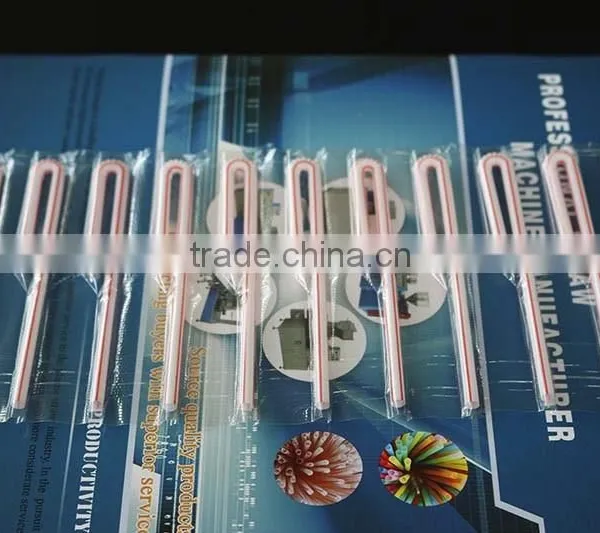

033 U Shape Drinking Straw Making Machines photo-4
033 U Shape Drinking Straw Making Machines photo-5
033 U Shape Drinking Straw Making Machines photo-6
US$ 10,000 - 10,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Jiexuan
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name Jiexuan
Model Number JX033
Voltage 50-60HZ, 220v / 380v
Power(W) 2.2kw
Dimension(L*W*H) 2000*1800*1600mm
Weight 800kg
Certification ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

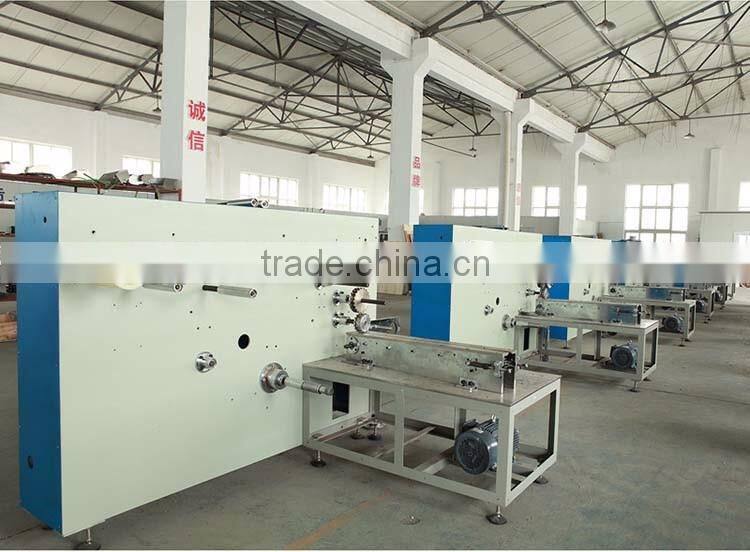

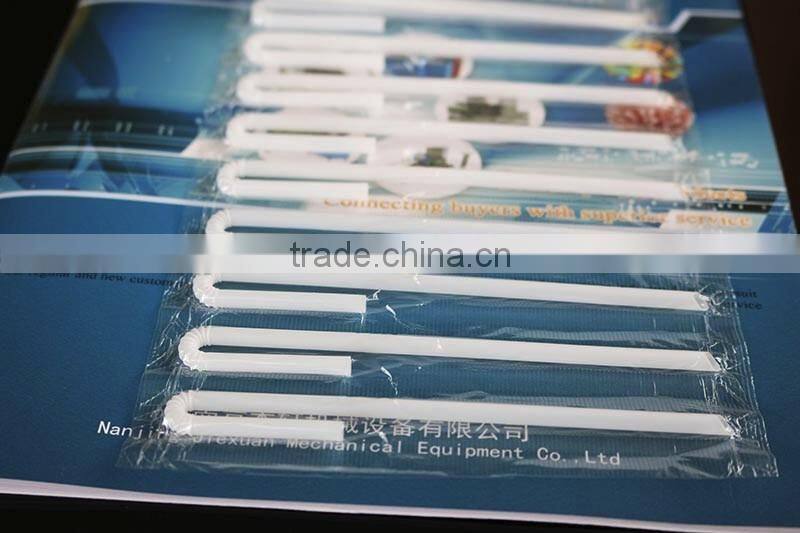

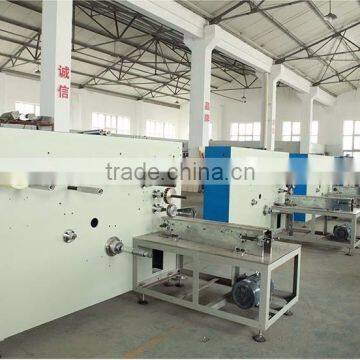

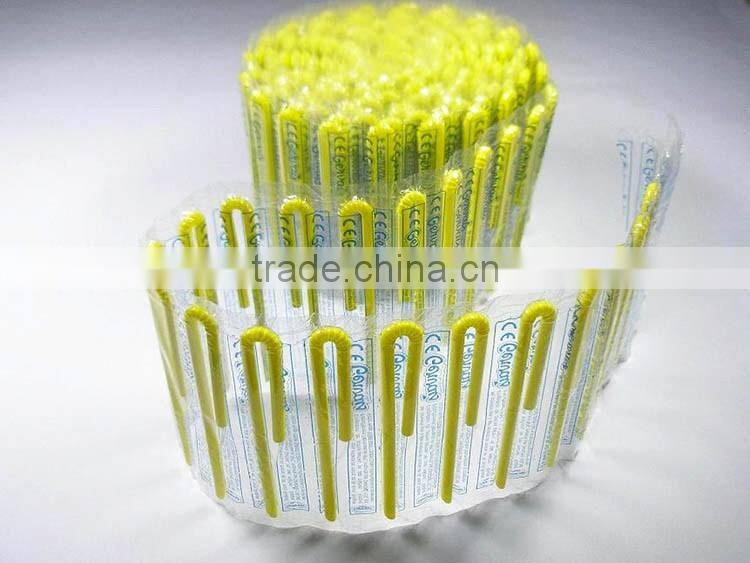

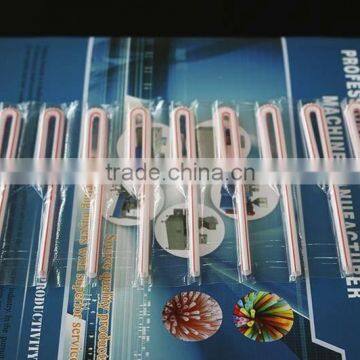

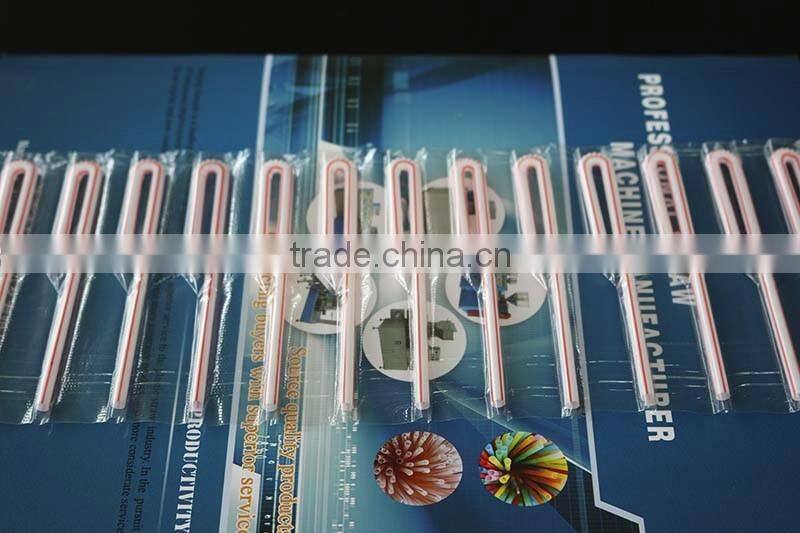

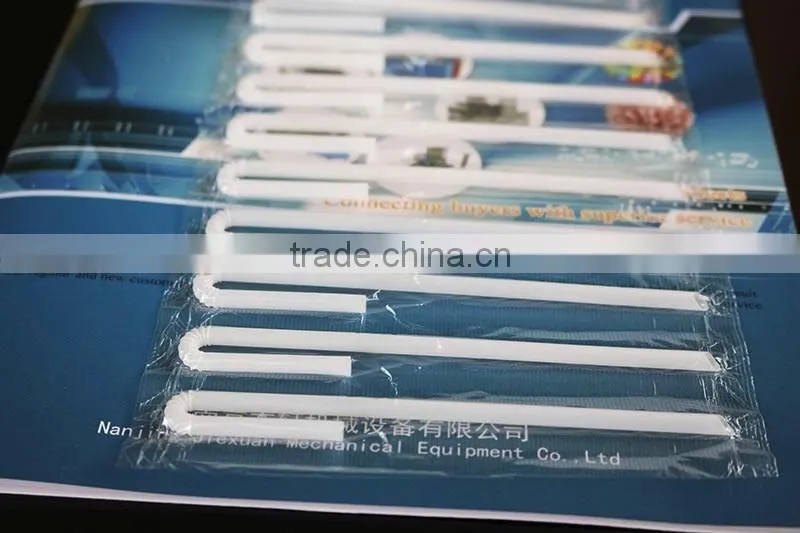

  033 U shape drinking straw making machines can bend flexible drinking straw to U shape and automatically pack it in a row (like a belt). This machine is composed of a driving motor, film release and reel devices, driving system, etc.

Characteristics



  1. Packing of single straw in a row and the completion of bending, filling and packing straws at a time.
  2. Automatic counting and product quantity preset.
  3. High and adjustable packing speed.
  4. Automatic stop in the event of fault.
  • The machine can ensure all sharp ends are packed in the same direction.
  • All rollers are manufactured from aluminum.
Parameters



Driving motor

2.2kw controlled by frequency converter

Capacity

600~700pcs/min

Packing method

four-sided sealing

Specifications of the packing film



Material

BOPPfilm

Shape

Roll

Roll diameter

Max:280mm

Inner diameter of paper tubes

76mm

Width of film

Max:180mm

Thickness of film

20μ-30μ

Packing shape

22mm(pitch)× 100~140m(width)

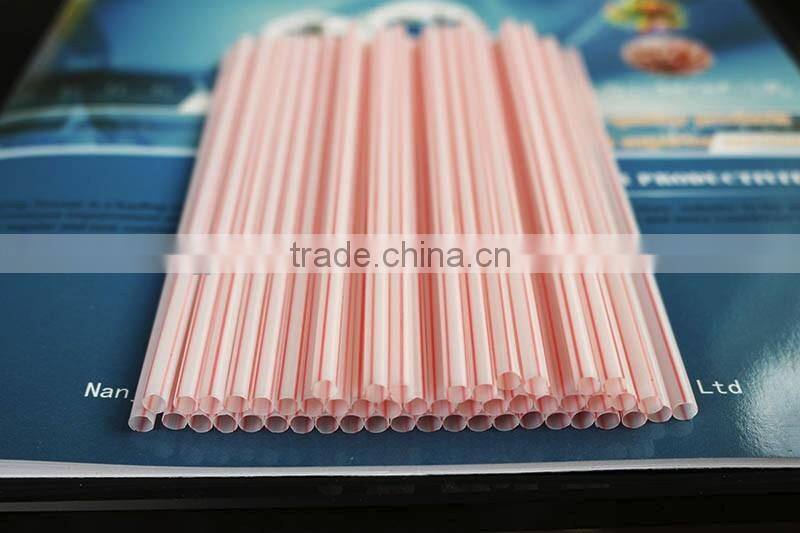

Straws specifications



Inner-diameter

3.8mm /4.2mm

Thickness

0.18~0.25mm

Length of U-shape model



90mm(small type)105mm(middle type), 128mm(big type)

Other specifications are customized

Machine size(L×W×H)

2m * 1.8m*1.6m

Machine weight

1100kg

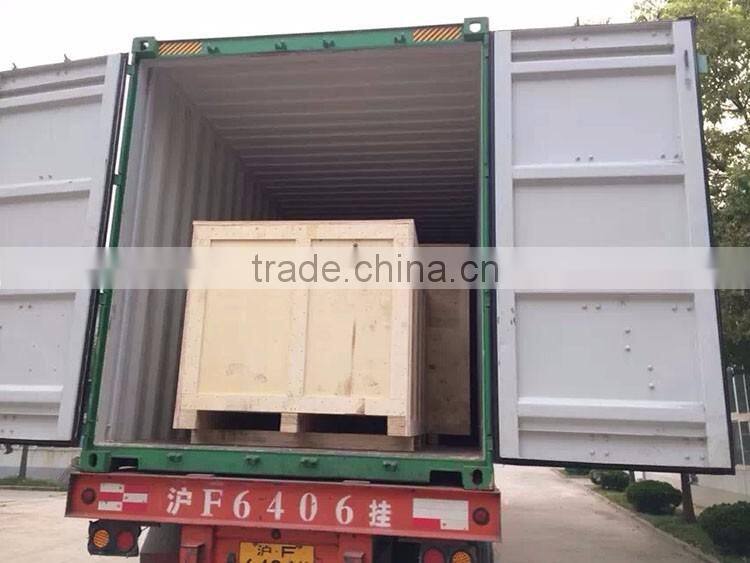

Packaging & Shipping

033 U shape drinking straw making machines033 U shape drinking straw making machines033 U shape drinking straw making machines033 U shape drinking straw making machines033 U shape drinking straw making machines033 U shape drinking straw making machines033 U shape drinking straw making machines

033 U shape drinking straw making machines

Our Services



 1. Quick and professional pre-sales and after-sales services;

 2. Factory quality controlled services;

 3. Products fast delivery guarantee.

FAQ



1. Q: Are you a factory or trading company?

    We are factory and also have our own trading company.

2. Q: What makes you different from others?

    (1)We are lifeful company and aims to build long terms business with you.

    (2)We promise to reply to you within 8 hours - sometimes even immediately.

    (3)As a manufacturer, we can ensure the delivery time and after-sales services.

3. Q: How can I know the status of my order?

    We will send you infoand photos at different production stage of your order.

    You will get the latest information in time.

4. Q: Where is your factory located at? How can I visit there?

    Our factory is located in Nanjing, Jiangsu Province, China,
    (1)You can fly to Nanjing Lukou Airport directly. We can pick you up at the airport;
    (2)You can fly to Shanghai Pudong International Airport then come to Nanjing by

         High-speed railway, then we will pick you up in the railway station.
