Place of Origin Guangdong, China
Brand Name RION
Model Number DMI820

Specifications

1.Strong scalability & industrial reliability ;
2 .Absolute cost advantage;
3.Auto temperature drift compensation ;
4. IP65

Industy Using Touch Screen Inclinometer Big Measuring Range With High Accuracy 0.003deg mm/deg Dual Units Switch

                               Industy Using Touch Screen Inclinometer Big Measuring Range With High Accuracy 0.003deg mm/deg Dual units Switch







General Description :

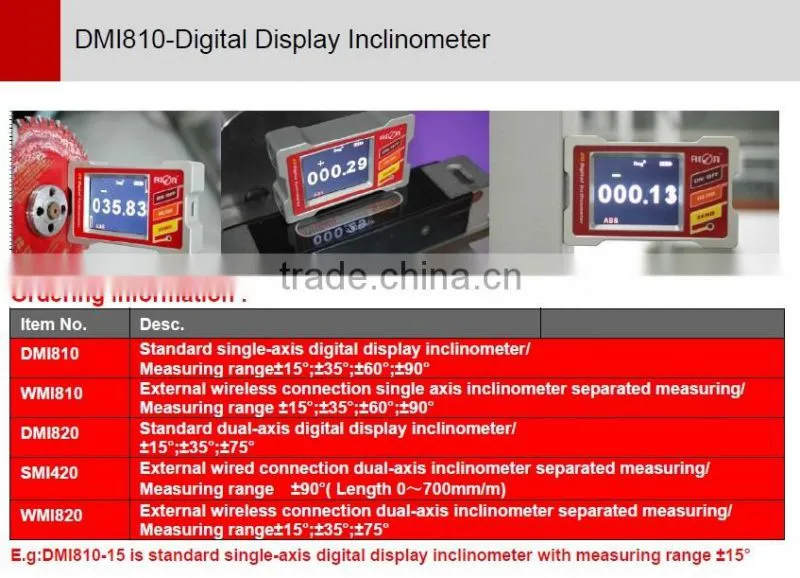

DMI810 is a digital display inclinometer which took RION company three years to develop professional for
various industy angle controling and measuring.The core of this product is using the micro-mechanical control
principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement
process,and then to use RION patent interleaved and temperature compensation model algorithm to play
absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments
measurement with the long-term stability and repeatability. DMI810 is a uniaxial 90deg measurement, resolution
0.001 °,the highest accuracy <0.005 degree full-scale,fast response, stable data, products specially designed
for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured

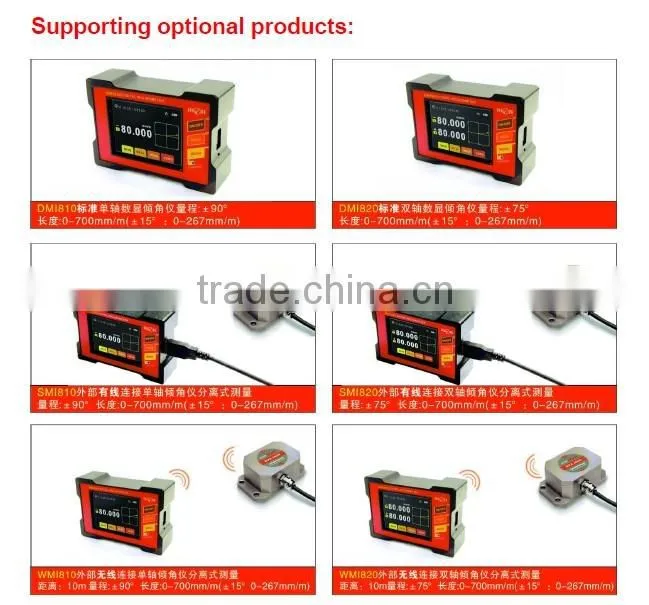

and using normally,very convenient to use, In addition, supporting the selection of DMI810 (SMI810) with the use
of separate measurement, used in combination with the Division HCA series tilt sensor, the transmission mode
wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m,
the cable transmission standard 1 meter (can be customized long distance), DMI810 series has strong scalability,
convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute
competitive advantage in the international market !



Features:

  • Accuracy:<0.003°
  • Repeatability:0.003°
  • Angle resolution:0.001°
  • Measuring range:±90°
  •  User can set the alarm value by himself
  • Data store function
  • Absolute/Relative measurement can switch
  • Both sides and bottom can measure
  • Double benchmark strong magnet installation
  • Working Temperature : -10°~ +65°C
  • Auto-angle interleaved compensation function
  • Auto temperature drift compensation
  • User can calibrate ZERO by himself
  • Built-in rechargable industy battaries

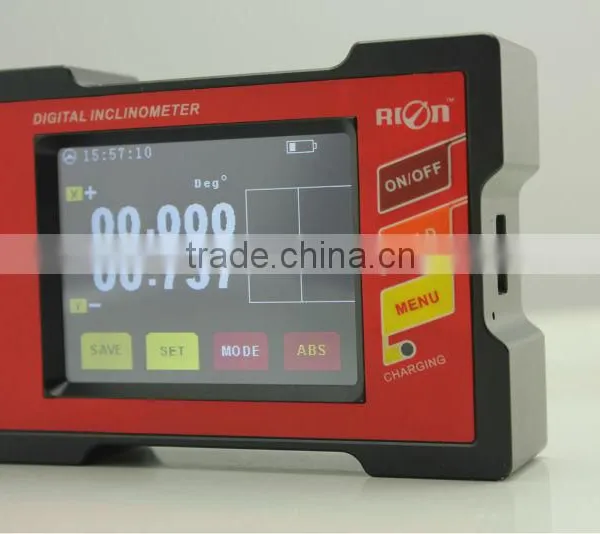

  • Night vision fours colors screen
  •  IP54protection class
  •  °/mm Dual units switch funciton
  • Filter frequency optional
  • Three kinds of measurement mode selectable (radian, angle, mm)



Application :

  • Building construction
  • Automobile four wheel testing
  • Road slope
  • Machinery installation
  • Piping installation
  • Industrial platform
  • Turntable testing
  • Pan unit angle detection
  • Production jig
  • Medical instruments
