DMI810 High Quality Touch Screen Universal Bevel Protractor Based On Micro-mechanical Electronic Principles

Specifications

DMI810 High Quality Touch Screen Universal Bevel Protractor Based On Micro-mechanical Electronic Principles

General Description

  DMI810 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.Thecore of this product is using the micro-mechanical control principle, dual-core measurement unit,can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI810 is a single axis 90deg measurement, resolution 0.001 °,the highest accuracy <0.005 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI810 (SMI810) with the use of separate measurement, used in combination with the Division HCA series tiltsensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Features:

• Accuracy:<0.003°
• Repeatability:0.003°
• Angle resolution:0.001°
• Measuring range:±15°,+/-30°
• User can set the alarm value by himself
• Data store function
• Absolute/Relative measurement can switch
•  Both sides and bottom can measure
• Double benchmark strong magnet installation
• Working Temperature : -10°~ +65°C
• Auto-angle interleaved compensation function
• Auto temperature drift compensation
• User can calibrate ZERO by himself
• Built-in rechargable industy battaries
• Night vision fours colors screen
• IP54protection class
•  °/mm/m Dual units switch funciton
• Filter frequency optional
• Three kinds of measurement mode selectable (radian, angle, mm)

Application :

• Building construction
• Automobile four wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments

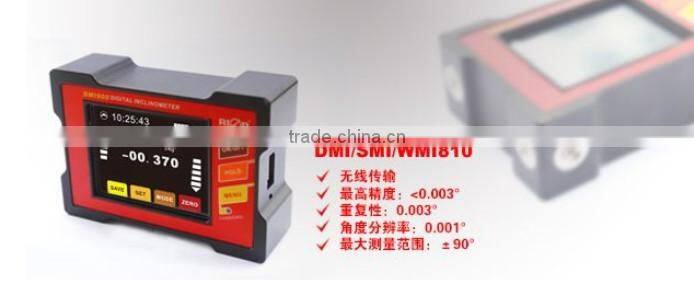

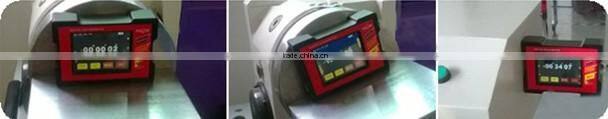

Product & Packing Photos :
