Home > Products > Touch Screen Digital Inclinometer > Touch Screen Digital Spirit Level in Dual axis Measuring With Best Accuracy 0.002deg Strong Magnetic Based
Touch Screen Digital Spirit Level in Dual axis Measuring With Best Accuracy 0.002deg Strong Magnetic Based
- 30000 Unit / Units per Month
- Shenzhen
- Credit Card
- DMI810 High Accuracy Digital Magnetic Spirit Level / Adjustable Spirit Level /Calibration Of Inclinometer , Data Hold and Alarm
- New Generation Digital Inclinometer With Touch Screen MADE BY Shenzhen Manufacturer
- MEMS Dual-axis Inclinometer Level Sensor, Digital Inclinometer Sensor With High Precision , Touch Screen Multi-functions
- DMI820 Touch Screen Clinometer /Touch Screen Slope Sensor/ Touch Screen Tilt Meter With High Reslolution 0.001 High Accuracy
- Touch Screen High Precision Digital Inclinometer Supplied by Shenzhen Manufacturer
- DMI820 New Generation Digital Angle Clination Inclinometer With Touch Screen Caibration Mulit-functional
Product Details
Place of Origin: | Guangdong, China | Brand Name: | RION | Model Number: | DMI820 |
Usage: | Magnetic Sensor | Theory: | Other, MEMS | Output: | Digital Sensor |
Packaging Details

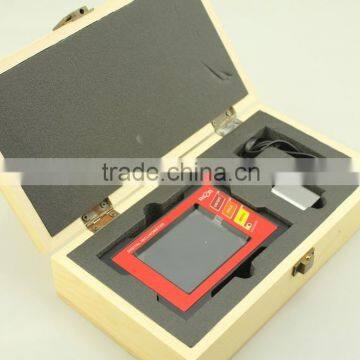

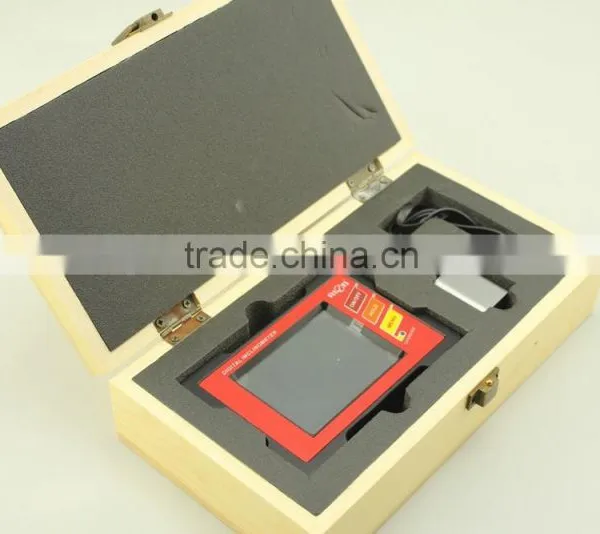

1pcs in wooden box with safe sponge inside
Product Description

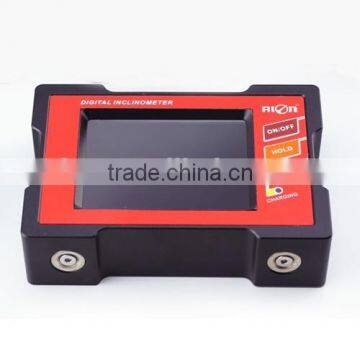

Touch Screen Digital Spirit Level in Dual axis Measuring With Best Accuracy 0.002deg Strong Magnetic Based
Features:
- Accuracy:<0.003°
- Repeatability:0.003°
- Angle resolution:0.001°
- Measuring range:±15°,+/-30°
- User can set the alarm value by himself
- Data store function
- Absolute/Relative measurement can switch
- Both sides and bottom can measure
- Double benchmark strong magnet installation
- Working Temperature : -10°~ +65°C
- Auto-angle interleaved compensation function
- Auto temperature drift compensation
- User can calibrate ZERO by himself
- Built-in rechargable industy battaries
- Night vision fours colors screen
- IP54protection class
- °/mm/m Dual units switch funciton
- Filter frequency optional
- Three kinds of measurement mode selectable (radian, angle, mm)

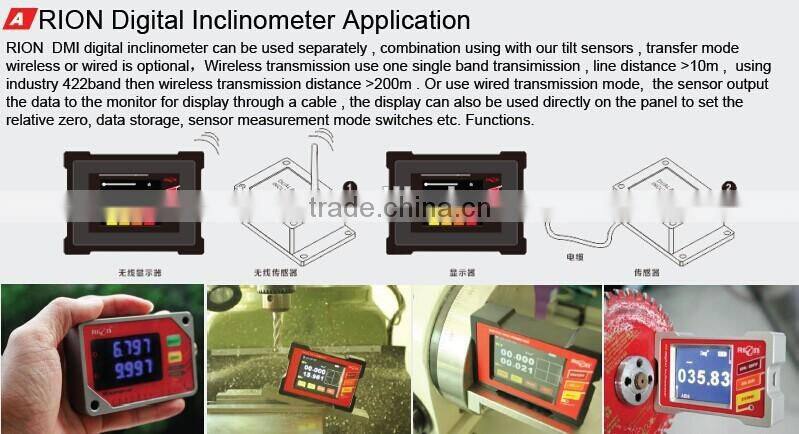

Application :
- Building construction
- Automobile four wheel testing
- Road slope
- Machinery installation
- Piping installation
- Industrial platform
- Turntable testing
- Pan unit angle detection
- Production jig
- Medical instruments
Technical Data
Angle Measuring range | DMI820:±15 ° ; | DMI820:±30 ° ; | ° |
MM measuring range | 267 | 577 | mm |
Meausring axis | Dual axis | Dual axis |
|
The highest meausring accuracy | <0.005 (Full measuring range) | <0.01 (Full measuring range) | ° |
Angle Measuring resolution | 0.001 | 0.001 | ° |
MM measuring accuracy | 0.1 | 0.2 | mm |
Three measurement mode selectable | radian, angle, mm measuring can be selected |
| |
MM measuring resolution | 0.02 | mm | |
LCD | 64 true colors night vision display screen | ||
LCD visible area size | L57.6*W43.2 | mm | |
Working temperature | -10°~ +70℃ | °/℃ | |
Working humidity | 85 | %RH | |
Power supply | 3.7VCharging Lithium battery | V | |
Ideal charging time | 3~4 | h | |
Battery sustainable charging times | 11 | h | |
Equipped with PC software | VC software | ||
Data output signal | USB1.1 | ||
Connect plug in | Standard 5Pin USB connector | ||
Shock resistance | 10g@11ms,3Times/Axis(half sinusoid) | g | |
Shock impact | 10grms,10~100Hz | g | |
Weight | 300 | g | |
Waterproof grade | IP54 | ||
Material | Metal | ||
Size | L105*W73*H27.1mm | mm |
Related or Similar Products :
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
