Airplane Navigation Sensor1.High performance drift stability
2.Long life
3.Low noise,Light weight
4.Excellent vibration res
Reliable Airplane Navigation Sensor Low Price
Technical Data
| Heading | |
| Measuring range | +-180 ° |
| Measuring accuracy(RMS)@25°C | <2 ° |
| Resolution | <0.1 ° |
| Tilt angle | |
| Measuring range | +-180 ° Roll; +-90 ° Pitch |
| Measuring accuracy (RMS)@25°C | <±1.5°(Dynamic),<±0.2°(Static) |
| Resolution | <0.1° |
| Gyroscope | |
| Measuring range | ±2000°/sec |
| ZERO bias stability@25°C | <200°/hr |
| Resolution | <0.1°/sec |
| Bandwidth | 40Hz |
| Accelerometer | |
| Measuring range | ±2G |
| Resolution | <10mg |
| Bandwidth | 37Hz |
| Magnetometer | |
| Measuring range | ±4gauss |
| Resolution | <2.5mgauss |
| Bandwidth | 50Hz |
| Electonic connection | |
| Power supply | DC 3.3-5V |
| Power consumption | 26mA(Typical value) |
| Output interface | UART(3.3V LVTTL) and USB(EVM) |
| Working temperature | -25°C~85°C |
| Storage temperature | -40°C~100°C |
| MTBF | ≥50000 hours/ time |
| Shock proof | 100g@11ms,3Times/Axis( half sinusoid ) |
| Anti-vibration | 10grms,10~1000Hz |
| Protection class | IP65 |
| Connector | 4 Pins air-plug socket, match with 1 M cable |
| Weight | 80g(without cable) |

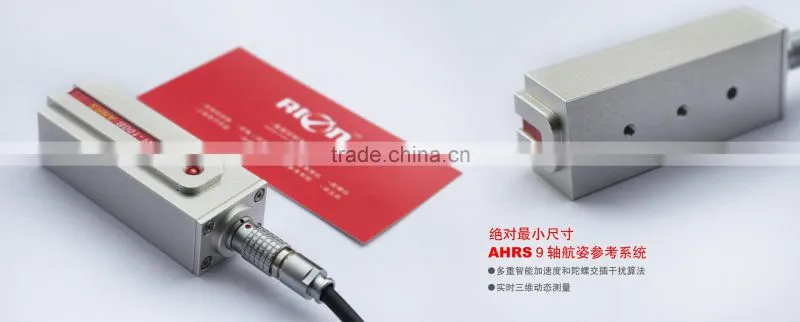

AH100B is a high performance AHRS (Mini AHRS) with low price, can be widely used in aircraft model , unmanned aerial vehicles, robots and other high homeostasis electromechanical devices. The device through collecting sensor data and fusion kalman filter, output real-time gesture data, because of using three-axis accelerometer and three-axis magnetic sensor to assist the three-axis gyroscope and temperature compensation algorithm technology, making the product to achieve full posture excellent stability and instantaneity, it is widely used in all kinds of sports attitude monitoring fields. The product not only can output attitude data, throught modifying the system parameters,but also can output the raw data of sensor like Physical quantities, quaternion, etc , meanwhile can modify the system running period to facilitate a variety of interfaces , use flash IAP (in application program) technology , according to the user needs, to keep the user's parameters after power off can still remember, in favour of user's secondary development.
Features
- Intergrated nine axis sensor and temperautre sensor
- Multiple intelligent acceleration and gyro cross interference algorithm
- High performance drift stability
- Low noise
- Light weight
- Long life, strong stability
- Highly cost-effective
- Excellent vibration performance
- 50Hz updated rate
- Compact and lightweight design
- TTL/RS232 output optional
- Wide temperature working:-40 ~ +85°
- DC+5V power supply
- Real time 3D dynamic measurement
Application
- Military & Industry
- Navigation
- Car Navigation
- Platform stability
- The human body to capture
- Remote control helicopter
- Truck mounted satellite
- Industry control
- Robot
- 3D Virtual reality
- Ship electronic needle error compensation related to tilt
- Instrument equipment
- GPS combination
- Camera steady
Product working principle

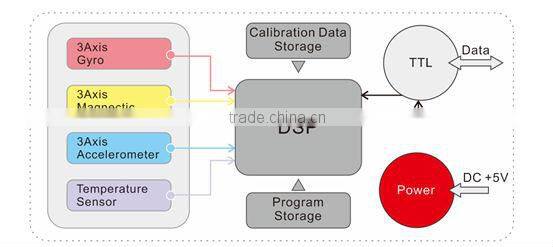

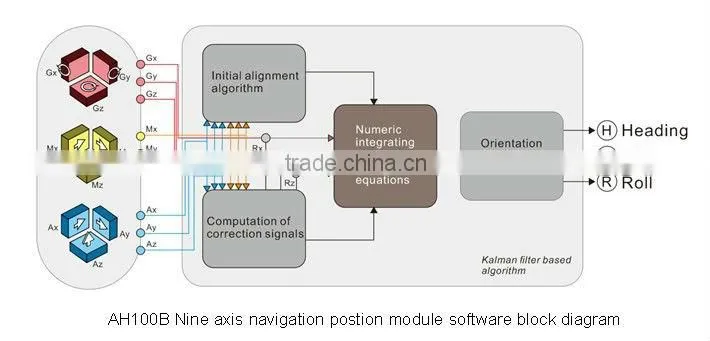

AH100B AHRS integrated three-axis gyroscope, three-axis accelerometer, three-axis magnetometer, gyroscope right attitude combined with dynamic compensation algorithms, initial posture angular acceleration correction principles, and modify then determine the gyro in the horizontal direction (pitch and roll angles) of the drift, finally computing solutions the motion vector azimuth, pitch angle and roll angle through nine axis arithmetic.

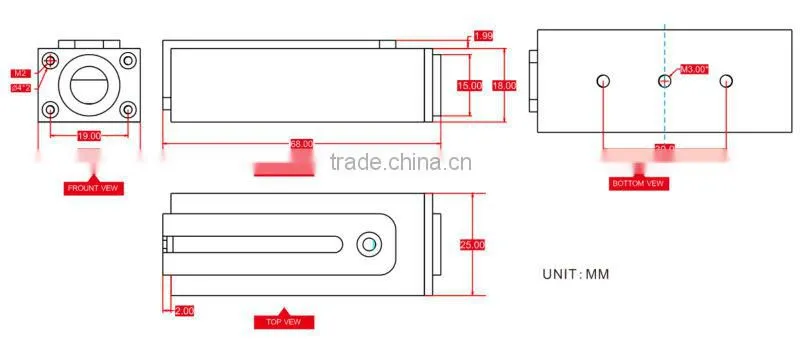

Dimension
Mechanical Parameters

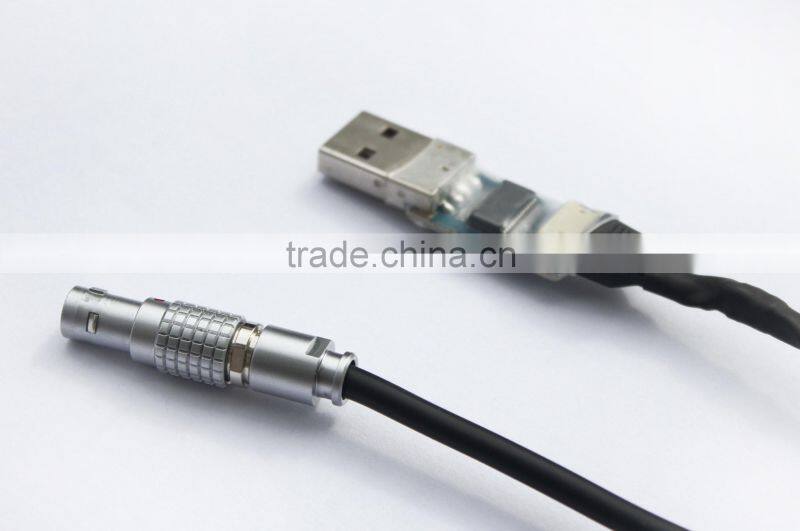

- Connectors:waterproof air-plug socket with USB debugging cable
- Protection glass:IP65
- Enclosure material :Aluminum Oxide
- Installation :2*M3 or 3*M3 screws
Production installation notes
Please follow the correct way to install tilt sensor, incorrect installation can cause measurement errors, with particular attention to the "surface", "line":
1)The Sensor mounting surface and the measured surface must be fixed closely, smoothly, stability, if mounting surface uneven likely to cause the sensor to measure the angle error.
2) The sensor axis and the measured axis must be parallel ,the two axes do not produce the angle as much as possible.
If there is error for installation, our supporting PC software can be used for calibration six sides, to achieve the best use effect!

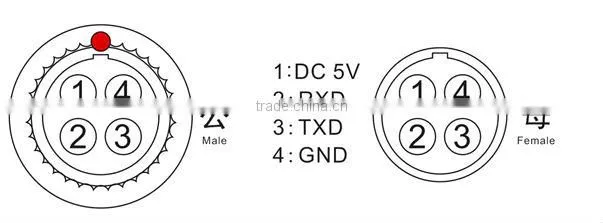

Electronic connection

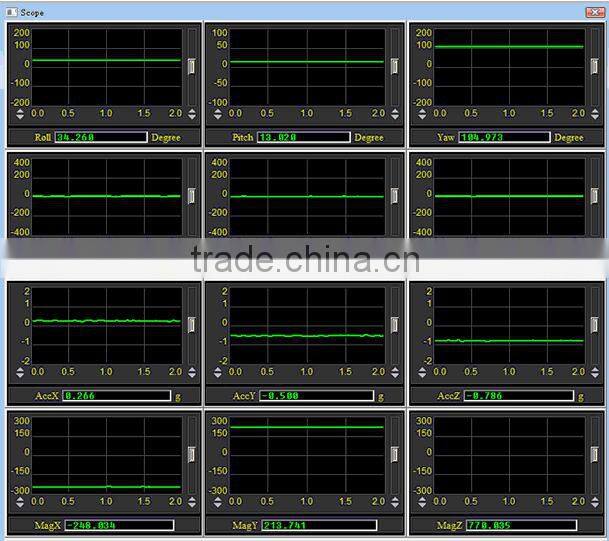

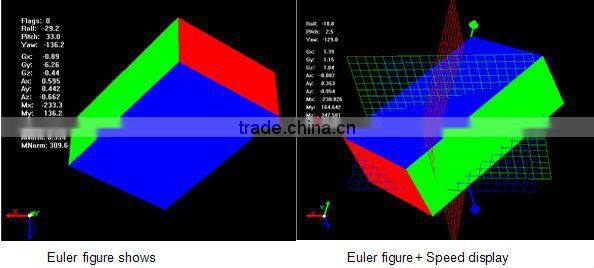

PC software
