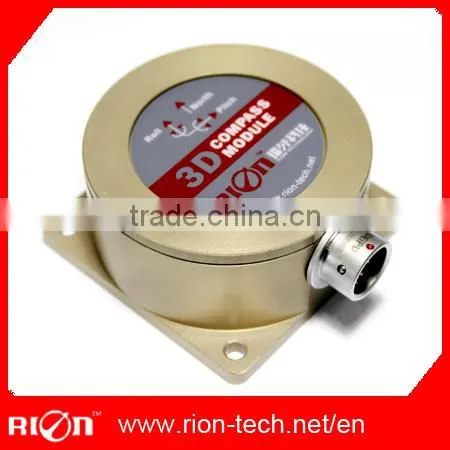

Patented Technology 3-axis Accelerometer+Compass sensor Manufacturer Price

Cartons

Patented Technology 3-axis Accelerometer+Compass sensor Manufacturer Price

Features:

• Heading Accuracy: 0.5 degrees
• Heading resolution:0.1 degrees
• pitch accuracy:0.08 degrees
• Pitch resolution:0.01 degrees
• Roll accuracy:0.08 degrees
• Roll resolution: 0.01 degrees
• Power supply:5V
• Current draw:29mA(Sleep mode:1mA)
• Maximum Dip Angle: ±90 degrees
• RS232/RS485/TTL Optional
• Small size: L50*49*15mm
• Small form factor Low power consumption
• Hard and soft iron correction with quality of calibration score
• Limited Tilt User Calibration
• Widely working temperature: -40-+85 degrees celsius
• Storage temp:-45-+125 degrees celsius

Applications:

• High performance ROV navigation
• GPS system integration
• Vehicle tracking
• Remote terrestrial antenna direction indicators
• Sonar targeting systems
• 3-axis magnetic field sensing
• Survey equipment
• Autopilot
• Satellite positioning Search
• Robotic systems
• Navigation system

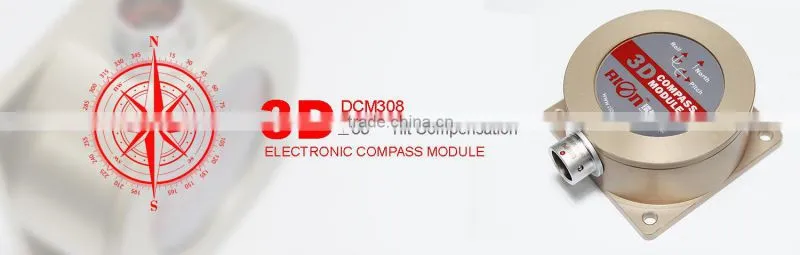

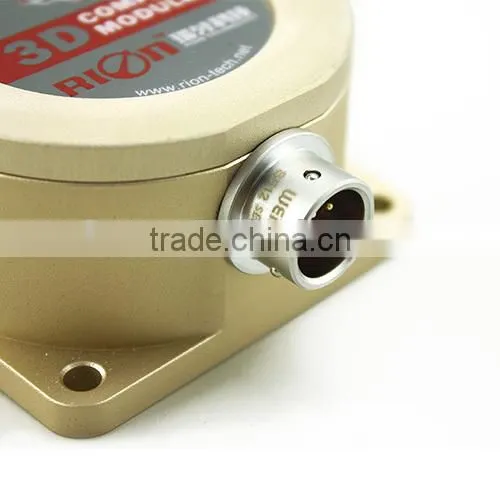

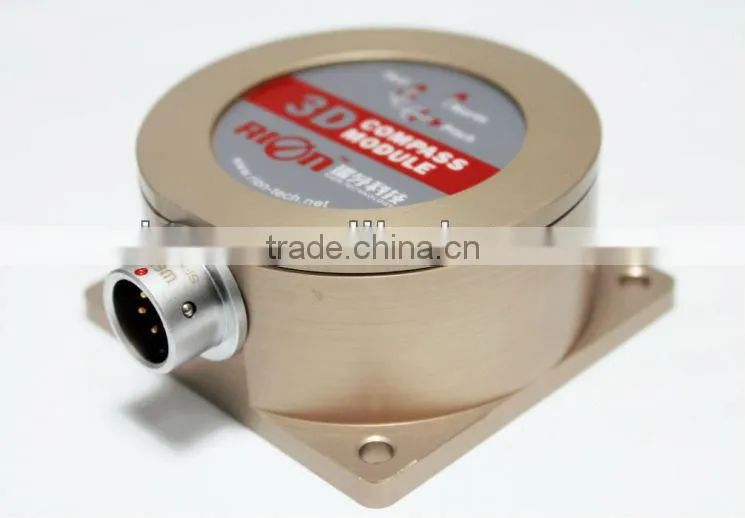

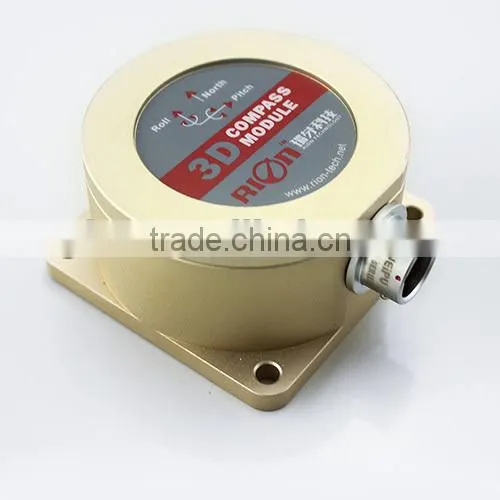

Product Show

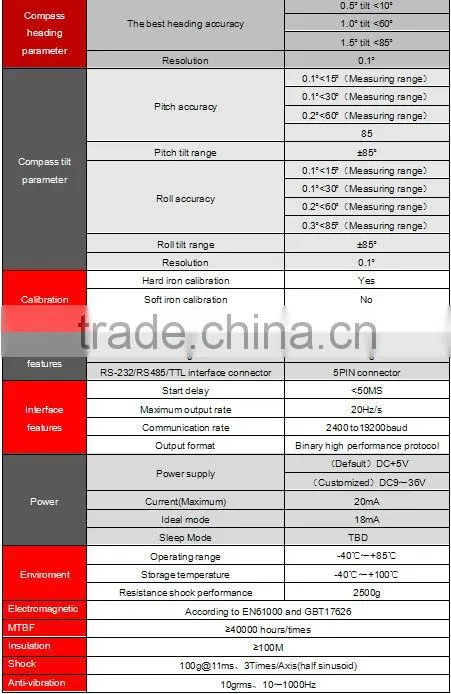

Electrical Characteristics

Ordering information

Dimension

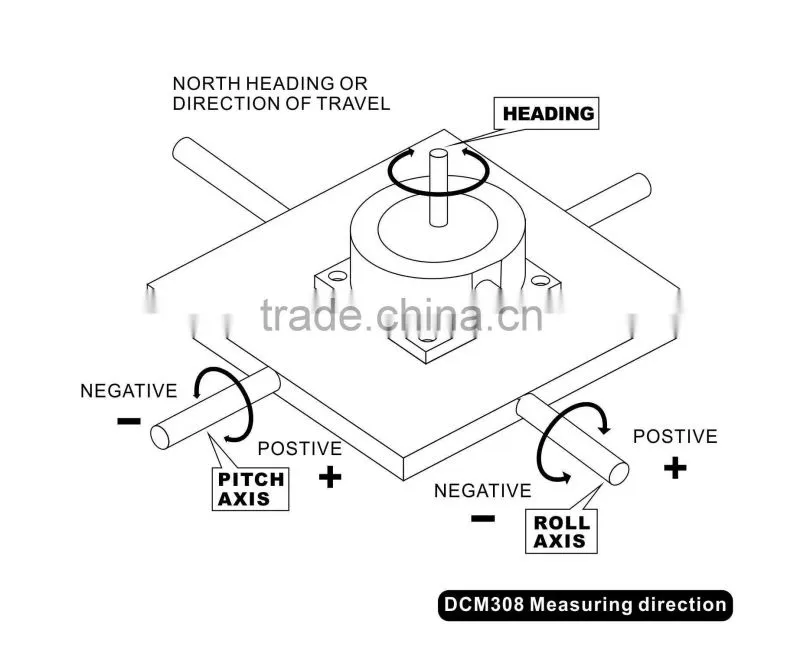

DCM308B Measuring Directions&Fix

The DCM308B 3D electronic compass azimuth is using geomagnetic principle, so it is very important to

select a minimum magnetic interference environment for installation positon. Please place and install the DCM308B away from the iron, magnets, engines and other magnetic objects as much possible as you can. Need control over 40CM distance(different magnetic interfere with the compass in different distance ) at least even there are these magnetic medium around . In order to ensure optimal measurement environment please must use the M4 anti-interference screws for installation .

Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.

Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.

You satisfaction is our mission.
