Inclination Alarm Sensor Switch Angle Tilt Level Control
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RION
Model Number:
LCA332A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Alarmed Tip Over Switch 9~36v InputNegotiableMOQ: 1 Piece -
Precision Inclinometer Switch With BuzzerNegotiableMOQ: 1 Piece
-
Dual Axis Canbus Inclinometer Auto for Industry MeasurementNegotiableMOQ: 1 Piece
-
Wireless Transmission High Precise Non-contact MEMS Wireless Inclination Monitor SystemNegotiableMOQ: 1 Piece
-
Handheld Tilt Switch Industrial Level ControlNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
RION
Model Number
LCA332A
Usage
Position Sensor
Theory
Other
Output
Switching Transducer
Specifications
Switch Angle1. High performance
2. alarm function
3. Stable & reliable
4. Customized
Inclination Alarm Sensor Switch Angle Tilt Level Control
Product Description
Technical info:
Measuring range |
±85 |
° |
Measuring axis |
X,Y |
|
Resolution |
0.05 |
° |
Absolute accuracy |
0.1 |
° |
Long-term stability |
0.05 |
|
Zero temp. coeffiecient |
-40~85° ±0.01 |
°/°C |
Temp. Sensitivity coefficient |
-40~85° ≤100 |
ppm/°C |
Power on time |
0.1 |
S |
Response time |
0.2 |
s |
Electromagnetic compatibility |
Per EN61000 and GBT17626 |
|
MTBF |
≥50000hours/time |
|
IR |
≥100mge |
|
Impact resistance |
100g@11ms,3 times/axis(half sinusoid) |
|
Anti-shock |
10grms,10~1000Hz |
|
waterproof |
IP67 |
|
cable |
1m, durable, grease proof, wide temperature, shield cable, 4 x 0.4 mm2 |
|
weight |
150g(exlude cable) |
|
Features:
- Dual-axis clination measurement
- Accuracy:please refer to the technical data
- RS232 series output
- Switch output(high-low level)
- Resolution : 0.01°
- Wide temperature working: -40~+85°C
- IP67 protection class
- Highly anti-vibration performance>2000g
- Direct lead calbe interface
- Level bubble “0” reference
- Customer can set alarm angle value by himself
- With setting 0° function
- Positive/negative direction output is optional
- DC 9~36V wide voltage input
- LED warming
Application:
- Engineering mechanical vehicles
- Rail-mobile monitoring
- Various engineering mechanical measurement of dip angle
- oil-well drilling equipment
- Radar detection of vehicle platform
- Underground drill posture navigation
- Gun Barrel angle measurement in early shooting
- Based on the angle direction measurement
- Satellite communications vehicle posture detection
- Shield pipe jacking application
- Ship’s navigation posture measurement
- Geological equipment inclined monitoring
- The intelligent excavator / crane / cranes / pile driver / drill machine / special vehicles / mine car / track car / fire truck / aerial vehicles / bridge machine

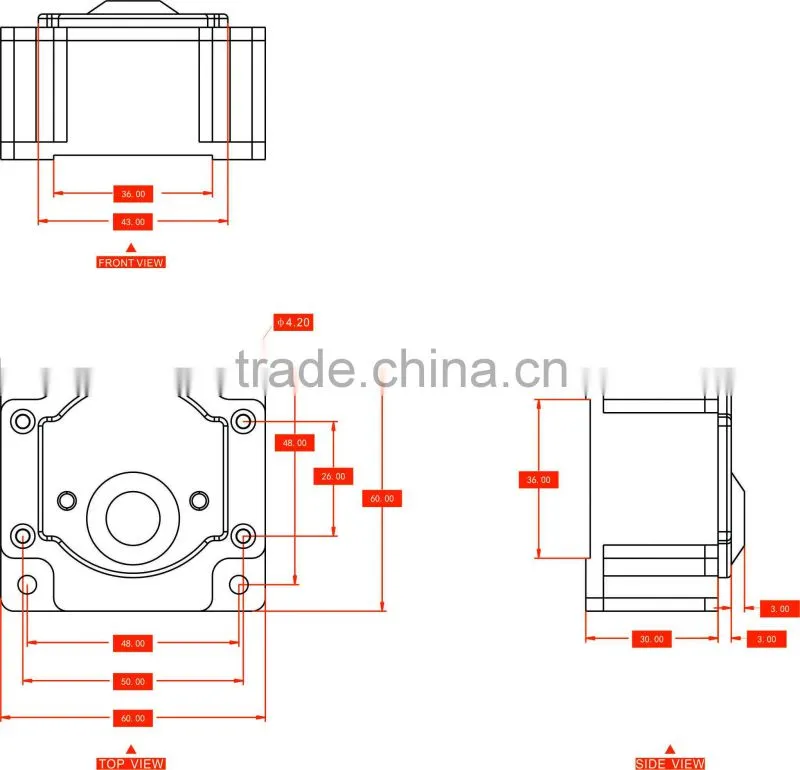

Dimension
