Specifications
2D Electronic Compass1. High performance
2. Industrial level
3. Stable & reliable
4. Customized

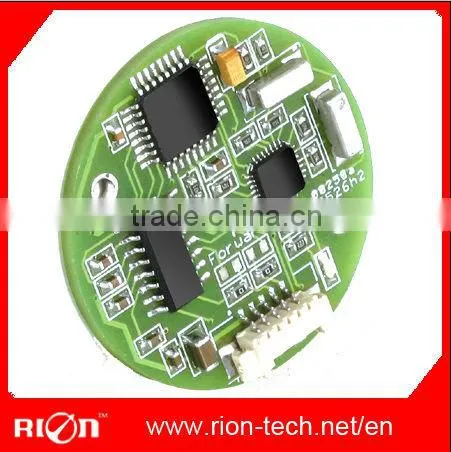

Heading Angle 2D Electronic Compass Low Power Consuming
The DCM230B is a 2D electronic compass, measuring heading 0 ° to 360 ° , using our patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass get the best results through the plane rotation of calibration method in the magnetic interference environment , because it is a plane compass , this product with excellent performance when to be used in the plane working environment , e.g the heading data will occur error if the tilt angle bigger than ± 5 ° this environment . DCM230B use RS232 or TTL level output interface, output baud rate is 9600bps, small size, low power consumption, strong practical applications and diversity application occasions, can accept customized based on any customer request.
Features:
Heading accuracy: 1° Heading measuring range :360°
Wide temperature working: -20°C~+70°C Size: L50×W42×H15mm
Standard RS232/RS485/TTL output interface Can accept other functions custom
With hard magnetic ,soft magnetic and inclination compensation DC 5V power supply
Application:
Satellite antenna search satellite Various robots
GPS integrated navigation Antenna servo control
Vehicle-mounted rearview mirror Tower crane control
Geomancy compass Various positioning integrated

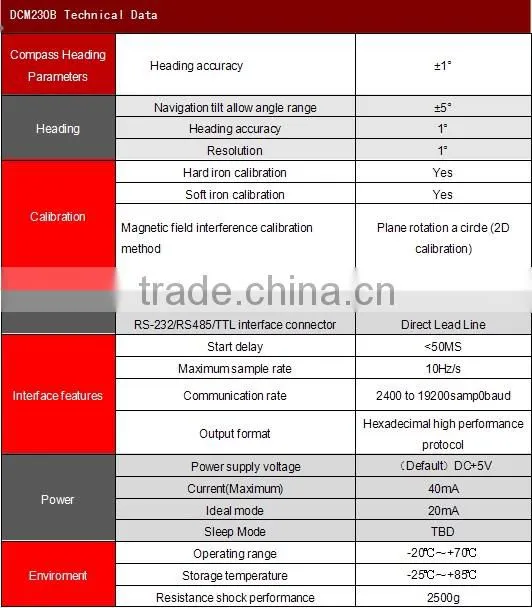

Technical Data
Product Function Introduction Order info:
Certificates & Honor
Packaging: carton with sponge
We will ship your order within 7 business days after we receive the full payment.
If you choose ship by DHL/UPS/FEDEX/TNT,it will take 3-5 work days; If you choose EMS ,it will take 5-7 work days.
we are solution expert, we can make as your own design,shape,size,color and any other requirements.Any time when you received the goods,you will find them very personalized in the target market.
Being a professional manufacturer of tilt sensor, vibration sensor, compass etc, we will provide service and technical support before, in the middle of and after sales.
We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
