Specifications
Electronic Protractor1. High performance
2. LCD backlight
3. Stable & reliable
4. Customized

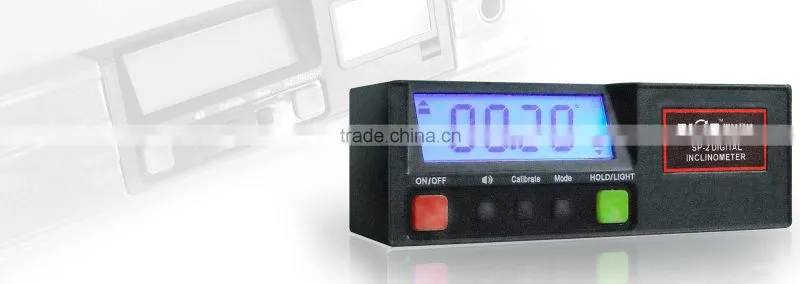

Mini Electronic Protractor with LCD Display Inclinometer Angle Meter 360 Degree Slope Angle
General Description
The new SP-2 digital display inclinometer (digital display level) which developed by Rion Company is a digital inclination (angle) sensor achievements into applications.The LCD digital display level inclinometer using new sensor technology to be developed which alternative to the traditional blisters level sensor, capable of connecting digital instrumentation. Adopts the LCD backlight digital display, can be used at night; realize the quantitative measurement of the angle of deviation from the horizontal plane ;Digitized, integrated, miniaturized instruments development trends; widely used in road works, mechanical measurement, construction, and many occasions where need to use gravity reference system ; The product has a electronic detection and digital display ,etc. characteristics, make our building supervising (inspection) industry farewell the angle measurement that followed the Millennium "to see the blisters for angle measurement ” . SP-2 digital inclinometer with small size, the accuracy can be maintained 0.1 degree within ± 60 measuring range , and currently widely used in construction and railway construction and other industries.
Features :
Accuracy:0.1° Repetitive error:0.07°
Power supply:9V PP3 alkaline battery With number hold function, convenient for record
Angle data response fast Angel compensation function
Working temperature -10°~ +45°C IP54 protection class
Stand-by time ::up to 700 days
Measuring display range:±90°(actual measuring range 360°)
90 secondes auto power-off , 0deg, 90deg, 180deg auto hint function

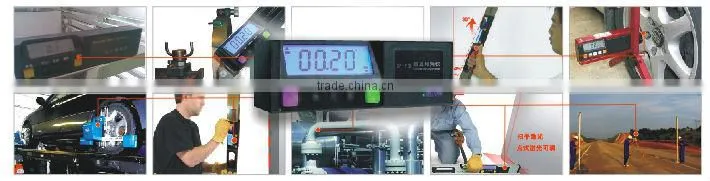

Application:
Building operations Vehicle maintenance Road grade
Machinery installation Pipe installation Industry platform
Measurement Direction
Technical Data
