High Precision Wireless Level Remote Level Control

Specifications

High Precision Wireless Level Remote Level Control

 Technical data

Description
ACA6100W is an inclinometer developed with wireless function, high accuracy and 360 degree wide measuring range by RION for industry filed. It is well-known that wide range and high accuracy could not be guarrantted at the same time for non-contact MEMS inclinometers, while there do need wide measuring range and high accuracy in some application, in order to solve this, RION, as a solution expert, developed this inclination meter. it could be installed on any position among 360 degree, guarantting both wide measuring range and high accuracy. ACA6100W is a whole temp. compensation high accuracy wide measuring range dual axis inclinometer, it could reach 0.005 degree accuracy and 0.0005 degree resolution. Output interface could be RS485, RS232. Wireless function adopt ISM full-wave band which meet global ISM frequency band communication standard, no need to apply for frequency point. Carrier frequency is between 400-480 MHz, the wireless transmitting distance could reach 200m in open field. Wireless acquisition card and professional multi-channel presentation software are available, by which multiple inclinometer could be managed.

Features

• Allowed mounting max angle range: +-180 degree
• Water-proof air plug
• IP67 protection level
• Single-axis inclinometer
• Size: L92 X W48 X H36mm
• High resolution: 0.0005 degree
• Wide voltage input: 9~36v
• Measuring range: +-1~+-15 optional
• Wide working temperature: -40~85 celscius degree
• High anti-vibration>2000g
• Output mode: RS232, RS485, RS422, TTL, CAN2.0, Wireless(optional)

Application

• Bridge&dam detaction
• Manipulator joint control
• Medical facilities angle control
• Precise machine tool level control
• Metro tunnel subsidence monitoring
• Underground drill posture navigation
• Geological equipment inclined monitoring
• Railway gauging rule, gauge equipment leveling
• Directional satallite communications antenna pitching angle measurement
• Products Range of RION
• Inclinometer---Single/Dual-axis; wireless, digital, current, voltage, CAN output type, etc.
• Digital inclinometer--- Single/Dual-axis, wireless and digital output; touch screen; backlight, etc.
• Tilt switch---switch/relay output; single/dual measuring axis; 1/2/3/4 ways output, time delay function, adjustable alarm value, etc.
• Electronic Compass--- 2D / 3D; RS232, RS485,TTL output, etc.
• Accelerometer--- 1-Axis , 2-Axis, 3-Axis; digital , current , voltage output, etc.
• Gyroscope--- 1-Axis , 2-Axis, 3-Axis; digital , current , voltage output, etc.
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Customized Products.

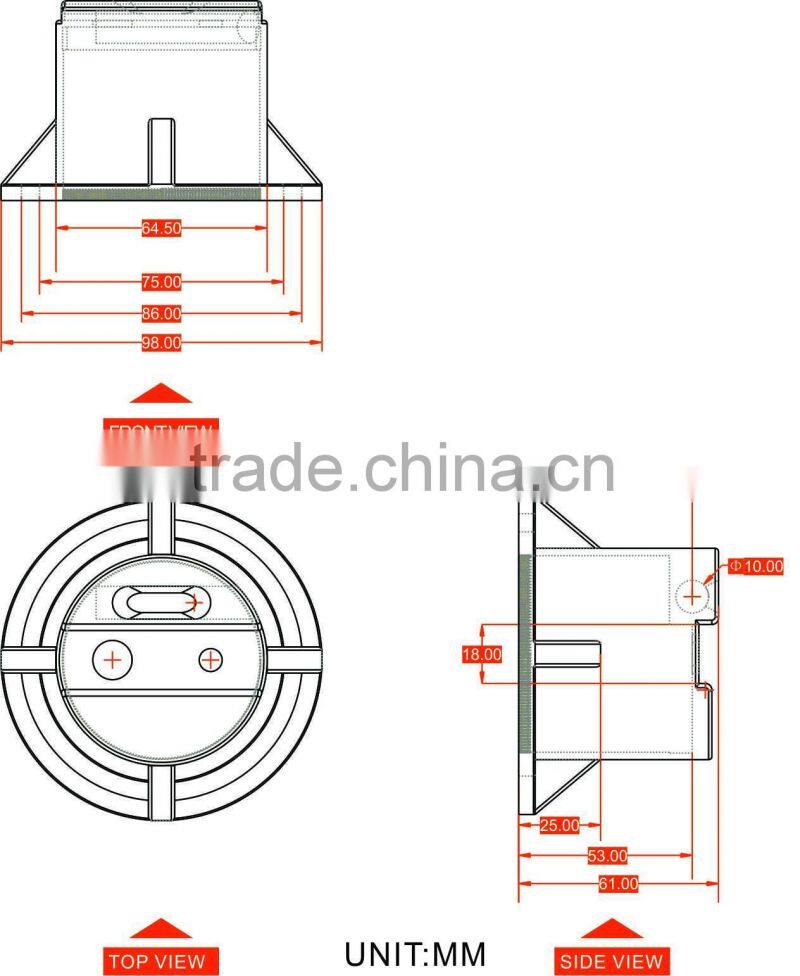

Dimension
