Specifications
Heading Sensor1. High performance
2. Industrial level
3. Stable & reliable
4. Customized
Navigation Low Cost Heading Sensor Fast Response
Technical Data
Compass Heading Parameters |
Heading accuracy |
±1° |
Heading |
Navigation tilt allow angle range |
±5° |
Heading accuracy |
1° |
|
Resolution |
1° |
|
Calibration |
Hard iron calibration |
Yes |
Soft iron calibration |
Yes |
|
Magnetic field interference calibration method |
Plane rotation a circle (2D calibration) |
|
Physical features |
Dimension |
L50×W42×H15mm |
Weight |
20g
|
|
RS-232/RS485/TTL interface connector |
Direct Lead Line |
|
Interface features |
Start delay |
<50MS |
Maximum sample rate |
10Hz/s |
|
Communication rate |
2400 to 19200samp0baud |
|
Output format |
Hexadecimal high performance protoco |
|
Power |
Power supply voltage |
(Default)DC+5V |
Current(Maximum) |
40mA |
|
Ideal mode |
20mA |
|
Sleep Mode |
TBD |
|
Enviroment |
Operating range |
-20°C~+70°C |
Storage temperature |
-25°C~+85°C |
|
Resistance shock performance |
2500g |
General Description

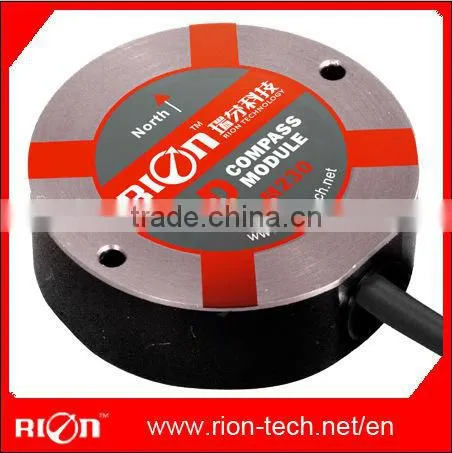

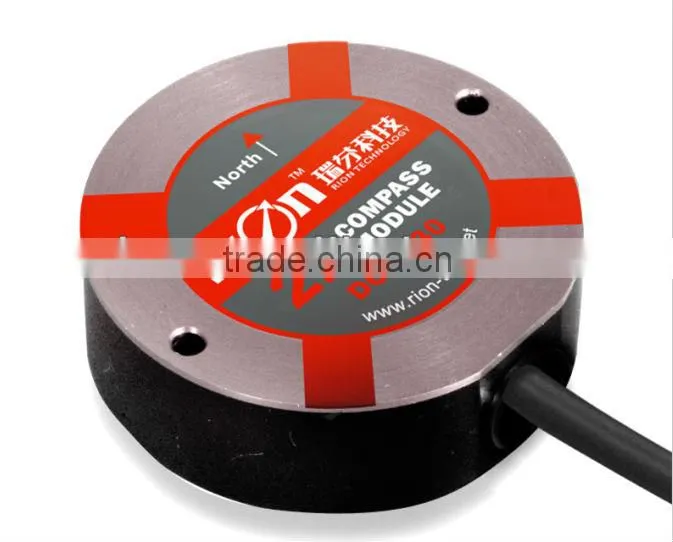

The DCM230B is a 2D electronic compass, measuring heading 0 ° to 360 ° , using our patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass get the best results through the plane rotation of calibration method in the magnetic interference environment , because it is a plane compass , this product with excellent performance when to be used in the plane working environment , e.g the heading data will occur error if the tilt angle bigger than ± 5 ° this environment . DCM230B use RS232 or TTL level output interface, output baud rate is 9600bps, small size, low power consumption, strong practical applications and diversity application occasions, can accept customized based on any customer request.
Features:
- Heading accuracy: 1°
- Heading measuring range :360°
- Wide temperature working: -20°C~+70°C
- Size: L50×W42×H15mm
- Standard RS232/RS485/TTL output interface
- Can accept other functions custom
- With hard magnetic ,soft magnetic and inclination compensation
- DC 5V power supply
Application:
- Satellite antenna search satellite
- Various robots
- GPS integrated navigation
- Antenna servo control
- Vehicle-mounted rearview mirror
- Tower crane control
- Geomancy compass
- Various positioning integrated
Product Show
Product Function Introduction Order info:
Electrical Connection
DCM230B Measuring Directions
Dimension

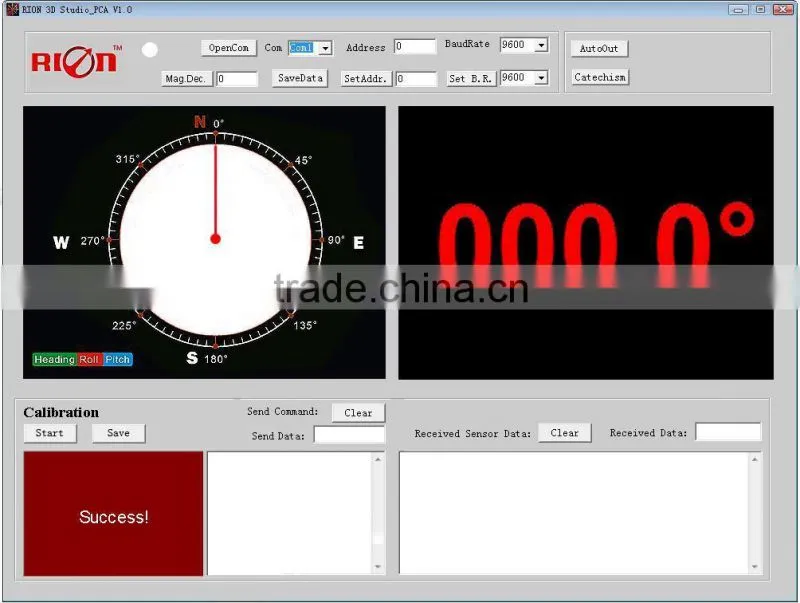

RION’s 2D Software
