Long Term Stability 0.01 Precise Slope Sensor Fast Response

cartons and sponge

Specifications

Precise Slope Sensor
1.Dual Axis currenttype
2.Resolution: 0.0001deg
3.IP68
4.DC 9~15V power

Long Term Stability 0.01 Precise Slope Sensor Fast Response

Features

• Dual-Axis Inclinometer
• Measuring Range :±1~±90° optional
• Size:L92×W48×H36mm
• Wide voltage input: 9~36V
• Wide temperature working: -40~+85°C
• IP67 protection class
• High Resolution: 0.001°
• Water-proof air-plug
• Highly anti-vibration performance >2000g Output mode RS232,RS485,RS422,TTL,CAN 2.0 are optional



Application:

• Engineering vehicles automatic leveling
• Bridge & dam detection
• Laser equipment position
• Medical facilities angle control
• Underground drill posture navigation
• Railway gauging rule , gauge equipment leveling
• Precise machine tool level control
• Geological equipment inclined monitoring
• Directional satellite communications antenna pitching angle measurement

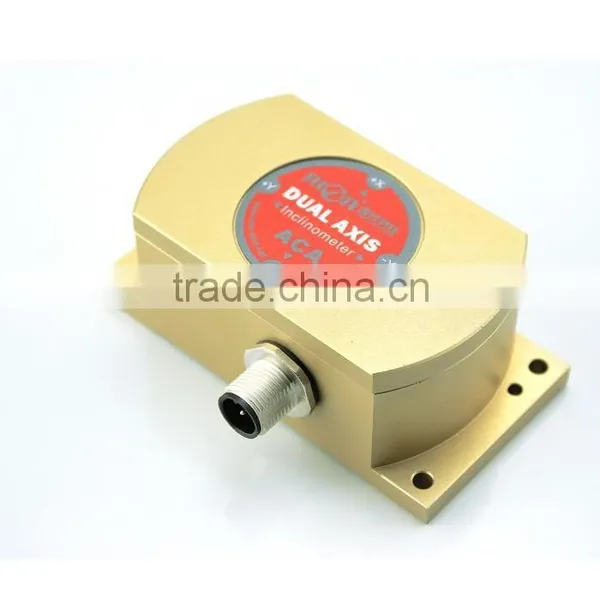

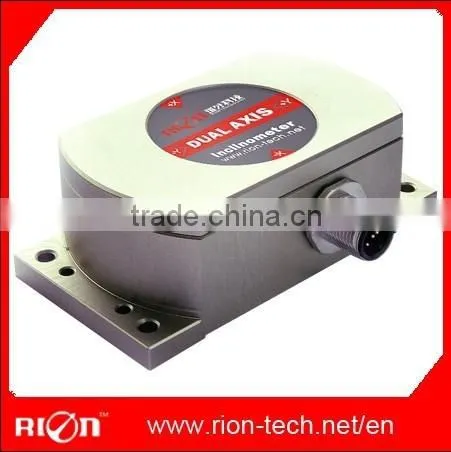

Product Show

Order information



Technical Data



Measuring range		±10	±30	±60	±90	°
Measuring range		±10	±30	±60	±90	°
Measuring axis		X,Y	X,Y	X,Y	X,Y
Resolution		0.001	0.001	0.001	0.001	°
Absolute accuracy		0.003	0.01	0.02	0.03	°
Long term stability		0.01	0.02	0.03	0.04
Zero temperature coefficient	-40~85°	±0.0008	±0.0008	±0.0008	±0.0008	°/℃
Sensitivity temperature coefficient	-40~85°	≤50	≤50	≤50	≤100	ppm/℃
Power on time		0.5	0.5	0.5	0.5	S
Response time		0.05	0.05	0.05	0.05	S
Output rate	5Hz,15Hz,35Hz,50Hz can be setting
Output signal response frequence	RS232/RS485/RS422/TTL/CAN
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100M
Shockproof	100g@11ms,Times/Axis(half sinusoid)
Anti-vibration	10grms,10~1000Hz
Protection glass	IP67
Cables	Standard 1M length,wearproof,wide temperature, Shielded cables4*0.4mm2 air-plug connector
Weight	150g(without cable )





Dimension



Measuring Directions&Fix
