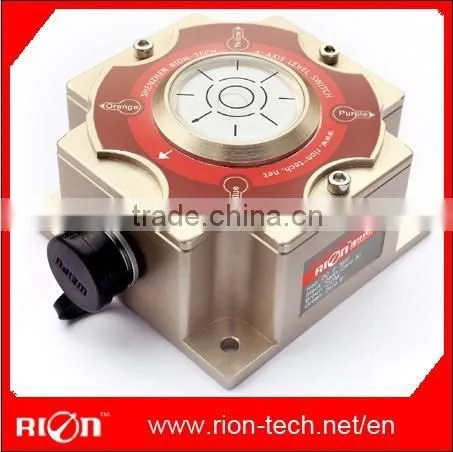

From Factory High Precision Tilt Switch 0.01 Long Stability

1pcs/box ,100pcs/ctn

Specifications

High Precision Tilt Switch
1. High performance
2. Wide voltage input
3. Stable & reliable
4. Customized

From Factory High Precision Tilt Switch 0.01 Long Stability

Technical Data:

Paremeter	HCA131A-P015	Unit
Measuring rang	±15	°
Measuring axis	X,Y
Resolution	0.01	°
Absolute accuracy	0.02	°
Long term stability	0.01
Zero temperature coefficient	-40~85°   ±0.002	°/℃
Sensitivity temperature coefficient	-40~85°   ≤100	ppm/℃
Power on time	0.1	S
Response time	0.2	s
EMC	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100M
Shockproof	100g@11ms,3Times/Axis(half sinusoid)
Anti-vibration	10grms,10~1000Hz
Protection glass	Direct lead cable IP67; Air-plug IP65
Cables	Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables 4*0.4mm2
Weight	130g(without cable)



Electronic Characteristics

Parameter	Condition	Min	Standard	Max	Unit
Power supply	Standard	9	12,24	36	V
Alarm output current				500	mA
Working current	No-load		40		mA
Working temperature		-40		+85	℃
Store temperature		-55		+125	℃



Features

• Dual-axis with 4-Axis level control
• Accuracy:please refer to the technical data
• RS232 series output
• Switch output(high-low level)
• Resolution : 0.001°
• Wide temperature working:  -40~+85°C
• IP67 protection class
• Highly anti-vibration performance>2000g
• Power light hint
• Customer can set alarm angle value by himself
• Can refer to the level bubble Setting 0° function
• Positive/negative direction output is optional
• DC 9~36V wide voltage input
• Air-plug or direct lead cable optional (Default direct Lead cable 1M)



Application

• Engineering mechanical vehicles
• Rail-mobile monitoring
• Various engineering mechanical measurement of dip angle
• oil-well drilling equipment
• Radar detection of vehicle platform
• Underground drill posture navigation
• Gun Barrel angle measurement in early shooting
• Based on the angle direction measurement
• Satellite communications vehicle posture detection
• Shield pipe jacking application
• Ship’s navigation posture measurement
• Geological equipment inclined monitoring
• The intelligent excavator / crane / cranes / pile driver / drill machine / special vehicles / mine car / track car / fire truck / aerial vehicles / bridge machine

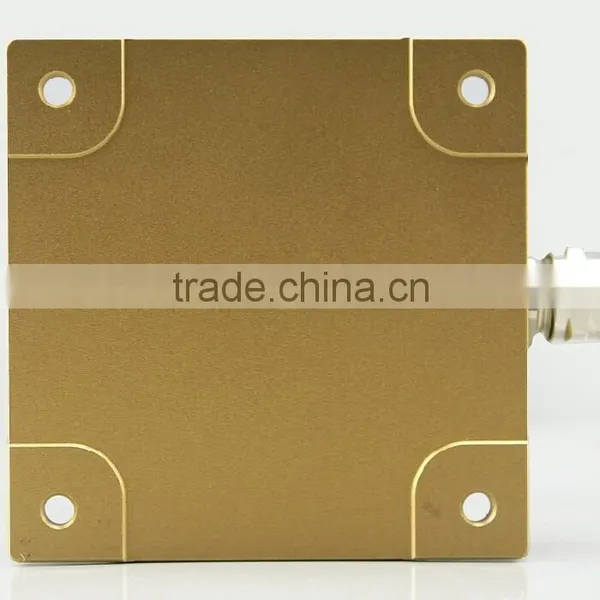

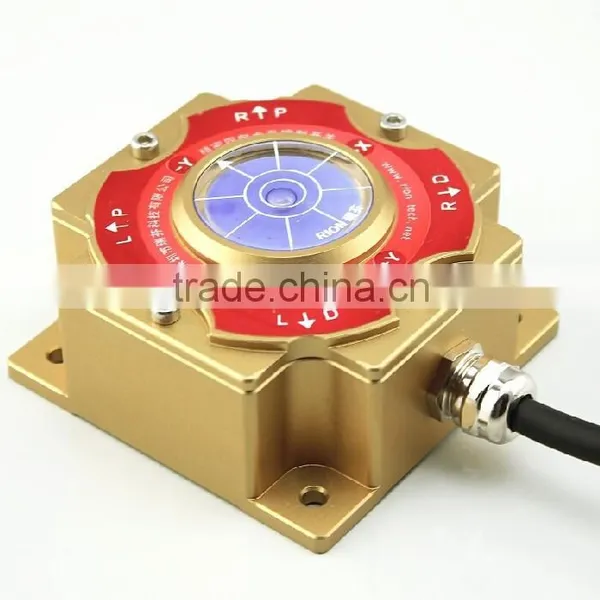

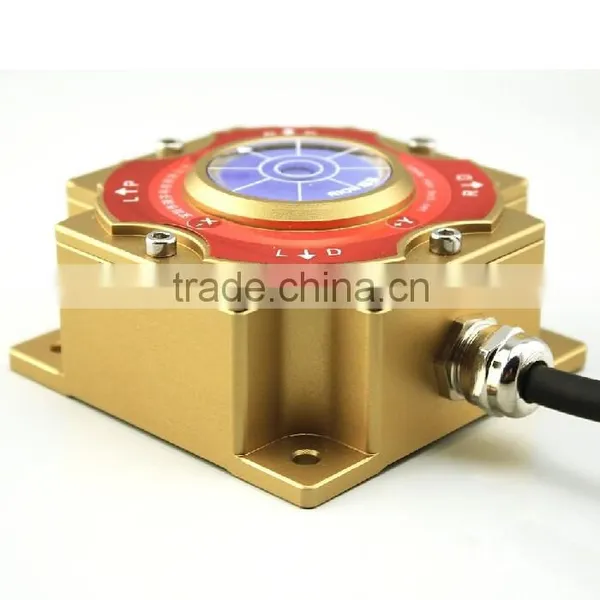

Product Show

Ordering information:



Dimension



Measuring Directions&Fix
