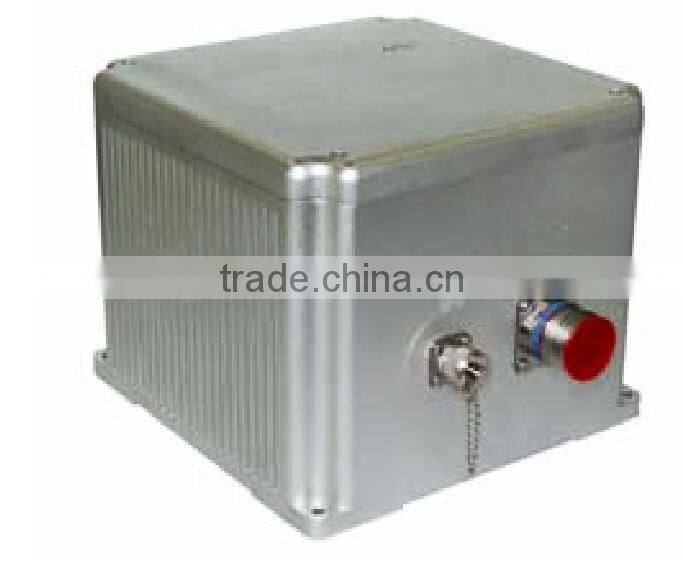

Powerful Synergistic Guidance Underground Navigation Sensor
- 10 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
- Inclination Safety Inclination Alarm Sensor for Vehicle Safety
- High Performance Dynamic Measurement IMU Output 3D Position Data
- High Sensitive Inclination Detector Sensor Slope Detecting Instrument
- Super High Precision Inclination Detecting Instrument Sensor Low Cost Factory Price
- Very Cheap Inclination LCD Readout Full Range
- Patented Electronic Heading Sensor Compass Measuring Heading 0 to 360 Degree
Product Details
Place of Origin: | China | Brand Name: | Rion | Model Number: | GI210 |
Usage: | Other, Inertial sensor | Theory: | Other | Output: | Digital Sensor |
Packaging Details
1pcs/box
Product Description
Specifications
Underground Navigation Sensor1. integrated INS/GPS
2. low cost and light
3. vibration and EMI resistance
4.differential GPS
Powerful Synergistic Guidance Underground Navigation Sensor
Technical data
System Accuracy | Heading 1 | ≤0.1 deg (1 δ) | |
Horizontal Attitude 1 | ≤0.06 deg (1 δ) | ||
Position 1 2 | Horizontal | <2m (1 δ) | |
Altitude | <4m (1 δ) | ||
Velocity 1 | ≤0.02 m/s (1 δ) | ||
No GPS Signal (Pure INS) | Heading | ≤0.05 deg @ 60 s | |
≤0.1 deg @ 1.5 hr | |||
Horizontal Attitude | ≤0.005 deg @ 60 s | ||
≤0.03 deg @ 1.5 hr | |||
Device Main Parameter | Gyro | Range | ±300 deg/s |
Bias Stability | ≤0.1 deg/h | ||
Bias Repeatability | ≤0.1 deg/h | ||
Accelerometer | Range | ±10 g (customizable) | |
Bias Stability | ≤0.06 mg | ||
Bias Repeatability | ≤0.06mg | ||
GPS | 16 collateral channel,L1 1575.42MHZ, Acceleration: 4g, vibration: 6g, time transmission precision: 50ns
| ||
Filtering Mode(customi-zable) | Air Mode | Air speed compensation | |
Water Mode | Doppler compensation | ||
Vehicle Mode | Mile meter +GPS compensation
| ||
Interface | Power | 9~36 VDC, ≤3.5 W @12 VDC | |
Electrical | RS232/RS422 | ||
Baud rate | 115200 bps 115200 bps
| ||
Environmental | Operating Temperature | -40°C ~ +60°C | |
Storage Temperature | -45°C ~ +70°C | ||
Vibration | 6 g @ 20~2000 Hz | ||
Shock | 30 g, 11 ms, 1/2 Sine | ||
Physical | Size | 151×120×101 mm | |
Weight | ≤3 Kg |
Mile meter +GPS compensation
Description

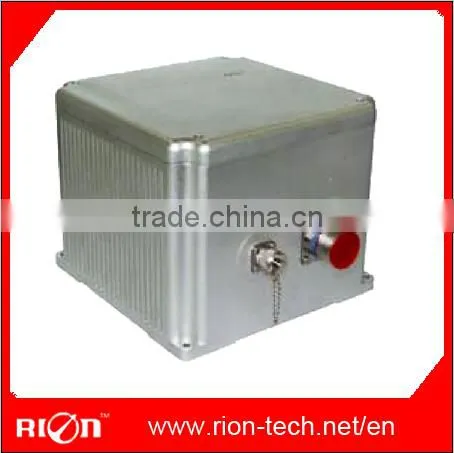

RION-GI510 Tightly integrated system applies tight integration technology to combine high sensitivity, professional level, multi-channel single frequency carrier phase and pseudo range data of GPS receiver with high accuracy quartz accelerometer and FOG based Inertial Measurement Unit (IMU). The system achieves small size, light weight and good performance-price ratio.
RION-GI510 navigation system provides attitude information of horizontal attitude and heading, provides positioning information of longitude, latitude and height, also provides 3D acceleration and angular rate, etc. It can be extended to GLONASS and further improve its measurement accuracy and applicability by assisting with speedometer and altimeter sensors etc. The extended system can be widely applied in ground, marine as well as aviation areas to provide powerful synergistic Guidance, Navigation & Control (GN&C).
Features
- Tightly integrated GNSS/INS;
- Low-cost , small size and light weight;
- Complete sealed rugged design to protect against harsh environment;
- Vibration and EMI resistance;
- Differential GPS capability (optional);
- GLONASS capability (optional);
- Extension with odometer or altimeter sensors (optional).
Application
UAV
Aviation
Platform Stabilization
Long-Haul Transportation
Marine Dynamics
Mining and Auto-Farming
Train & Container Tracking
Packaging: carton with sponge
- Delivery time: within 7 business days for common order after we receive the full payment
- Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.
Pre-sale service
- Evaluate your application, recommend the most suitable item;
- Make you fully understand the products, usage and maitenance;
- Answer all your questions, and let you have no doubt before make any decision;
- Adjust, revise or redesign our products to consist with the application(for customized service);
Sales service
- Recommend the best payment term and shipping term for you;
- Make official quotation and PI with company Stamp;
- Keep you posted about the products producing;
- Send exactly requried products on time;
- Provide tracking NO. and inform you when products leave factory and arrive destination;
Post-sale service
- Instruct products connection, installation and application;
- if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
- Keep tracking the products usage and ask for suggestion and advice.
Company
Certificates & Honor
FAQ
How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
What if no suitable item to be found: customerized service is available.
How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
Company Profile
RION Technology Co., Ltd. is located in a fantastic city - Shenzhen. Our company is a high technology company that integrates research, development, production and sale, and is mainly engaged in the sale of inclinometer sensors, digital compasses, digital dipmeters and acceleration sensors. These products are widely used in many industrial control fields, such as automobiles, ships, airplanes, railways, medical facilities, dam safety monitoring, oil drilling, coal mining and ocean surveying. Our company has established good business relationships with many international famous companies.
We adhere to the service guideline of "Client-centered". "Client uppermost, credit first, service best" is our business philosophy. Our company provides accurate, efficient, civilized and complete services for clients.
Let us provide you with the best products. To save purchasing cost and time, contact us now.
.
