Specifications
accelerometer, Quartz accelerometers1.High resolution,High stability,High accuracy
2.Low power,Excellent overload capacity

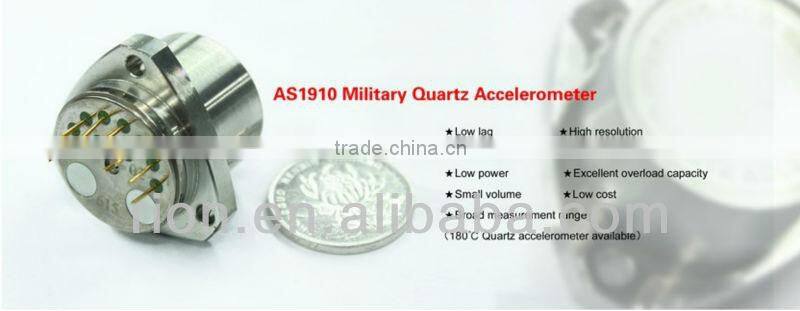

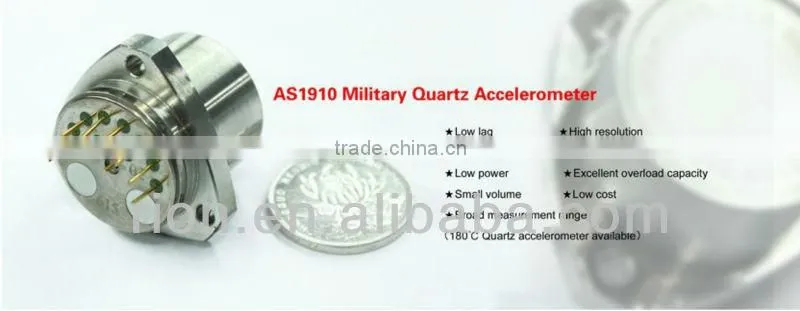

Industry quartz accelerometer
Product Description:
A quartz accelerometer is a force equilibrium sensor,a precise instrument designed according to the principle of ineria.The acceleration input is converted to its fracture's subtle displacement,and then balanced by a feedback force.As a force feedback loop is used,the accelerometer has the features of high precision,high shock resistance,broad measurement range and excellent overload capacity.It is one of the most essential devices in the inertial navigation and guidance system.A quartz accelerometer consists of a gauge head.an excitation circuit and a frequency measurement circuit.The gauge head consists of a dampling plate,a metal pendulum and a force sensitive quartz stick.
Features
*Low lag
*High resolution
*High stability
*High accuracy
*Low power
*Excellent overload capacity
*Small volume
*Low cost
*Broad measurement range
Applications
*Applications:Drilling and Inclination Measurement
*Aeronautics and Astronautics
*Instruments and Equipments
