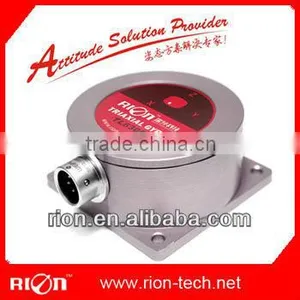

Military Industry Gyro Angular Sensor With Compact And Light Design
General Description

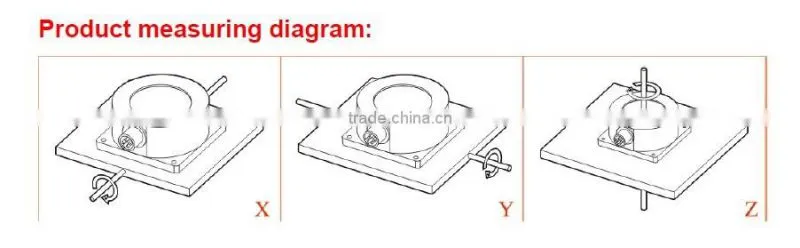

TL732D is a Gyro angular sensor based on the principle of gyroscope, using the real-time output gyroscope angular ratesignal, through the high-speed microprocessors to calculuscalculate the angular rate , then to calculate the axial deflection angle of up to three simultaneous measurement of axial (X, Y, Z).
Mainly used to measure the deflection of moving objects, this product is not influenced by magnetic interference, which can normally measure the yaw angle in the magnetic field regional, only need to set the ZERO bias angle what you want , can replace the function of electronic compass but unaffected by magnetic fields.
This instrument can measure the fastest rotatation speed of 300 degrees / sec, please do not exceed this limit when using, otherwise it will cause measurement overload, causing a large integrated error, then result in the output angle error becomes large.
Products with high performance & cost-effective,small volume, using non-contact measurement, long-term stable and reliable. Now widely used in automotive, military, marine, moving object position control and attitude control, and other applications that require precise angle measurement occasions!
Key Features :
- Yaw angle output
- Strong vibration resistance
- Light weight
- Long life,strong stability
- Cost-effective
- All solid state
- Compact & light design
- RS232/RS485I output optional
- DC+12V power supply
Application:
1.Military & Industry
2.Navigation
3.Car navigation
4.Platform stability
5.Auto safety system
6.Remote control helicopters
7.Turck-mounted satellite antenna equipment
8.Industrial control
9.Equipments
10.PS combination
11.Camera stability
12.Robot
13.3D virtual reality
14.Ships electronic needle error compensation on inclined(angle rate)inductioni equipment

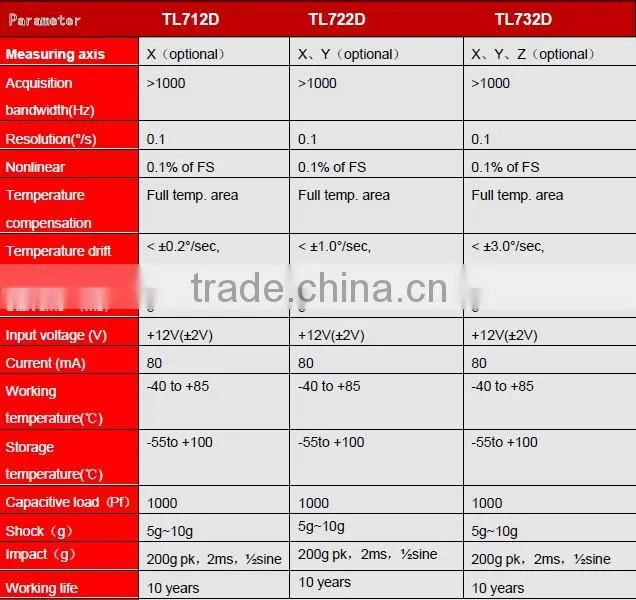

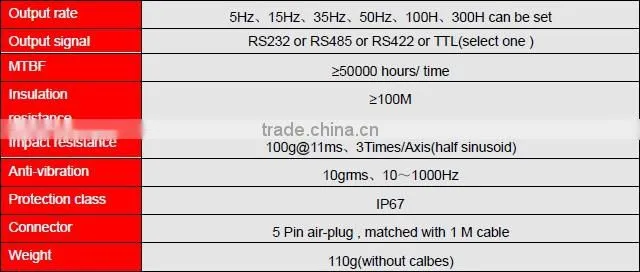

Parameters :
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
