Affordable Industry Using MEMS Gyro Sensor With Long Life Features
General Description
TL632D is a gyroscope (angle rate sensor)based on the micro mechanical principle,a miniature inertial devices for mainly measuring the angular velocity of a moving object. Product internal withthe silicon ultrafine precision ring sensing technology so that it has a high-performance, waterproof,anti-vibration, light weight,anti-electromagnetic interference characteristics and etc. Uninterrupted the machine with self-test technology, the filtering algorithm and the first time in the country by eliminating resonance technology to solve the influence on data because of the surrounding noise or vibration interference source to the ordinary gryoscope. TL632D add another international temperature sensor compensation technology to solve the temperature drift impact problems,with over-temperature stability and long life characteristics etc. to realizethe domestic similar products technology-leading technology.

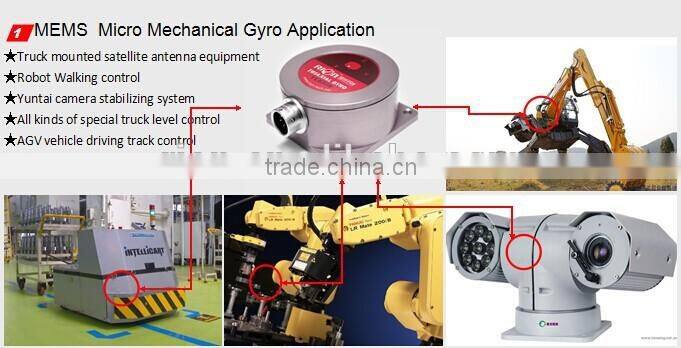

Products with high cost-effective, small volume,more advantages than the FOG in application fields, is now widely used in the automotive, military, marine, moving objects, position control & attitude control, and other applications that require precise angle measurement occasions!
Key Features
- High performance drift stability
- Low noise
- Light weight
- Long life,strong stability
- Cost-effective
- Excellent vibration performance
- All solid state
- Compact & light design
- RS232/RS485/SPI output optional
- Wide temperature range
- DC+9~36V power supply Temperature drift< ±0.2°/sec
Technical Data
Measuring range (°/s) | ±50 | ±150 | ±300 |
Measuring axis | X,Y,Z(optional) | X,Y,Z(optional) | X,Y,Z(optional) |
Bandwidth(Hz) | >2000 | >2000 | >2000 |
Resolution(°/s) | 0.1 | 0.1 | 0.1 |
Nonlinear | 0.1% of FS | 0.1% of FS | 0.1% of FS |
Temperature compensation | Full temperature area | Full temperature area | Full temperature area |
Temperature drift °/sec | < ±0.2°/sec,
| < ±1.0°/sec,
| < ±3.0°/sec,
|
Start time(ms) | 5 | 5 | 5 |
Input voltage(V) | +9~36V | +9~36V | +9~36V |
Current(mA) | 6 | 6 | 6 |
Working temperature (℃) | -40 to +85 | -40 to +85 | -40 to +85 |
Store temperature (℃) | -55to +100 | -55to +100 | -55to +100 |
Capacitive load(Pf) | 1000 | 1000 | 1000 |
Shock(g) | 5g~10g | 5g~10g | 5g~10g |
Impact(g) | 200g pk,2ms,½sine | 200g pk,2ms,½sine | 200g pk,2ms,½sine |
Working life | 11 years | 11 years | 11years |
Output rate | 5Hz,15Hz,35Hz,50Hz,100H,300H can be set | ||
Output signal | RS232/RS485/RS422/TTL/SPI | ||
MTBF | ≥50000 hours/times | ||
Insulation resistance | ≥100M | ||
Shockproof | 100g@11ms,3Times/Axis(half sinusoid) | ||
Anti-vibration | 10grms,10~1000Hz | ||
Protection class | IP67 | ||
Connector | 5 pins air-plug, matched with 1M cable | ||
Weight | 110g(withtout cable) | ||
