Digital Display Inclinometer Sensor, Dual Tilt Sensor With "ZERO" Setting ,resolution 0.01deg

Specifications

 digital display inclinometer sensor, dual tilt sensor with "ZERO" setting ,resolution 0.01deg

General Description:

DMI600 is a dual-axis Protractor(digital protractor, digital level0with high accuracy 0.03 degrees, High accuracy digital inclinometer is an innovative product that provides digital readingbetween±80degrees, This product adopts industrial wide temperature LED lightsdisplay which make it enables working regular between-25~+85degrees celsius , It performs the conversion between absolute measurementand relative measurement by simply pressing one button “ZERO”, The advancedsensor technology and microprocessor circuit provide unsurpassed accuracy. Theunit is easily calibrated at any available flat surfaces.Thedigital inclinometer can also output the data through the RS232/485 serialcommunication port connect to PC.and move in step.( This fuction is optional)Another special application is that display unit and tilt sensorunit is separated and connected by cable, The sensor unit is compact and easilyto assemble the place where you like. The shaft of tilt sensor is forconnecting the parts in machine. After the two units is connected with cable, thedisplay unit will show the rotating angle when the shaft is rotated. Thedisplay unit can be putted in the place at your wish. It is easily operate andread with two buttons On/Off and Zero.

Features:

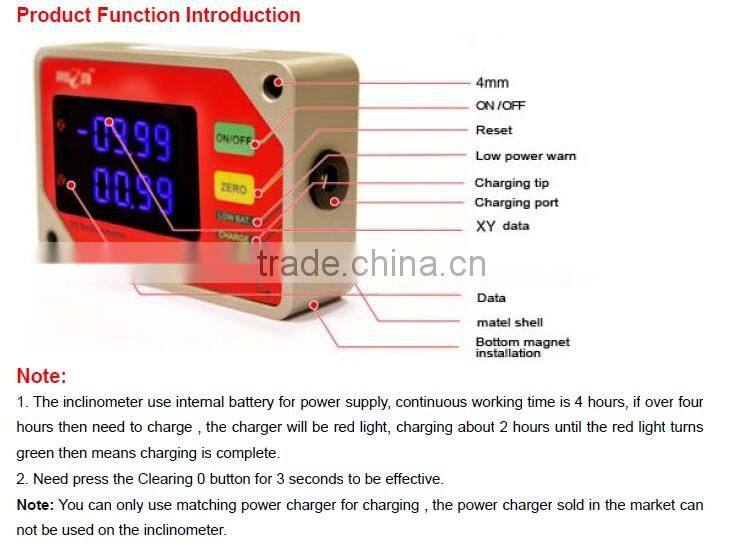

1:Dual-Axis digital inclinometer
2Resolution0.01 degrees
3:Zero setting function
4:Industrial wide temperature LED lights
5:low voltage prompt

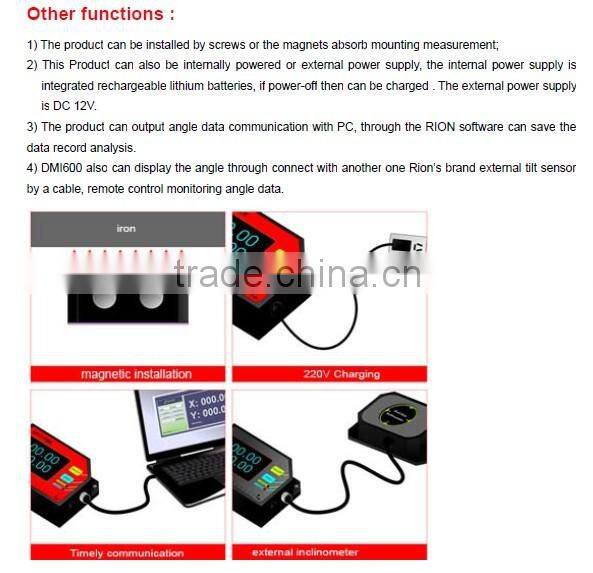

6:External tilt sensor is connectable
7:PC synchronous display
8:Full Metal Jacket,IP65 protection
9:Working Temperature-25~+85degrees celsius
10:small size(60*90*26mm)
11:DC 9-36V wide voltage power supply(Built-in batteries or external power :optional)

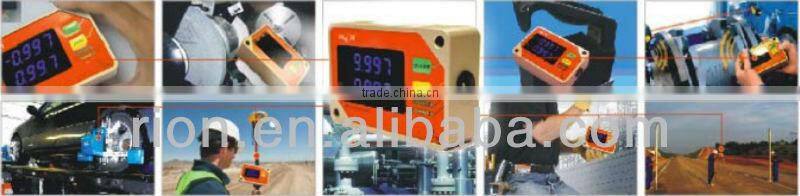

Applications:
1: buildingconstruction
2:subwayconstruction
3:roadincline
4:mechanical installation
5:pipeline installation
6:industry platform
