Specifications
digital inclinometer &Leveler&level protractor&angle meter1.360degrees measuring
2.Long term stability:0.1<60degrees
electronic angle meter with 360deg range data record calibraton function..etc
Description:
SP-2 is a low-cost single axis digital inclinometer&Leveler&level protractor&angle meter with high accuracy 0.1(degrees) , Digital Angle Protractor that replaces traditional bubble measurement is researched anddeveloped by Rion-tech, solves the measuring difficulty, and improves themeasuring precision. It is designed with declination compensationfunction. Whether the customer is professional or not, anyone can measure theangle they want in any position. The product has LCD screen, quantitatively displays the angle away from horizon andcan connect digital instrument.
Features:
1:luminous digital LCD
2angle data responsive

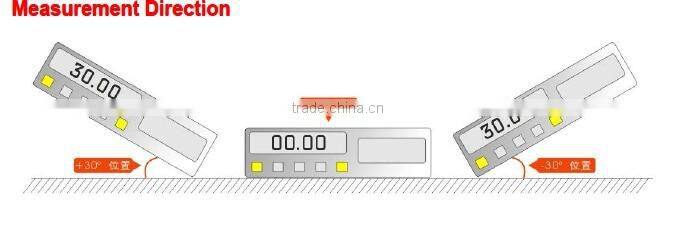

3:switch between angle and pitch
4:temperature range: -15 to 50(degrees celsius)
5:360(degrees)readout
6:audio prompt
7:record keeping
8:auto power off after 5min.

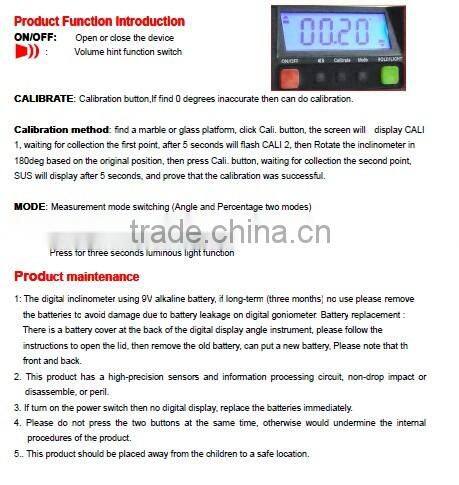

9:calibrated by user, solve temperate drift
10:low voltage alarm
11:Device accuracy: 0.1-0.2 degree (depending on the required range)
12:size:160*21.5*52.5mm
Applications:
1:Measuring plane containing disk magnet can stick to the surface to be measured.
2:Works great for miter saws and table saws.
3:Sets the angle of jointer fances and band saw tables.
4:Machine cone bevel measuring and bevel measuring in processing.
5:Telecommunication industry:Radar antenna angle calibration,elevation measuring for secondary planet antenna and television receiver.
6:Automobile:wheel alignment,pavement control and leveling for construction vehicles.
