Specifications
Protractor Inclinometer1.High performance
2.Low cost
3.Accurate and stable
4.1 year warranty

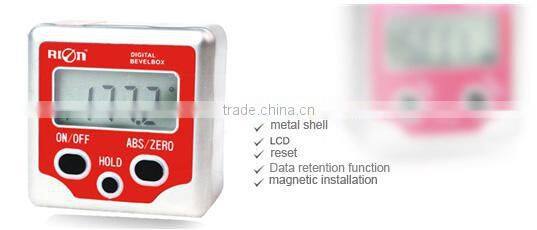

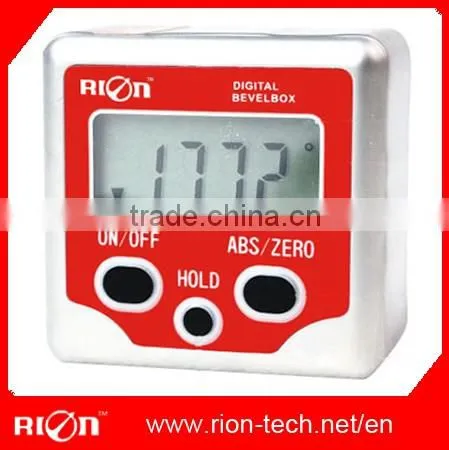

High Performance Digital Protractor Inclinometer Best Price
Features :
Accuracy:0.1° Repeatability:0.1°
Angle data response fast Switch between relativity and absoluteness
Working temperature 0°~ +45°C Angle compensation function
Measuring range :±180°(0-360°) Power supply :3V Lithium battery
IP54 protection class With number hold function, convenient for record
Application:
Building operations Vehicle maintenance Road grade
Machinery installation Pipe installation Industry platform
Ordering information:
Item No. | Order Description |
|
DMI100 | Standard Digital Display Inclinometer (Three buttons,Metal shell ) | |
DMI101 | The Dispayer of tilt sensor and tilt sensor mounting separately ( Plastic shell with metal edge) | |
DMI102 | Digiital dispaly inclinometer with level bubble (Three buttons , Metal shell, at the top mount with a level bubble)
| |
Technical Data
Measuring range | 0~360 | ° |
Measuring accuracy | ±0.1 ° (0°,90°,180°,270°) ±0.2 °< other angle | ° |
Working Temperature | 0°~ +45°C | °/°C |
Working current | <100 | uA |
Working humidity | 85 | %RH |
Display resolution | 0.1 | ° |
ZERO Temperature drift | 0.05 to 0.005%F.S/°C | %F.S/°C |
Power | 3V Lithium battery(CR2032 Type) | V |
Power consumption | <100 | mW |
Dimension | L50mm*W50mm*H32mm | mm |

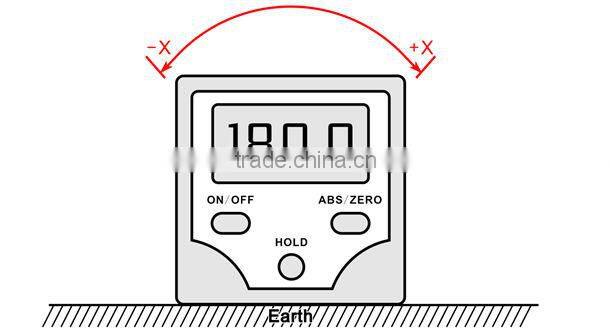

Measurement Direction

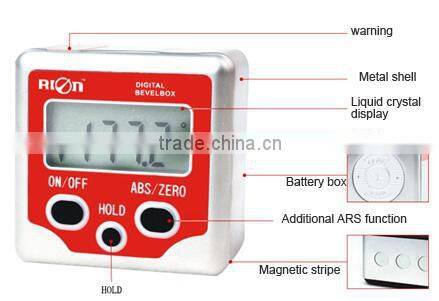

Product Function Introduction
Company and Factory
Certificates & Honor
Warranty & after service
One year warranty is provided, during that period, we replace the malfunction item for free, and still we take care of products for its lifetime.
