DMI800 Digital Inclinometer,Clinometer,Tilt Sensor With High Accuracy 0.002deg Max Range +/-30deg

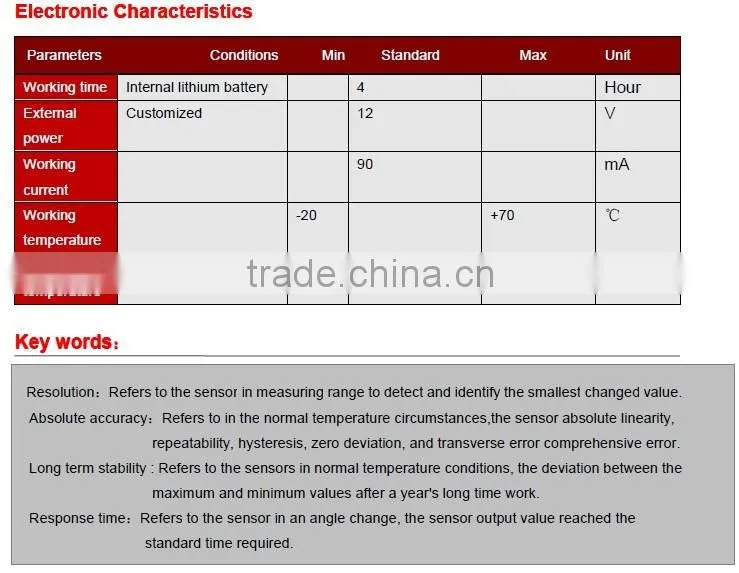

Specifications

DMI800 Digital inclinometer,Clinometer,Tilt sensor With High Accuracy 0.002deg Max Range +/-30deg

SPECIFICATIONS

Item No.:DMI800

Description:High Accuracy Dual-axis Digital Display Inclinometer

Version:Ver.06

General Description

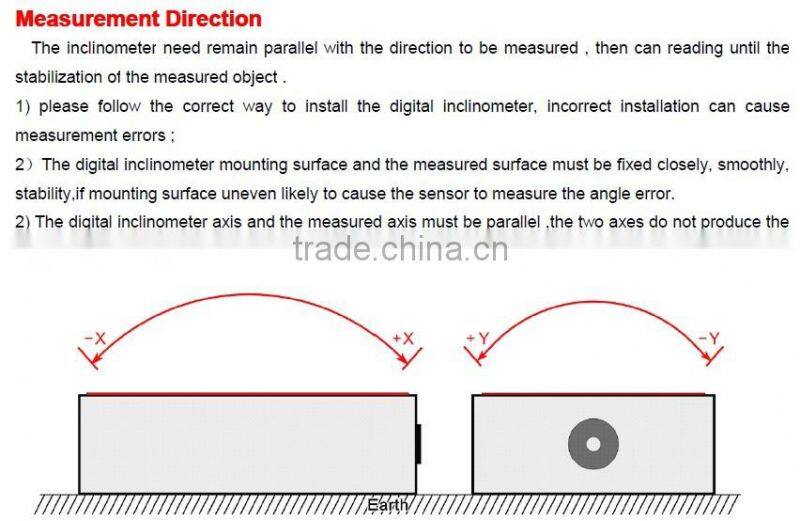

  DMI800 is a standard dual-axis digital display inclinometer, specialized for measuring the tilt angle of the object relative to horizontal position , the flatness of equipment installation and the wall verticality , its working principle is built-in miniature solid pendulum, by measuring thegravity then calculating the level degree of the current object. Measurements that show the angle with the reference zero to the Earth's gravity, each product accuracy is calibrated before out of factory . In addition provide a button used for the relative angle measurement,can setting the current angle to zero, as the basis of the relative angle change measurements.

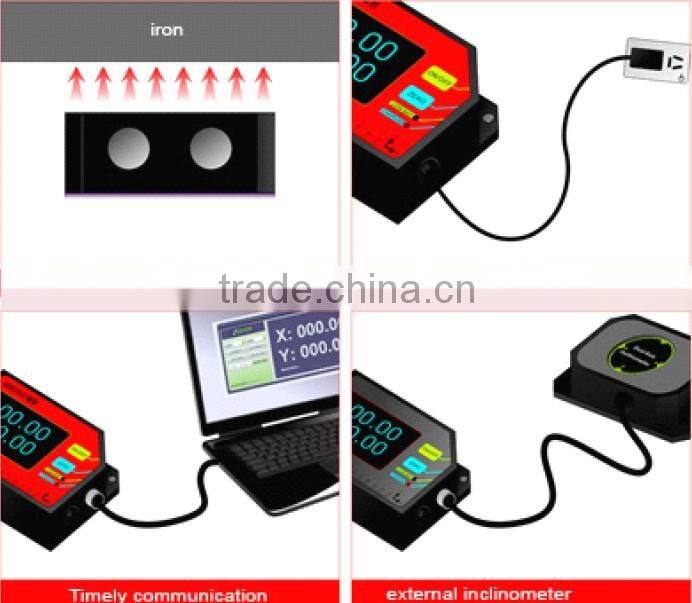

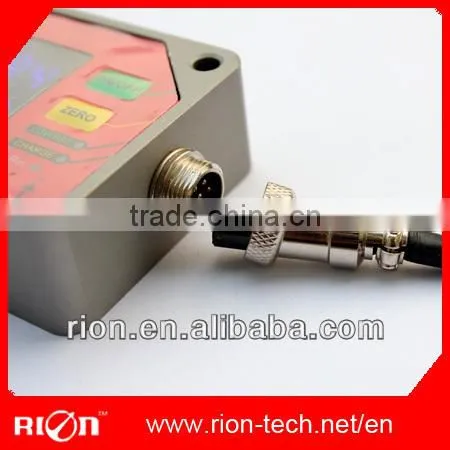

  DMI800 belongs dual-axis small measuring range digital display inclinometer, the highest accuracy can up to 0.002 degrees. The product is small size, diversified ways of working, can connect with the external RION brand series tilt sensor remote control, easy remote collection site angle data for some special industries.

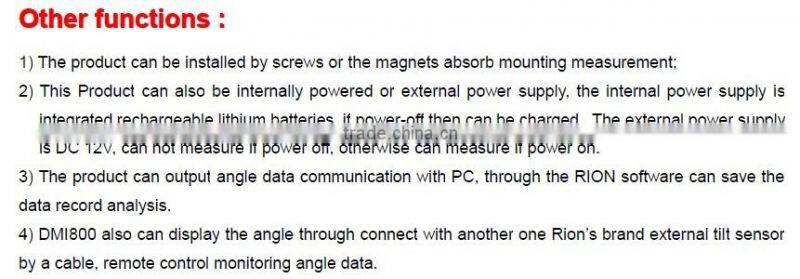

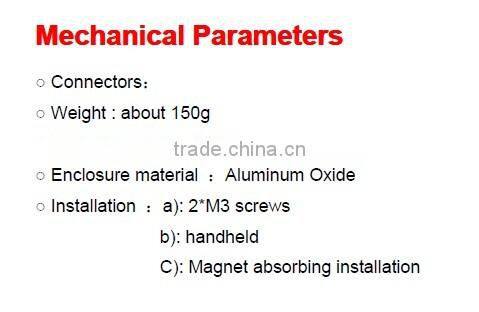

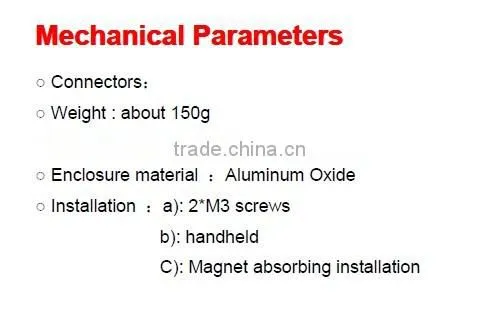

  The internal integrated magnet self-priming installation method, only need the user simply attach the DMI800 flat bottom to the iron-type objects, rely on it’s internal magnet the product can be absorbed to the measured object surface for a long-term, avoid the trouble of mounting by screws ,also easily disassemble .

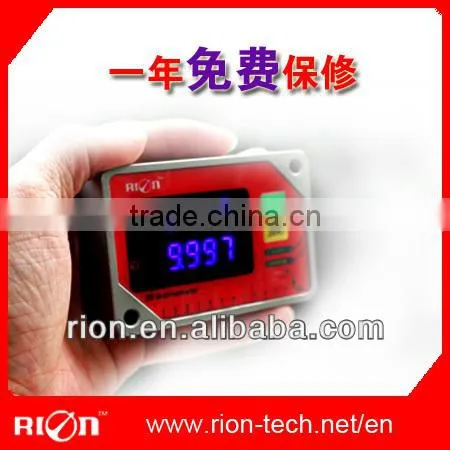

  The display unit of product using the industrial-grade digital tube so that can guarantee the normal work in a wide temperature industrial environment. The super cost performance is the absolute superiority of the product, and a variety of installation and combinations to meet the demand for a variety of industrial applications.

Features :

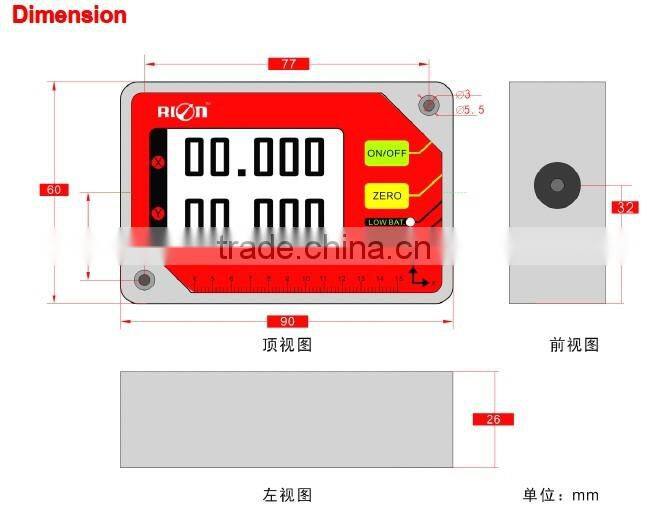

• Size :60X90X26mm
• Double row digital display  High resolution : 0.001°
• High anti-shock performance >2000g Wide temperature working -10°~ +70°C
• Various combination methods
• IP65 protection class

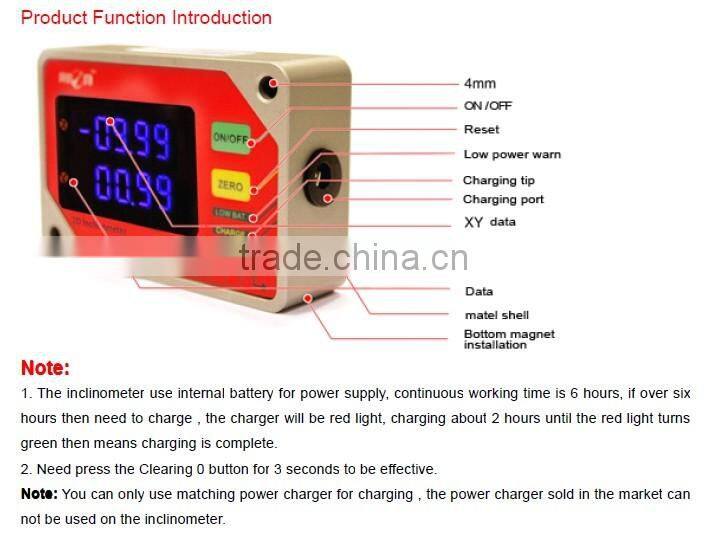

• ZERO setting function
• Measuring range : ±5°~±35°

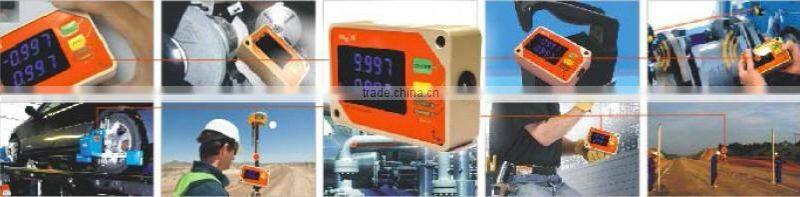

Application:

• Inclination platform measuring
• Bridge and dam monitoring
• Wireless station posture monitoring
• Geological equipment tilt monitoring
• Equipments calibration
• High precision level measuring

Related or similar products :

Model : DMI820/DMI810  Touch Screen Dual-axis(Single axis) Digital Inclinometer

Angle Measuring Range : +/-15deg or +/-30deg Optional

MM Measuring Range: 267,  577mm

Resolution : 0.001deg

Accuracy :  <0.005deg based on range +/-15deg (Full Measuring range)

                   <0.01deg  based on range +/-30deg(Full Measuring range)

Enclosure Material : Full Material Jacket

LCD Visible Area Size : L57.6*W43.2mm

Signal Output Interface : USB1.1

Water Proof : IP54

Product Weight : 300g

Product Size: L100*W27.1*H73mm

Power supply: 3.7V Rechargeable Lithium Battery

Battery Working Time : 8-10 Hours When Charing Full Power

Products Cert. : FCC/CE/CCC

Packing Method : Each in a Wooden Box

Packing size : L22*W12*H6CM

Packing Weight : 0.8~1 KGS
