DMI800 dual axis digital sensor, detecting angle meter,lux meter sensor with range max +/-35deg , highest precision 0.002deg

Sponge & cartons

Specifications

Digital sensor
1:Accuracy<0.003
2:Self-luminous display
3:Widely temperature working range-40-85



DMI800 dual axis digital sensor, detecting angle meter,lux meter sensor with range max +/-35deg , highest precision 0.002deg



General Description

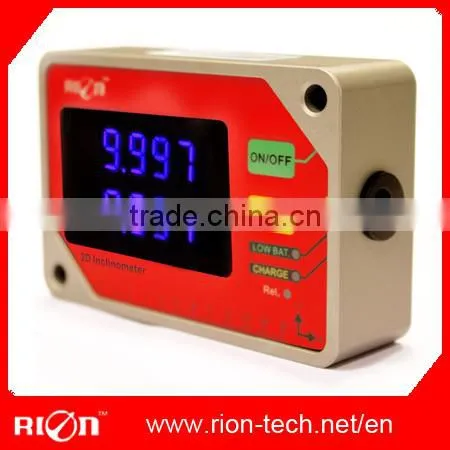

  DMI800 is a standard dual-axis digital display inclinometer, specialized for measuring the tilt angle of the object relative to horizontal position , the flatness of equipment installation and the wall verticality , its working principle is built-in miniature solid pendulum, by measuring thegravity then calculating the level degree of the current object. Measurements that show the angle with the reference zero to the Earth's gravity, each product accuracy is calibrated before out of factory . In addition provide a button used for the relative angle measurement,can setting the current angle to zero, as the basis of the relative angle change measurements.

  DMI800 belongs dual-axis small measuring range digital display inclinometer, the highest accuracy can up to 0.002 degrees. The product is small size, diversified ways of working, can connect with theexternal RION brand series tilt sensor remote control, easy remote collection site angle data for some special industries.

  The internal integrated magnet self-priming installation method, only need the user simply attach the DMI800 flat bottom to the iron-type objects, rely on it’s internal magnet the product can be absorbed to the measured object surface for a long-term, avoid the trouble of mounting by screws ,also easily disassemble .

  The display unit of product using the industrial-grade digital tube so that can guarantee the normal work in a wide temperature industrial environment. The super cost performance is the absolute superiority of the product, and a variety of installation and combinations to meet the demand for a variety of industrial applications.

Features :

*Size :60X90X26mm

* Double row digital display

*High resolution : 0.001°

*High anti-shock performance >2000g

* Wide temperature working -10°~ +70°C

*Various combination methods

*IP65 protection class

*ZERO setting function

*Measuring range : ±5°~±35°

Application:

*Inclination platform measuring

*Bridge and dam monitoring

* Wireless station posture monitoring

*Geological equipment tilt monitoring

*Equipments calibration

*High precision level measuring





Technical Data

Parameters                 condition     DMI800-05       DMI800-10       DMI800-15        DMI800-35            Unit

Measuring range		±05	±10	±15	±35	°
Measuring axis		X,Y	X,Y	X,Y	X,Y
Resolution		0.001	0.001	0.001	0.001	°
Absolute accuracy	20°C-40°C	0.003	0.005	0.005	0.01	°
ZERO temperature coefficient	-10~70°	±0.002	±0.002	±0.002	±0.002	°/°C
Sensitivity temperature coefficient	-10~70°	≤100	≤100	≤100	≤100	ppm/°C
Power on stability time		0.5	0.5	0.5	0.5	S
Response time		0.2	0.2	0.2	0.2	s
Response frequence		1~8	1~8	1~8	1~8	Hz
Electromagnetic compatibility	According to EN61000 and GBT17626
Insulation resistance	≥100M
Shockproof	10g@11ms,3Times/Axis(half sinusoid)
Anti-vibration	10grms,10~100Hz
Waterproof class	IP65
Accessories	220V power charger
Weight	90g(without accessories)

* This Technical data only list±05°,±10°,±15°,±35 series for reference, other measuring range please refer to the adjacent parameters
