Two-axis Inclinometer Sensor

Specifications

two-axis inclinometer sensor , digital output

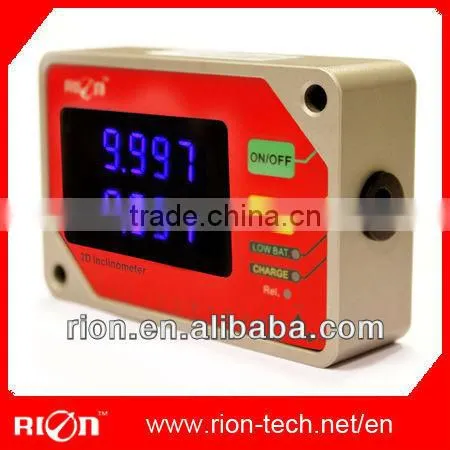

DMI800 is a industry grade dual axis digital inclinometer(digital protractor, digital level) with high accuracy,At present, There’s only one which accuracy up to 0.003 degrees digital inclinometer in china .

The digital inclinometer can also output the data through the RS232/485 serial communication port connect to PC.and move in step.( Customizable)

Another special application is that display unit and tilt sensor unit is separated and connected by cable, The sensor unit is compact and easily to assemble the place where you like. The shaft of tilt sensor is for connecting the parts in machine. After the two units is connected with cable, the display unit will show the rotating angle when the shaft is rotated. The display unit can be putted in the place at your wish. It is easily operate and read with two buttons On/Off and Zero.

Features:
1:Dual-Axis digital inclinometer

2:Measuring range ±1-±35 optional (Max 18 degrees)
3:Resolution0.001 degrees
4:Zero setting function
5:Industrial wide temperature LED lights , Visible at night
6:low voltage prompt
7:External tilt sensor is connectable
8:PC synchronous display
9:Full Metal Jacket,IP65 protection
10:Working Temperature-25~+85degrees celsius
11:small size(60*90*26mm)
12:DC 9-36V wide voltage power supply(Built-in batteries or external power :optional)

Applications:
1:buildingconstruction
2:subwayconstruction
3:roadincline
4:mechanical installation
5:pipeline installation
6:industry platform

...
