Specifications
1: Max Measuring Range : +/-90deg2. Low Power/Charging Alarm
3. Remote Control Optional
3. Various Charging Selection

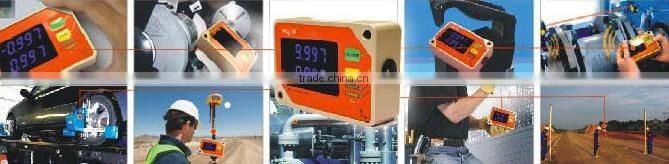

DMI600 Standard Dual axis Electronic Inclinometer Clinometer With Display Screen
General Description :
DMI600 is a standard dual-axis digital display inclinometer, specialized for measuring the tilt angle of the object relative to horizontal position , the flatness of equipment installation and the wall verticality , its working principle is built-in miniature solid pendulum, by measuring thegravity then calculating the level degree of the current object. Measurements that show the angle with the reference zero to the Earth's gravity, each product accuracy is calibrated before out of factory . In addition provide a button used for the relative angle measurement,can setting the current angle to zero, as the basis of the relative angle change measurements.
DMI600 belongs dual-axis small measuring range digital display inclinometer, the highest accuracy can up to 0.02 degrees. The product is small size, diversified ways of working, can connect with the external RION brand series tilt sensor remote control, easy remote collection site angle data for some special industries.
The internal integrated magnet self-priming installation method, only need the user simply attach the DMI600 flat bottom to the iron-type objects, rely on it’s internal magnet the product can be absorbed to the measured object surface for a long-term, avoid the trouble of mounting by screws ,also easily disassemble .
The display unit of product using the industrial-grade digital tube so that can guarantee the normal work in a wide temperature industrial environment. The super cost performance is the absolute superiority of the product, and a variety of installation and combinations to meet the demand for a variety of industrial applications.
Features :
- Size :60X90X26mm
- Double row digital display
- High resolution : 0.01°
- High anti-shock performance >2000g
- Wide temperature working -10°~ +70°C
- Various combination methods
- IP65 protection class
- ZERO setting function
- Measuring range : ±5°~±90°
Application:
- Inclination platform measuring
- Bridge and dam monitoring
- Wireless station posture monitoring
- Geological equipment tilt monitoring
- Equipments calibration
- High precision level measuring
Related or Similar Products :
Model : DMI820/DMI810 Touch Screen Digital Inclinometer (New & Top Sale Model)
Measuring range: +/-15deg or +/-30deg Optional
Measurement Accuracy : <0.005deg @+/-15deg (Full Measuring range) , <0.01deg @+/-30deg (Full Measuring Range)
Measurement Resolution : 0.001deg
Length Measurement range : 267~577mm
Length Measurement Resolution: 0.1~0.2mm
Connector plug-in : Standard 5Pin USB Connector
Power Supply : Rechargeable Lithium Battery
Battery Working Time : 8-10 hours When Charging Full Power
Product Size : L105*W73*H27.1mm
Product Weight :300g
Protection : IP54
Product Enclosure Material : Metal Aluminum
Products Cert. : FCC/CE/CCC
Packing Method : Each in a Wooden Box
Packing size : L20*W12*H6CM
Packing Weight : 1KGS
Model : DMI410 Single axis Digital Inclinometer ( (New & Top Sale Model)
Measuring range: +/-180deg (0-360deg)
Angle Measurement Accuracy : 0.05deg(Full Measuring range)
Angle Measurement Resolution : 0.01deg
Length Measurement range : +/-999.99 mm/m
Length Measurement Accuracy : 0.9mm/m (Full Measuring range)
Length Measurement Resolution: 0.17mm/m
Data Output Signal : Standard 5Pin USB Connector Virtual Series Port
Power Supply : Rechargeable Lithium Battery
Battery Working Time : 8 hours When Charging Full Power
Product Size : L83*W53*H19.2mm
Product Weight : 125g
Protection : IP54
Product Enclosure Material : Metal Aluminum
Products Cert. : FCC/CE/CCC
Packing Method : Each in a Wooden Box
Packing size : L18*W12*H6CM
Packing Weight : 1KGS
Our Company & Workshop View :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
