Specifications
Cheap Inclinometer1. High performance
2. no-contact measurement
3. Stable & reliable
4. Low cost
LCA310T Single Axis Cheap Inclinometer Analog Level Transmitter
General Description
The LCA310T series inclinometer which developed by Rion Company is a small volume, low-cost single-axis tilt sensor, the output voltage through an internal secondary linearity correction, is a linearity voltage output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, low power consumption, and high consistency and stability of MEMS technology, working temperature up to the industry level -40 to +85, is a ultra-high cost-effective inclination modules.
This product adopts non-contact measuring principle, can real-time output the current posture inclination, simple to use, no need to find the relative variation of the two surface for mounting.Small size, strong ability of resisting external electromagnet interference,strong ability to withstand shock and vibration. It Is the ideal choice for industrial equipment and platform measuring attitude !
Features:
Single-Axis Inclinometer Full measuring range anyone within 360° optional
Accuracy: refer to the technical data Wide voltage input: 9~36V
Output interface :0~5V Wide temperature working: -40~+85°C
IP67 protection class Highly anti-vibration performance >3500g
Resolution: 0.05° Small Volume : 55×37×24mm(customized)
Application:
Electric blind man chair leveling Cloud deck operating monitor
Satellite antenna positioning Medical equipment leveling
Car Chassis Measurement Four - wheeled positioning system
engineering mechanical measurement of dip angle
Parameter

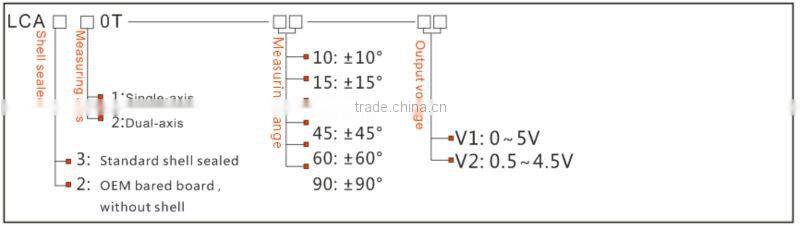

Order Information
Measuring Directions&Fix
Dimension
Company and Factory
RION Technology Co., Ltd. is located in a fantastic city - Shenzhen. Our company is a high technology company that integrates research,
development, production and sale, and is mainly engaged in the sale of inclinometer sensors, digital compasses, digital dipmeters and
acceleration sensors. These products are widely used in many industrial control fields, such as automobiles, ships, airplanes, railways,
medical facilities, dam safety monitoring, oil drilling, coal mining and ocean surveying. Our company has established good business
elationships with many international famous companies. We adhere to the service guideline of "Client-centered". "Client uppermost,
credit first, service best" is our business philosophy. Our company provides accurate, efficient, civilized and complete services for clients.
Let us provide you with the best products. To save purchasing cost and time, contact us now.
Certificates & Honor
Warranty & after service
One year warranty is provided, during that period, we exchange and fix the malfunction item for free, and still we take care of products for its lifetime.
Payment methods
We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
Shipment
We will ship your order within 7 business days after we receive the full payment.
If you choose ship by DHL/UPS/FEDEX/TNT,it will take 3-5 work days; If you choose EMS ,it will take 5-7 work days.
