HCA516T Digital Levels Electronic Inclinometer Industrial Level Factory Price

Specifications

Digital Levels Electronic Inclinometer
1.Single-Axis Inclinometer
2.Measuring Range :+/-35deg
3.Resolution: 0.001deg
4.IP67

HCA516T Digital Levels Electronic Inclinometer Industrial Level Factory Price



General Description

HCA516T is a high accuracy single-axis inclinometer launched by RION company, inherit the stability of the SCA series, while the accuracy be effectively improved, and the temperature drift performance with much more excellence , in addition the system with built-in high-precision 16bit A / D differential converter, meanwhile through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface RS485, RS232, RS422, TTL, or CAN 2.0B are optional.

Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response most up to 100Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability. Suitable for a variety of harsh industrial control environment.

Features:

Single-Axis Inclinometer                               Measuring Range :±1~±90° optional

Accuracy refer to the technical data                     Wide voltage input: 9~36V  Wide temperature working: -40~+85°C

Resolution: 0.001°   IP67 protection class              Highly anti-vibration performance >2000g

Small size :90×50×28mm(customized)



Application:

Satellite positioning Search                                                   Rail-mobile monitoring

engineering mechanical measurement of dip angle       oil-well drilling equipment

Radar detection of vehicle platform                                      Underground drill posture navigation

Gun Barrel angle measurement in early shooting            Based on the angle direction measurement

Satellite communications vehicle posture detection        Shield pipe jacking application

Ship’s navigation posture measurement                           Geological equipment inclined monitoring

Ordering information:

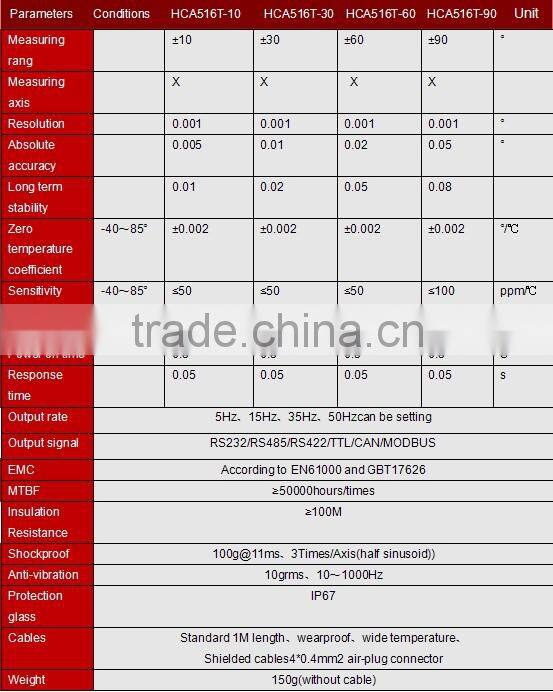

Technical Data

Dimension

Company and Factory

Certificates & Honor

Warranty & after service

One year warranty is provided, during that period, we exchange and fix the malfunction item for free, and still we take care of products for its lifetime.
