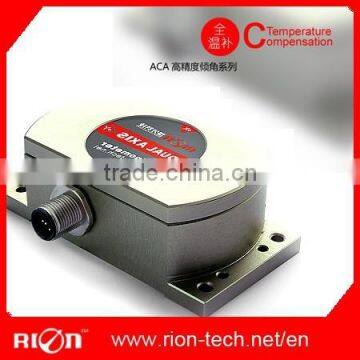

ACA626T High Accuracy Inclinometer With Full Temperature Compensation Bettter Drift Performance

1pcs/inner box with sponge ,100pcs/ctn

ACA626T High Accuracy Inclinometer With Full Temperature Compensation Bettter Drift Performance

General Description

 ACA626T is a full temperature compensation & high precision dual-axis inclinometer which developed by Rion company based on high precision tilt angle platform ,the excellent temperature stability, can maintainhigher measurement accuracy in a wide temperature range of -40-85 degrees environment, is more suitable for long-term monitoring and leveling of the field equipment. In addition the system built-in high-precision 24it A / D differential converter, meanwhile by 5 filtering algorithm, which can measure the output of the sensor tilt and pitch angle relative to the horizontal. The output interface RS485, RS232, TTL, PWM or CAN 2.0B optional.Non-contact installation features make ACA626T with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to use , no need to find the relative change two surfaces for mounting . With strong ability resistance to external electromagnetic interference and to withstand shock and vibration,in the domestic counterparts products with absolute competitive advantage, specialized in application in the industrial and military fields where the high-end user requirements.

Features

• Dual-Axis Inclinometer
• Measuring Range :±1~±30° optional
• Wide voltage input: 9~36V
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration performance >2000g
• High Resolution: 0.001°
• Water-proof air-plug

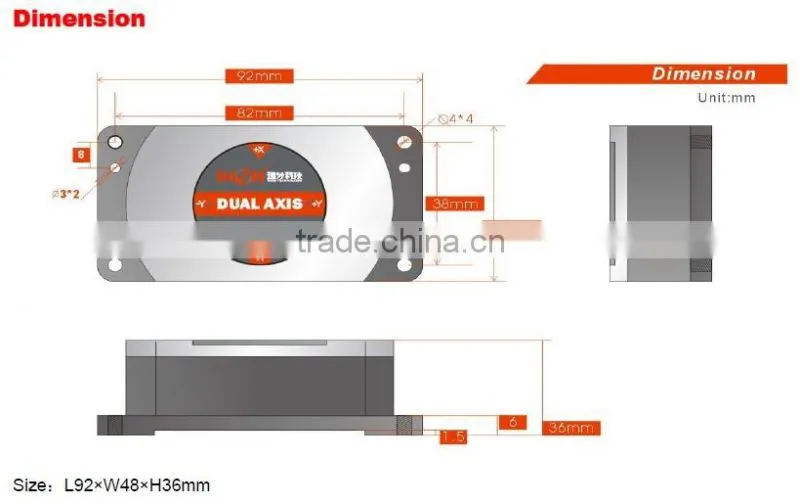

• Size : 92×48×36mm

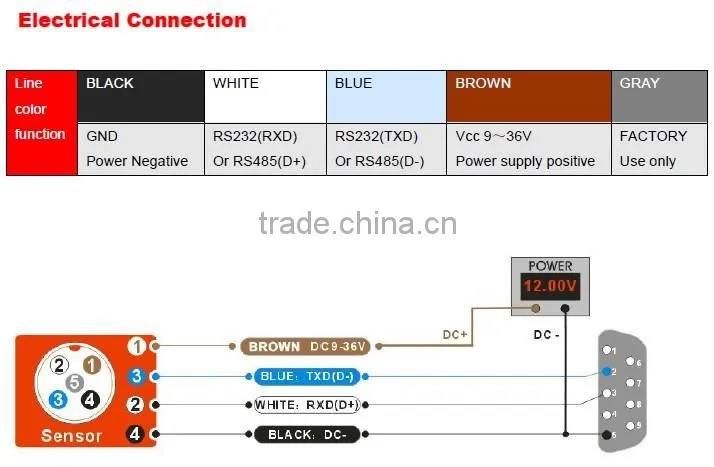

• Output mode RS232,RS485,RS422,TTL,CAN 2.0 are optional

Application:

• Engineering vehicles automatic leveling
• Bridge & dam detection
• Laser equipment position
• Medical facilities angle control
• Underground drill posture navigation
• Railway gauging rule , gauge equipment leveling
• Precise machine tool level control
• Geological equipment inclined monitoring
• Directional satellite communications antenna pitching angle measurement

Our Company & Workshop View :

Certificates & Test Reports :

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .

Payment ways :

T/T, WU or Paypal;

Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;

Quality Policy :

We gurantee 1 year in free charge .

Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
