Professional Tire Rubber Press
We are specilized in producing all kinds and sizes of tire reubber press with more than 20 years' ODM and OEM experience.

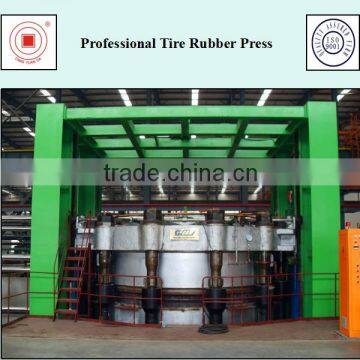

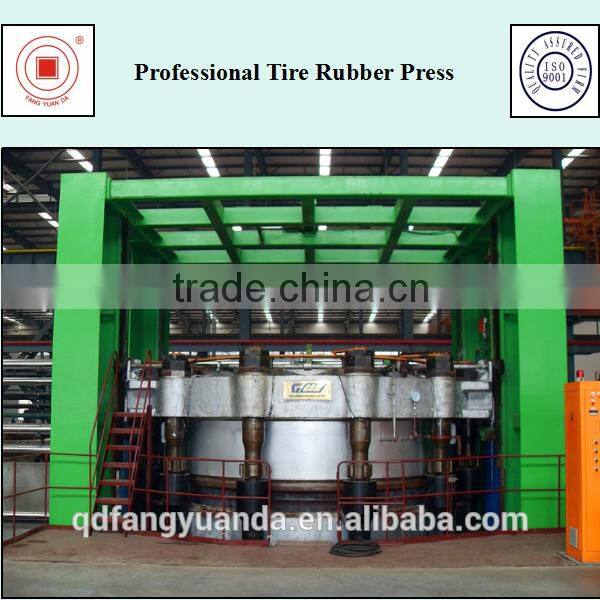

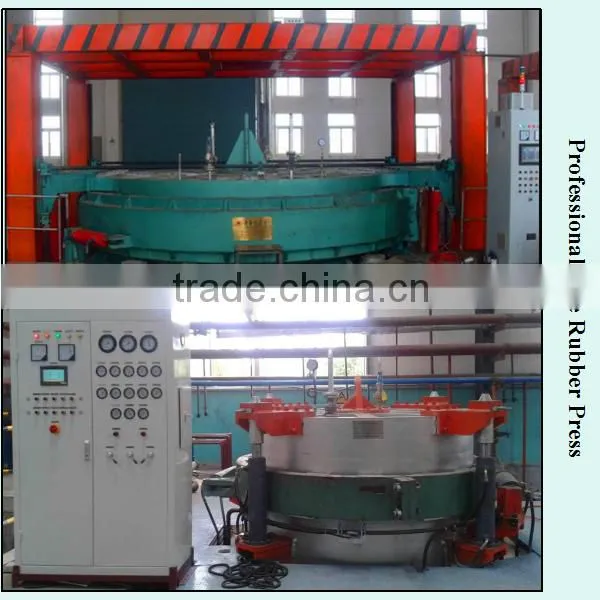

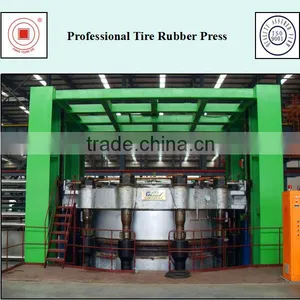

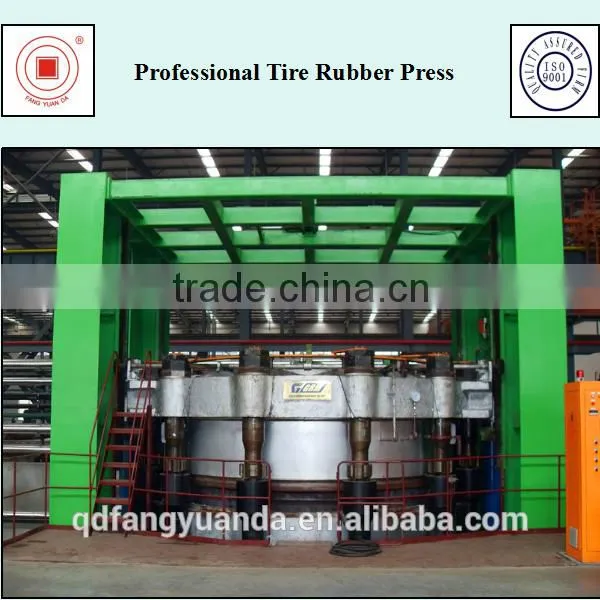

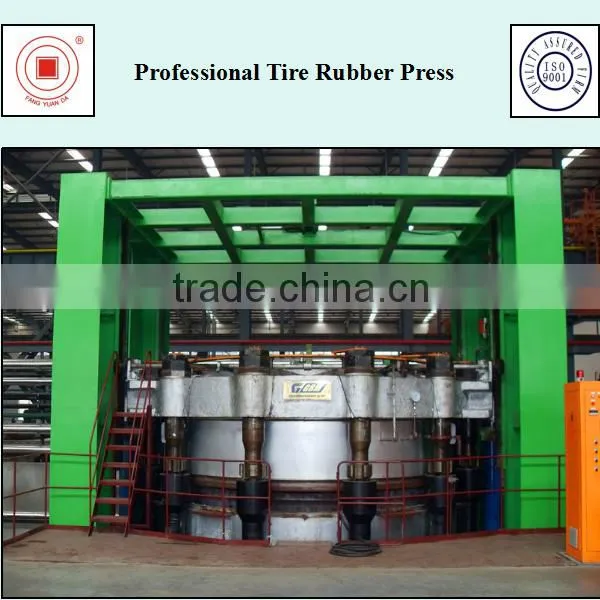

1. Hydraulic Tire Rubber Press
Hydraulic Tire Rubber Press - Mechanism Features
- The rubber press adopts gantry moving mechanism, single mould and clamping ring.
- The rubber press adopts vertical lift and translation mode for top mould and beam. The bladder control mechanism is B type.
- The rubber press is configured with segmented mould driving device.
- The rubber press adopts programmable controller and data processor as man-machine interface with OSD (on screen display), which make it visual, highly reliable, convenient change process, etc.
Hydraulic Tire Rubber Press - Applications
The rubber press is applicable to vulcanize giant rubber radial tire. Using this rubber press, you can achieve the whole process of rubber tire production from unvulcanized rubber raw embryo to a tyre, including installing embryos, forming and vulcanizing and unloading. The whole process can be achieved to single automatic cycle.

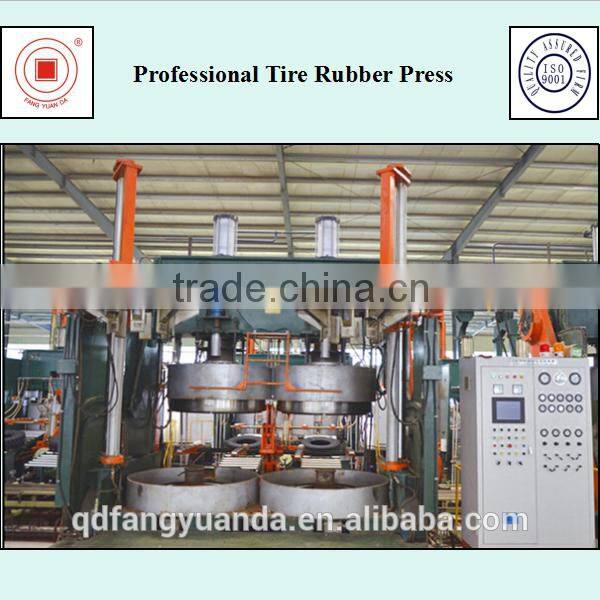

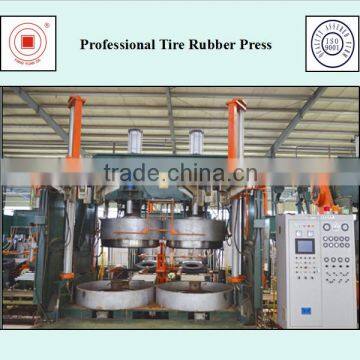

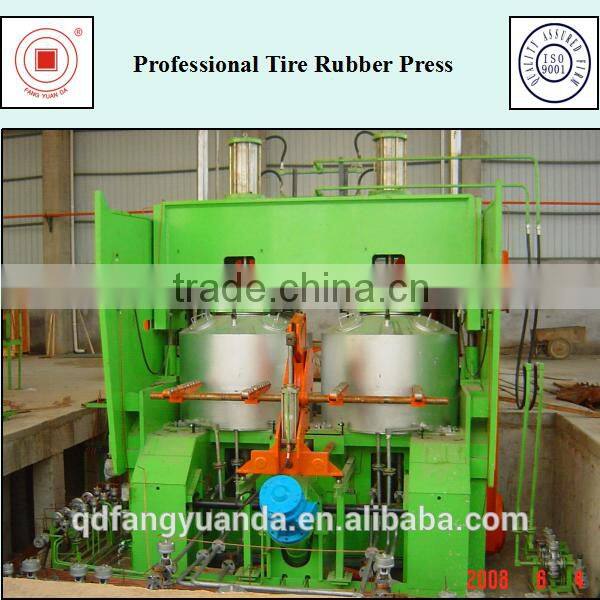

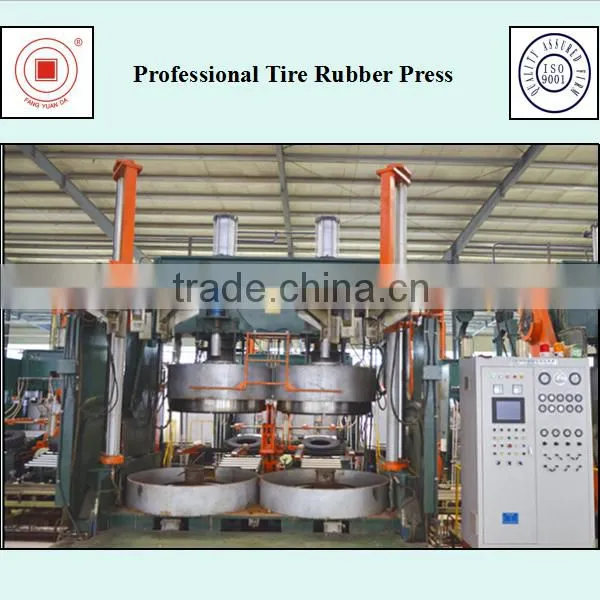

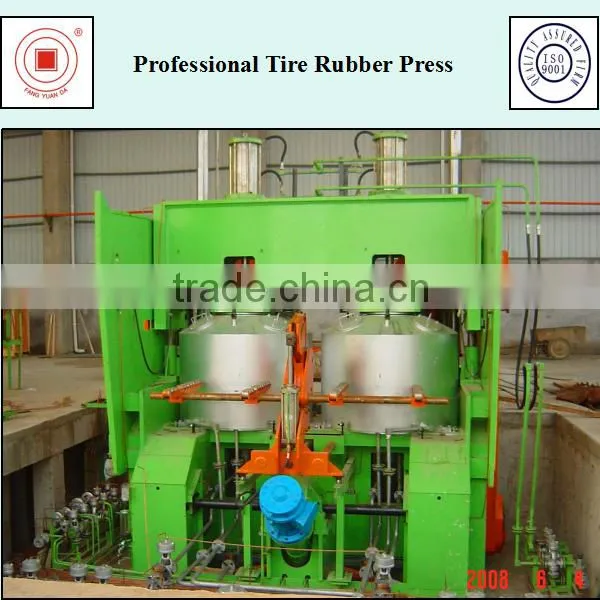

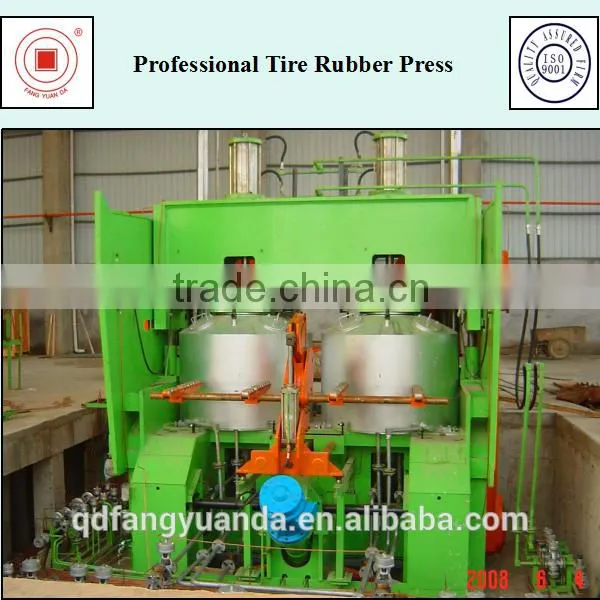

2. Mechanical Tire Rubber Press
Mechanical Tire Rubber Press - Mechanism Features
- The rubber press is used BOM centering mechanism.
- The rubber press is equiped with double-column manipulator, trolley type double cylinder unloading mechanism and front lever type demoulding mechanism.
- The rubber press adopts PLC programmable controller as the control core. Based on industrial computer man-machine interface, users can realize the vulcanization process parameter setting as well as real-time data acquisition, preservation, alarm and visual query of historical parameters when vulcanizing.
- The rubber press has Ethernet interface and supports cluster vulcanizing machine network.
Mechanical Tire rubber Press - Applications
This rubber press machine is applicable to vulcanize green tire, such as heavy & light truck radial tire and bias tire. And it is applicable to the Nitrogen vulcanization or steam vulcanization process.

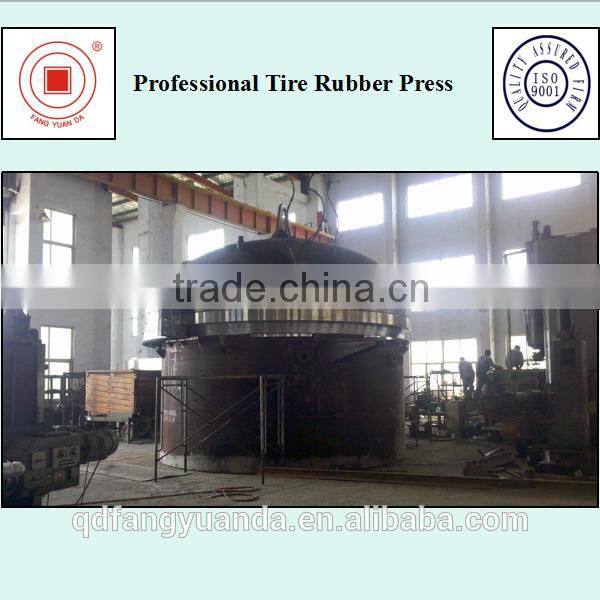

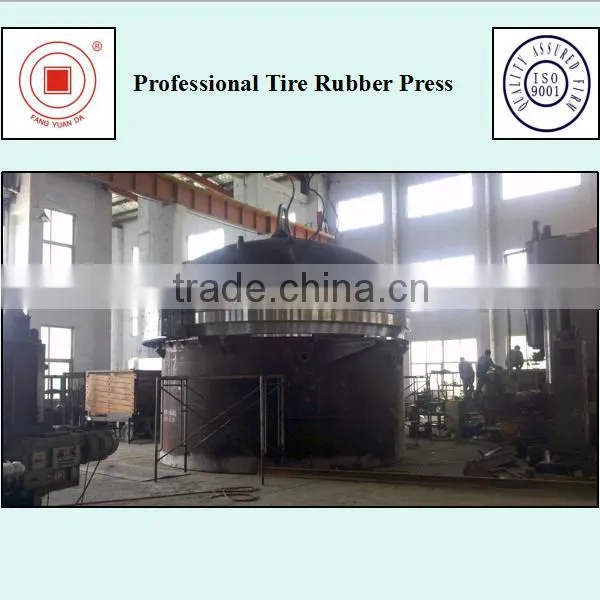

2. Tire Rubber Press - Boiler Technical Characteristics
Item |
Unit |
Specification |
Hydraulic Press for Rubber Vulcanization Nominal Pressure |
T |
4600 |
Interior Diameter of Hydraulic Press for Rubber Vulcanization |
MM |
5000 |
Working Height of Hydraulic Press for Rubber Vulcanization |
MM |
4000 |
Diameter of Plunger |
MM |
2160 |
Plunger Stroke |
MM |
4000 |
Max Diameter of Allowed Vulcanizing Model |
MM |
4800 |
Working Pressure of Hydraulic Press for Rubber Vulcanization |
MPa |
0.6 |
Working Pressure of Superheated Water |
MPa |
3.2 |
Working Pressure of High Pressure Water |
MPa |
15.0 |
Working Pressure of Low Pressure Water |
MPa |
3.0 |
Water Consumption of Plunger Stroke at a time |
M³ |
15 |
FANGYUANDA is a manufacturing company specialized in producing tire rubber press, tire vulcanizer, tire mold and tire building drum. We also provide the supporting service, including installation, maintenance, training, etc. We have the ability to develop powerful design and we can design according to customer’s request.
Our products of all-steel giant tire curing presss (105-212 inch press) and all-steel giant segmented tire mold (27R49-59/80R63) have got Chinese Patent and have a high market share.
- After more than 20 years of continuous efforts and development, with our strengths in China’ s rubber machinery industry, our business of complete sets machines have covered rubber machinery and tire rubber press and tire mold industry.
- According to your drawings, we can manufacture quality products.
- We have the capability of establish the whole plant, technology transfer, technical advisory services and transformation.
- In order to ensure and improve the quality of our export products, we take various effective methods to track and supervise each procedure from raw materials procurement, manufacturing, commissioning and inspection during each steps.
- We own GB/T19001-2008/ISO 9001: 2008 quality management system certification and get Chinese Patent of all-steel giant tire curing press and segment mold by cooperating with Qingdao Science and Technology University and Nanjing Industry University.
1. Are you a trade company or manufacturer?
We are a manufacturer located in Qingdao City, Shandong Province, China. We have accumulated more than 20 years' manufacturing experience in tire mold, tire rubber press, tire vulcanizing machine, building drum, etc.
2. Do you have own export license?
Yes, we have our own export license and we started exporting in 2008. We have exported our equipments to Belgium, America, Brazil, Korea, India, Sri Lanka, Iran, Ethiopia, and many other countries.
3. Does your company accept OEM/ODM?
Yes, we have more than 20 years' OEM and ODM experience. You can send us your drawings, we can design and produce as your request.
We welcome your visiting to our factory for further discussion.
