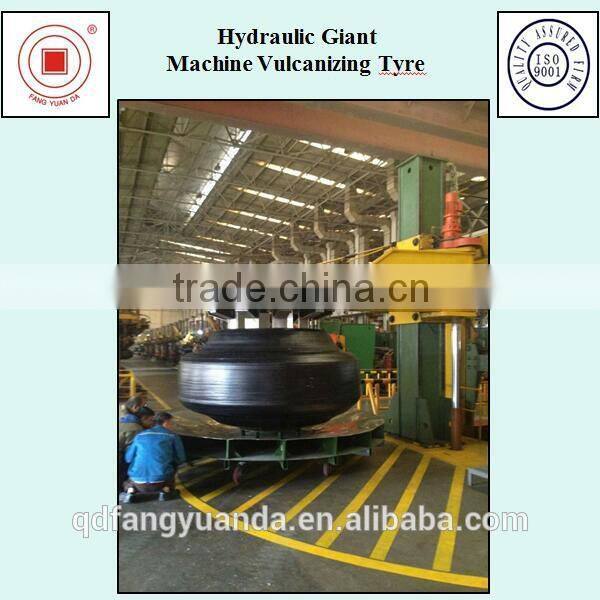

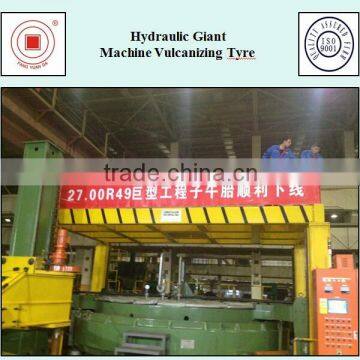

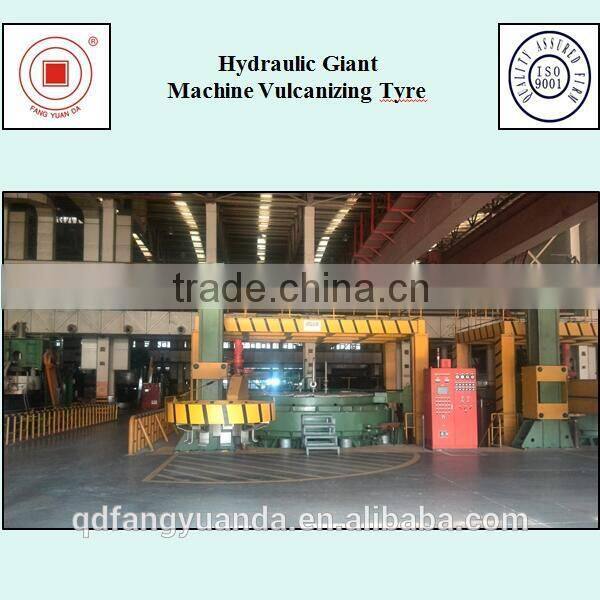

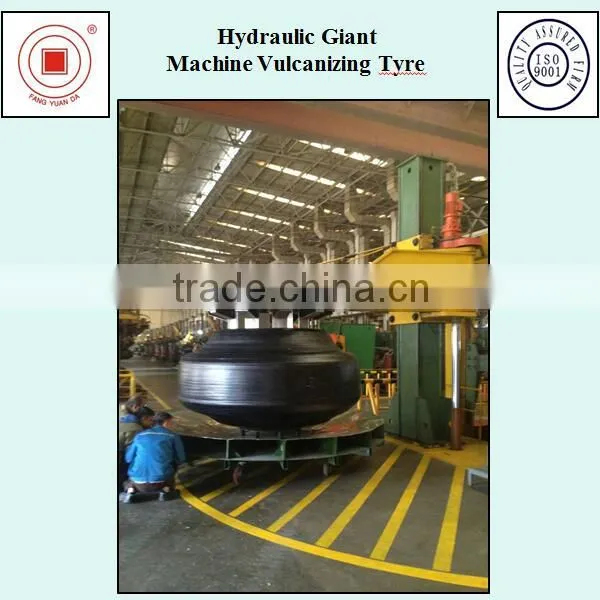

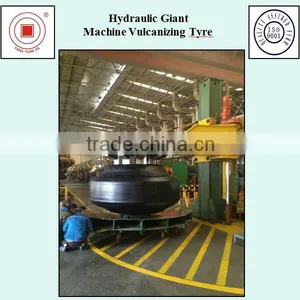

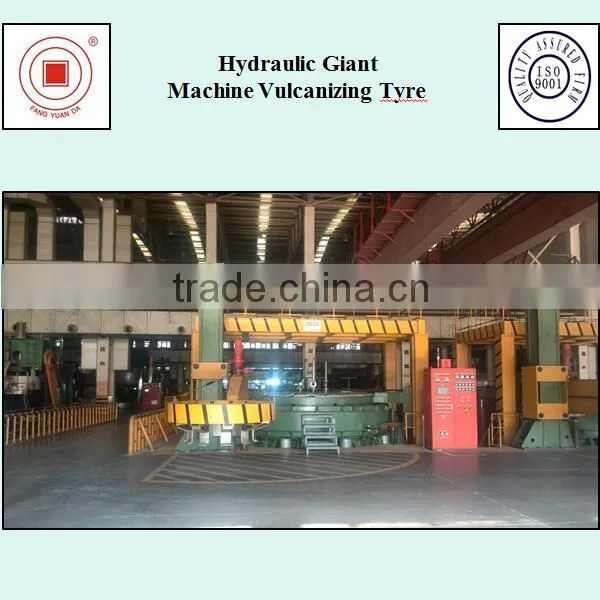

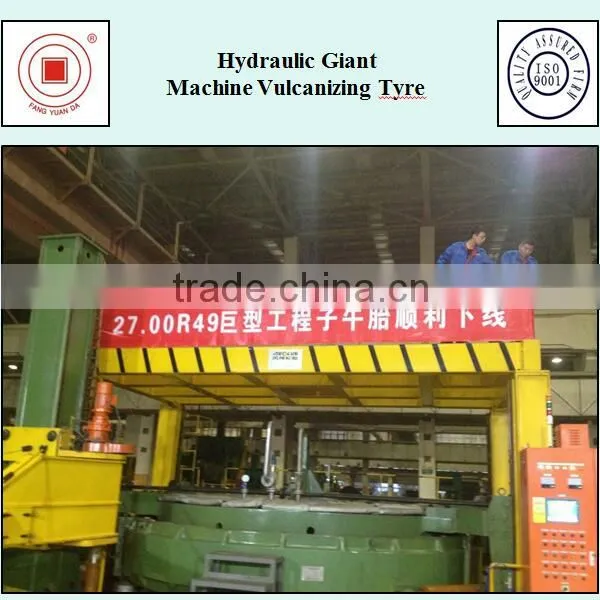

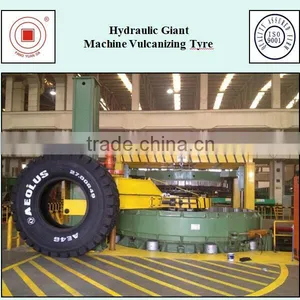

Hydraulic Giant Machine Vulcanizing Tyre
We manufacture many and various machine vulcanizing tyre with more than 20 years' OEM and ODM expeience.
Machine Vulcanizing Tyre - Mechanism Features
- This machine vulcanizing tyre adopts gantry moving mechanism, single mould and clamping ring type.
- The upper mould and beam adopts vertical lift and translation mode. The bladder control mechanism is B type.
- This machine vulcanizing tyre is configured with segmented mould driving device.
- This machine vulcanizing tyre adopts programmable controller and data processor as man-machine interface with OSD (on screen display), which make it visual, highly reliable, convenient change process, etc.
This hydraulic machine vulcanizing tyre is applicable to vulcanize giant rubber radial tire. Using this hydraulic vulcanizing machine, you can achieve the whole process of rubber tyre production from uncuredrubber raw embryo to a tyre, including installing embryos, forming and vulcanizing and unloading. The whole process can be achieved to single automatic cycle.
Machine Vulcanizing Tyre - Characteristics
- Upper Beam movement type: Vertical lift and translation. It adopts imported sliding element. The mould is aligned repeatedly and can be achieved high precision.
- Mould clamping and shaping is driven hydraulically. The clamping force and shaping force is adjustable.
- Heating type: Steamer Type. This can improve the quality of vulcanization and reduce the energy consumption.
- The control system adopts imported electrical components, high degree of automation control.
Machine Vulcanizing Tyre - Some Product
Item |
Unit |
Specification |
|||
|
In |
145 |
170 |
185 |
212 |
Steam Cabinet Number |
|
1 |
1 |
1 |
1 |
Internal Diameter of Steam Cabinet |
mm |
3700 |
4300 |
4700 |
5400 |
Center Mechanism |
|
BOM |
BOM |
BOM |
BOM |
Diameter of Applicable Bead Ring |
In |
49 |
51 |
57 |
63 |
Maximum Mold Clamping Force |
KN |
23000 |
29000 |
35000 |
46000 |
Segment Mold Model Height |
mm |
1000 |
1200 |
1400 |
1600 |
Maximum External Diameter of Vulcanized Tyre |
mm |
Φ2680 |
Φ3200 |
Φ3580 |
Φ4000 |
FANGYUANDA is a manufacturing company specialized in producing tyre curing press, machine vulcanizing tyre, tyre mold and tyre building drum. We also provide the supporting service, including installation, maintenance, training, etc. We have the ability to develop powerful design and we can design according to customer’s request.
Our products of all-steel giant machine vulcanizing tyre (105-212 inch machine vulcanizing tyre) and all-steel giant segmented tyre mold (27R49-59/80R63) have got Chinese Patent and have a high market share.
- After more than 20 years of continuous efforts and development, with our strengths in China’ s rubber machinery industry, our business of complete sets machines have covered rubber machinery and machine vulcanizing tyre and tyre mold industry.
- According to your drawings, we can manufacture quality products.
- We have the capability of establish the whole plant, technology transfer, technical advisory services and transformation.
- In order to ensure and improve the quality of our export products, we take various effective methods to track and supervise each procedure from raw materials procurement, manufacturing, commissioning and inspection during each steps.
- We own GB/T19001-2008/ISO 9001: 2008 quality management system certification and get Chinese Patent of all-steel giant machine vulcanizing tyre and segment tyre mould by cooperating with Qingdao Science and Technology University and Nanjing Industry University.
1. Are you a trade company or manufacturer?
We are a manufacturer located in Qingdao City, Shandong Province, China. We have accumulated more than 20 years' manufacturing experience in tyre mould, tyre curing press, machine vulcanizing tyre, tyre building drum, etc.
2. Do you have own export license?
Yes, we have our own export license and we started exporting in 2008. We have exported our equipments to Belgium, America, Brazil, Korea, Sri Lanka, Iran, Ethiopia, and many other countries.
3. Does your company accept OEM/ODM?
Yes, we have more than 20 years' OEM and ODM experience. You can send us your drawings, we can design and produce as your request.
We welcome your visiting to our factory for further discussion.
