Specifications
compass,3D electronic compass with 80 degrees tilt compensated1:Heading accuracy:0.5 degree
2:two-axis tilt accuracy:0.08de

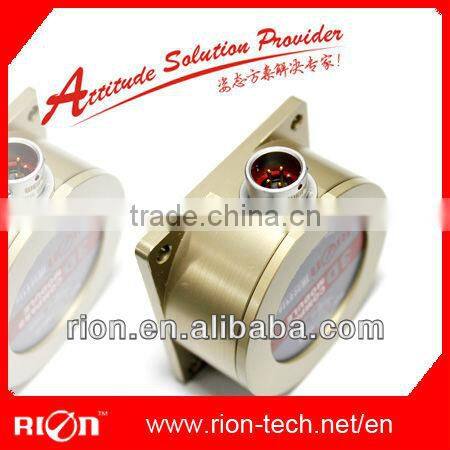

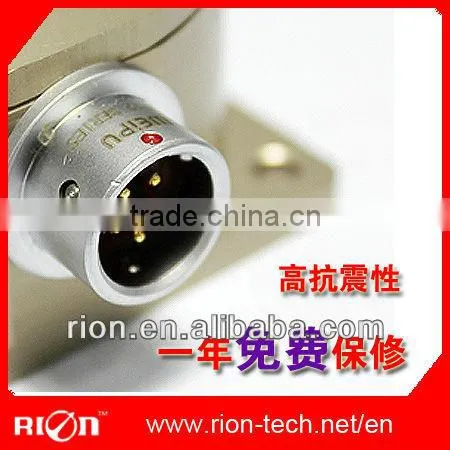

DCM308 heading sensor digital compass, digital measuring compass
DCM308 is a high accuracy electronic compass (three-dimensional compass,compensated compass) with 80 degrees tilt compensated.
Features
include an extra wide tilt range, high accuracy compass heading, low powerconsumption, large signal noise immunity under all conditions, and a large magnetic field measurement range in a small package.
combines USA patented Magneto-Inductive (MI) sensors and measurement circuit technology with a three-axis MEMS accelerometer for unparalleled cost effectiveness and performance. The magnetic sensors and accelerometers are calibrated to operate from -40 to 85°C; hence the measurement is very stable over temperature and inherently free from offset drift.
Features:
1:Heading Accuracy: 0.5 degrees
2:Heading resolution:0.1 degrees
3:pitch accuracy:0.08 degrees
4:Pitch resolution:0.01 degrees
5:Roll accuracy:0.08 degrees
6:Roll resolution: 0.01 degrees
7:Power supply:5V
8:Current draw:29mA(Sleep mode:1mA)
9:Maximum Dip Angle: ±50 degrees
10:RS232/RS485 Optional
11:Small size: L50*49*15mm
12:Small form factor Low power consumption
13:Hard and soft iron correction with quality of calibration score
14:Limited Tilt User Calibration
15:Widely working temperature: -40-+85 degrees celsius
16:Storage temp:-45-+125 degrees celsius
17:Lowest price
Applications:
1:High performance ROV navigation
2:GPS system integration
3:Vehicle tracking
4:Remote terrestrial antenna direction indicators
5:Sonar targeting systems
6:3-axis magnetic field sensing
7:Survey equipment
8:Autopilot
9:Satellite positioning Search
10:Robotic systems
11:Navigation system
