3D Digital Magnetic Compass Sensor With High Precision Heading 360deg Measurement

Cartons

3D Digital Magnetic Compass Sensor With High Precision Heading 360deg Measurement

Description:

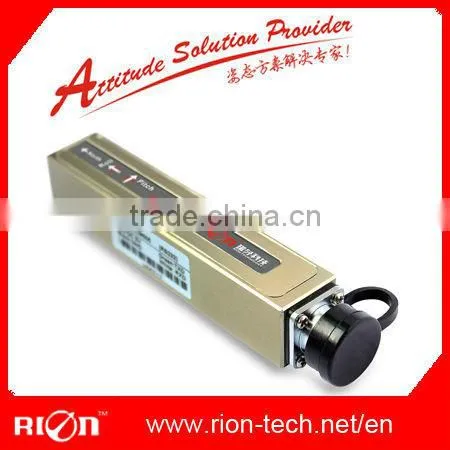

HCM505 is a high accuracy 3-Axis digital compass with 360°Dip angle compensation. Which uses advanced algorithms, with hard iron and soft iron corrections, to provide highly accurate heading information over its extra wide tilt range at latitudes up to 360°. The small size and low power requirements of the HCM505 allow it to fit into today’s size sensitive systems. These advantages make RION Corporation's HCM505 the choice for applications that require highest accuracy and performance anywhere in the world.

Features include an extra wide tilt range, high accuracy compass heading, low powerconsumption, large signal noise immunity under all conditions, and a large magnetic field measurement range in a small package.

The HCM505 combines USA patented Magneto-Inductive (MI) sensors and measurement circuit technology with a three-axis MEMS accelerometer for unparalleled cost effectiveness and performance. The magnetic sensors and accelerometers are calibrated to operate from -40 to 85°C; hence the measurement is very stable over temperature and inherently free from offset drift.

HCM505 adopts high-tech levels such as MCU, Water-proof, dust prevention and anti-corrosion PCB, import cable,wide temperature metal-clad ,and so on, to improve the stability and reliability.

Features:

1.  Heading accuracy: 0.3°~0.5°
2. Roll angle measuring range :±180°
3. Tilt angle resolution: 0.1°
4. Tilt angle accuracy: 0.2°
5. With hard magnetic ,soft magnetic and angle compensation
6. Size:  L113×W20×H20mm
7. Standard RS232/RS485/TTL output interface
8. Wide temperature :  -40°C~+85°C

Applications

1. High performance ROV navigation
2. GPS system integration
3. Vehicle tracking
4. Remote terrestrial antenna direction indicators
5. Sonar targeting systems
6. 3-axis magnetic field sensing
7. survey equipment
8. Autopilot
9. Satellite positioning Search
10. Robotic systems

 Technical Data
