2d Azimuth Angle Value Output Compass Module

Specifications

2d azimuth angle value output Compass Module
Resolution:0.1
Accuracy: 1deg
Small size: 35 mm(customizable)
self-Hard magne

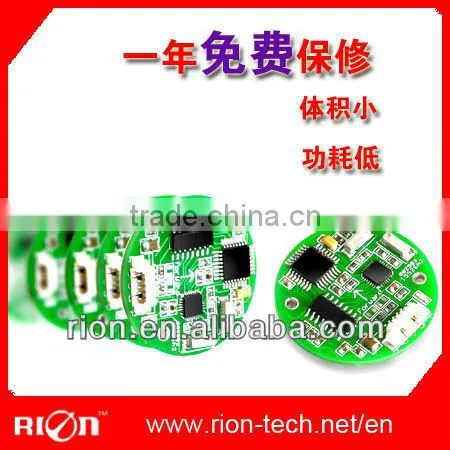

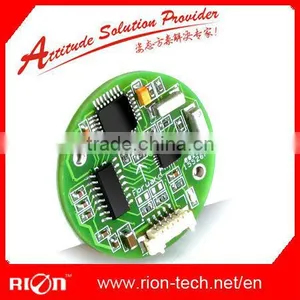

2d azimuth angle value output Compass Module



it is an integrated 2D compass and magnetic field sensing module featuring an on-board microprocessor for control and interfacing, Which introduce advanced international technologies  and measurement circuit technology for unparalleled cost effectiveness and performance.

The measurement is very stable over temperature and inherently free from offset drift.these advantages make RION DCM220 the choice for applications that require a solution that has a high degree of azimuth accuracy, requires little power, and has a small package size.



Features:

Resolution:0.1 °                                  Accuracy: 1 °

RS232/RS485/TTL Optional                   Low power: draws 2 mA at 5 VDC (continuous output)

Small size: 35 mm(customizable)          self-Hard magnetic compensation

Non-volatile memory: retains calibration when power is removed



Applications:

Survey equipment                               underwater exploration.

sonobuoy                                            Electronic warfare

national security and defense            Laser Measurement

Drilling exploration                             Satellite positioning

Driving directions                                High-performance magnetic field sensing

Consumer and hobbyist markets        Vehicle detection

Measuring Range:0-360 degree(Compass placed horizontally)
