Specifications
Low Cost Marine Magnetic Compass1) DCM230 2D Electronic Compass compass sensor

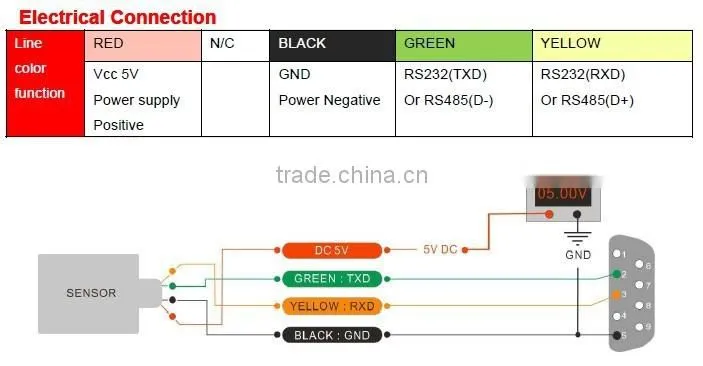

2) connect to PC by RS232 full-duplex
DCM230 Low Cost Marine Magnetic Compass With Real-tim Heading Output
General Description
The DCM230B is a 2D electronic compass, measuring heading 0 ° to 360 ° , using our patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass get the best results through the plane rotation of calibration method in the magnetic interference environment , because it is a plane compass , this product with excellent performance when to be used in the plane working environment , e.g the heading data will occur error if the tilt angle bigger than ± 5 ° this environment . DCM230B use RS232 or TTL level output interface, output baud rate is 9600bps, small size, low power consumption, strong practical applications and diversity application occasions, can accept customized based on any customer request.
Features:
- Heading accuracy: 1°
- Heading measuring range :360°
- Wide temperature working: -20°C~+70°C
- Size: L50×W42×H15mm
- Standard RS232/RS485/TTL output interface
- Can accept other functions customized
- With hard magnetic ,soft magnetic and inclination compensation
- DC 5V power supply
Application:
- Satellite antenna search satellite
- Various robots
- GPS integrated navigation
- Antenna servo control
- Vehicle-mounted rearview mirror
- Tower crane control
- Geomancy compass
- Various positioning integrated
