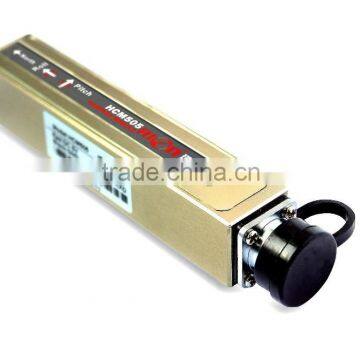

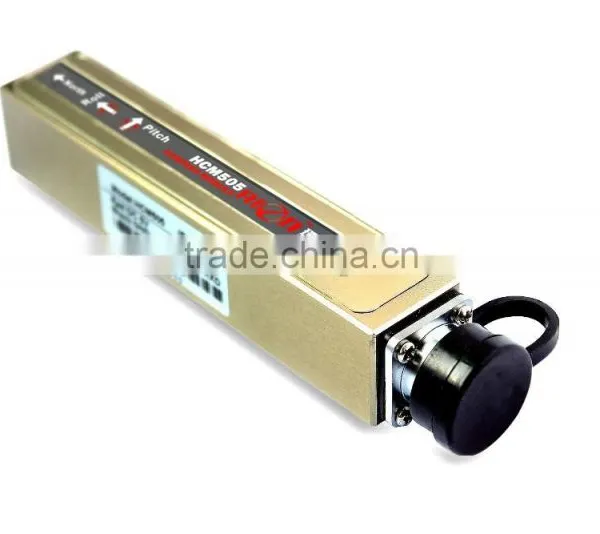

0.3deg High Accuracy Digital Compass With Roll +/-180deg Pitch +/-90deg MADE IN CHINA
Description:
HCM505 is a high accuracy 3-Axis digital compass with 360°Dip angle compensation. Which uses advanced algorithms, with hard iron and soft iron corrections, to provide highly accurate heading information over its extra wide tilt range at latitudes up to 360°. The small size and low power requirements of the HCM505 allow it to fit into today’s size sensitive systems. These advantages make RION Corporation's HCM505 the choice for applications that require highest accuracy and performance anywhere in the world.
Features include an extra wide tilt range, high accuracy compass heading, low powerconsumption, large signal noise immunity under all conditions, and a large magnetic field measurement range in a small package.
The HCM505 combines USA patented Magneto-Inductive (MI) sensors and measurement circuit technology with a three-axis MEMS accelerometer for unparalleled cost effectiveness and performance. The magnetic sensors and accelerometers are calibrated to operate from -40 to 85°C; hence the measurement is very stable over temperature and inherently free from offset drift.
HCM505 adopts high-tech levels such as MCU, Water-proof, dust prevention and anti-corrosion PCB, import cable,wide temperature metal-clad ,and so on, to improve the stability and reliability.
Features:
- Heading accuracy: 0.3°~0.5°
- Roll angle measuring range :±180°
- Tilt angle resolution: 0.1°
- Tilt angle accuracy: 0.2°
- With hard magnetic ,soft magnetic and angle compensation
- Size: L113×W20×H20mm

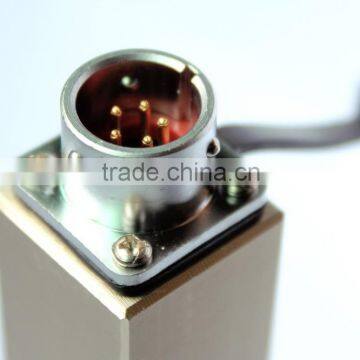

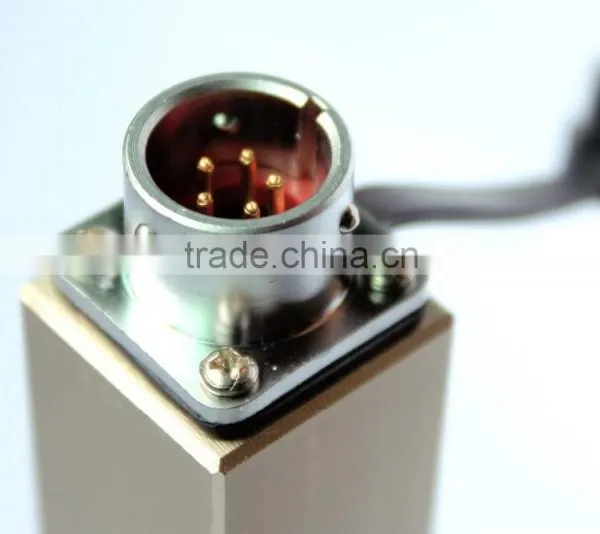

- Standard RS232/RS485/TTL output interface
- Wide temperature : -40°C~+85°C

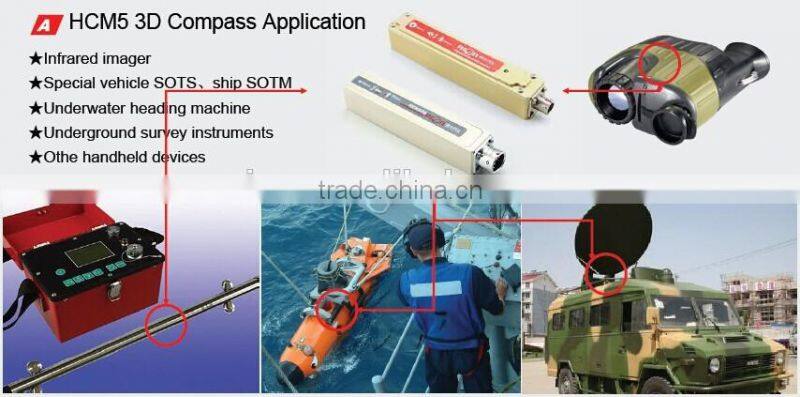

Applications
- High performance ROV navigation
- GPS system integration
- Vehicle tracking
- Remote terrestrial antenna direction indicators
- Sonar targeting systems
- 3-axis magnetic field sensing
- survey equipment
- Autopilot
- Satellite positioning Search
- Robotic systems
Technical Data
Compass heading parameter | The best heading accuracy | 0.3° tilt <10° |
1.0° tilt <180° | ||
Resolution | 0.1° | |
Compass tilt parameter | Pitch accuracy | 0.1°<15°(Measuring range) |
0.1°<30°(Measuring range) | ||
0.1°<60°(Measuring range) | ||
0.2°<90°(Measuring range) | ||
Pitch tilt range | ±85° | |
Roll accuracy | 0.1°<15°(Measuring range) | |
0.1°<30°(Measuring range) | ||
0.1°<60°(Measuring range) | ||
0.2°<180°(Measuring range) | ||
Roll tilt range | ±180° | |
Resolution | 0.1° | |
Calibration | Hard iron calibration | Yes |
Soft iron calibration | Yes | |
Magnetic field interference calibration method | 24 points(3D calibration) | |
Physical features | Dimension | L113×W20×H20mm |
Weight | 20g | |
RS-232/RS485/TTL interface connector | 5PIN connector | |
Interface features | Start delay | <50MS |
Maximum output rate | 20Hz/s | |
Communication rate | 2400 to19200baud | |
Output format | Binary high performance protocol | |
Power | Power supply | (Default)DC+5V |
(Customized)DC9~36V | ||
Current(Maximum) | 20mA | |
Ideal mode | 18mA | |
Sleep Mode | TBD | |
Enviroment | Operating range | -40℃~+85℃ |
Storage temperature | -40℃~+100℃ | |
Resistance shock performance | 2500g | |
Electromagnetic compatibility | According to EN61000 and GBT17626 | |
MTBF | ≥40000 hours/times | |
Insulation resistance | ≥100M
| |
Shock resistance | 100g@11ms,3Times/Axis(half sinusoid) | |
Anti-vibration | 10grms,10~1000Hz | |
Weight | 80g(without cable) | |
Electrical Connection
Line color function | BLACK | WHITE | BLUE | BROWN | GRAY |
GND Power Negative | RS232(RXD) Or RS485(D+) | RS232(TXD) Or RS485(D-) | Vcc 5V Power supply positive | FACTORY Use only |
