Three Axis Magnetic Compass Measure Tilt and Heading Angle

1pcs/box ,100pcs/ctn

Three Axis Magnetic Compass Measure Tilt and Heading Angle

Parameter

General Description
HCM505B is a high accuracy 3D compass single board, elongated volume,the width is only 1.6CM, sealed in aluminum enclosure with IP67 water-proof grade, more suitable for drilling measurement. it uses advanced hard iron and soft iron calibration algorithm, it can still provide the high precision heading information in the roll angle 360 ° to any tools surface .it has the characteristics of small and low power consumption, and more suited to today's miniaturization sensitive measurement system.
HCM500B integrated patented three -axis fluxgate technology, real-time solver heading data through CPU , and use a three-axis accelerometer to proceed with heading compensation for a wide range tilt angle, belongs to the high-performance, high stability military grade products , HCM500B with small size, low power consumption, widely used in the antenna securely, vehicle and system integration etc. many fields.

Features

• Heading accuracy: 0.3°~0.5°
• Roll angle measuring range :±180°
• Tilt angle resolution: 0.1°
• Tilt angle accuracy: 0.2°
• With hard magnetic ,soft magnetic and angle compensation
• Size: L113×W20×H20mm
• Standard RS232/RS485/TTL output interface
• Wide temperature : -40°C~+85°C

Application

• Satellite antenna search satellite
• Marine navigation surveying and mapping
• GPS integrated navigation
• Antenna servo control
• Gun emission system
• Infrared imager
• Laser range finder
• Map for plotter
• ROV underwater robot navigation
• Oceanography measurement instruments
• Special occasion robot
• Unmanned aircraft

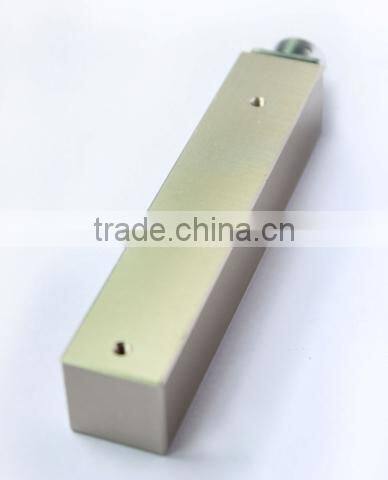

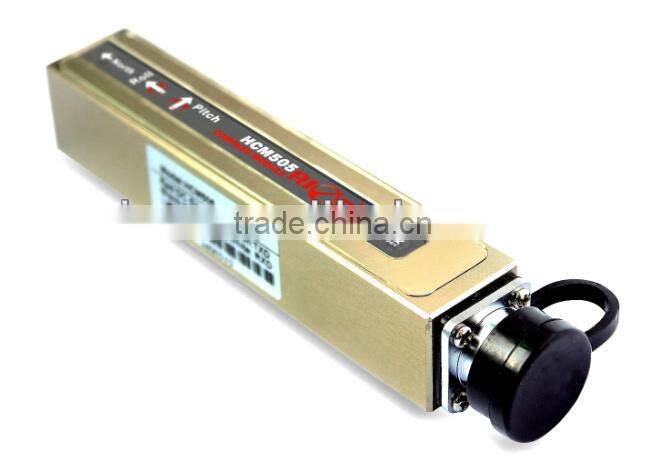

Product Show

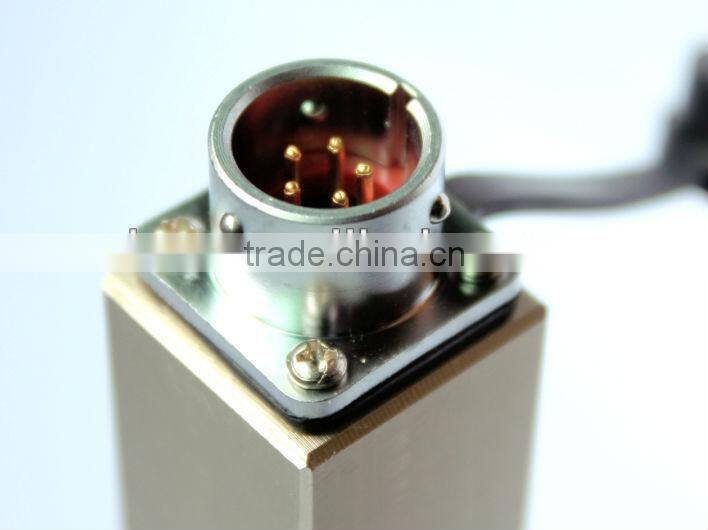

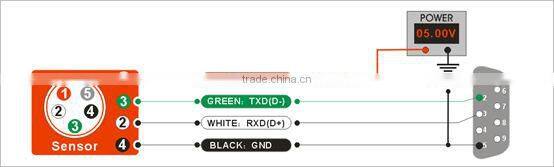

Electrical Connection

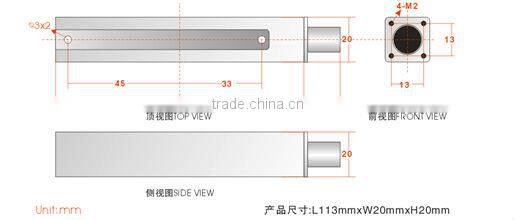

Dimension

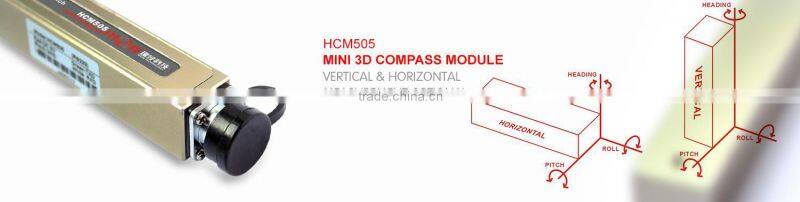

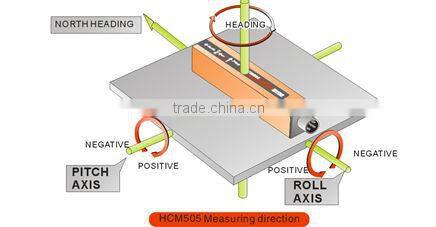

Measuring Directions&Fix

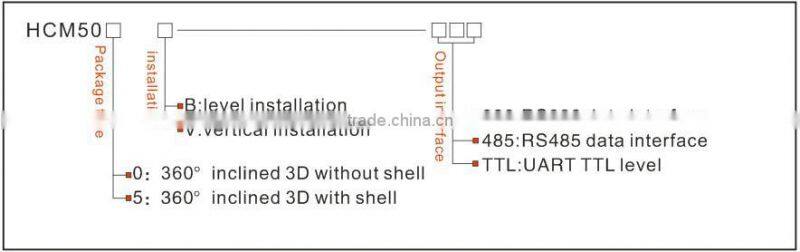

Order Information

RION’s 3D Software

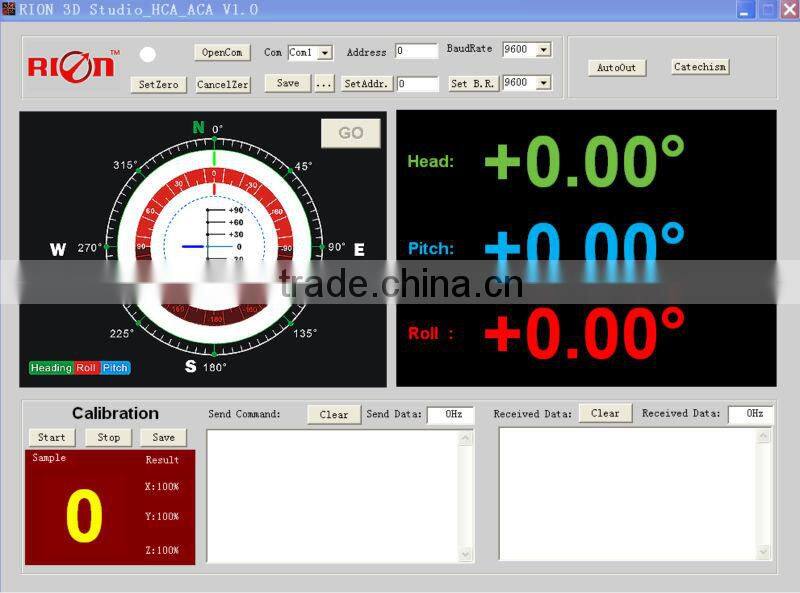

You can download the RION angle debugging software from RION’s official website for the preliminary angle debugging, also you Can download public version of the comassistant software on line for using
