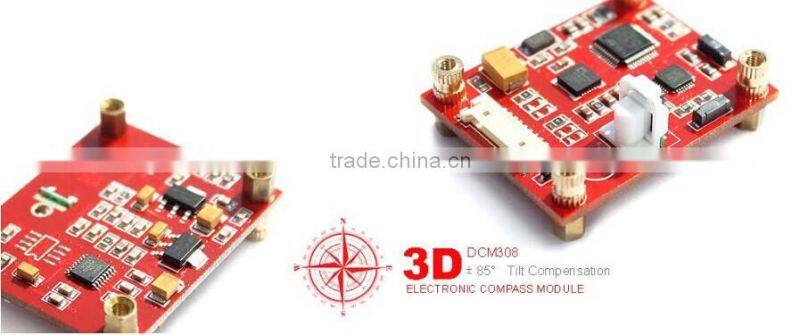

High Reliable Best Measurement Electronic Digital Compass From China Manufacturer
General Description
DCM301B is a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process. Using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM301B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±90°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.
DCM301B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.
Features:
- Heading accuracy:0.5°~0.8°
- Tilt angle measuring range :±90°
- Tilt angle resolution: 0.1°
- Tilt angle accuracy: 0.3°
- Wide temperature : -40°C~+85°C
- Size: L43×W35×H8mm
- With hard magnetic ,soft magnetic and angle compensation
- DC 5V power supply
- 2D tilt calibration
- Standard RS232/RS485/TTL output interface
Application :
- Satellite antenna search satellite
- Marine navigation surveying and mapping
- GPS integrated navigation
- Antenna servo control
- Gun emission system
- Infrared imager
- Laser range finder
- Map for plotter
- ROV underwater robot navigation
- Oceanography measurement instruments
- Special occasion robot
- Unmanned aircraft
Electrical Characteristics
Compass heading parameter |
The best heading accuracy |
0.5° tilt<10° |
1.0° tilt<30° | ||
2.0° tilt<40° | ||
2.5° tilt<70° | ||
Resolution |
0.1° |
|
Compass tilt parameter |
Pitch accuracy |
0.1°<15°(Measuring range) |
0.2°<30°(Measuring range) | ||
0.3°<60°(Measuring range) | ||
0.3°<85°(Measuring range) | ||
Pitch tilt range |
±85° |
|
Roll accuracy |
0.1°<15°(Measuring range) |
|
0.2°<30°(Measuring range) | ||
0.3°<60°(Measuring range) | ||
0.3°<85°(Measuring range) | ||
Roll tilt range |
±85° |
|
Resolution |
0.1° |
|
Compass tilt the best compensation angle range |
<40° |
|
Calibration |
Hard iron calibration |
Yes |
Soft iron calibration |
Yes |
|
Magnetic field interference calibration method |
Plane rotation in 1circle(2D Calibration) |
|
Physical features |
Dimension |
L43×W35×H8mm |
Weight |
20g |
|
RS-232/RS485/TTL interface connector |
5PINconnector |
|
Interface features |
Start delay |
<50MS |
Maximum output rate |
20Hz/s |
|
Communication rate |
2400 to 19200baud |
|
Output format |
Binary high performance protocol |
|
Power |
Power supply |
(Default)DC+5V |
(Customized)DC9~36V | ||
Current(Maximum) |
40mA |
|
Ideal mode |
30mA |
|
Sleep Mode |
TBD |
|
Enviroment |
Operating range |
-40℃~+85℃ |
Storage temperature |
-40℃~+100℃ |
|
Resistance shock performance |
2500g |
|
Electromagnetic compatibility |
According to EN61000 and GBT17626 |
|
MTBF |
≥40000 hours/times |
|
Insulation resistance |
≥100M
|
|
Shock resistance |
100g@11ms,3Times/Axis(half sinusoid) |
|
Anti-vibration |
10grms,10~1000Hz |
|
Weight |
40g(without cable) |
|
Electrical Connection
Line color function |
Pin1 Black |
N/C |
Pin7 Green |
Pin8 White |
Pin9 Red |
|
GND Power negative |
|
RS232(TXD) Or RS485(D-) |
RS232(RXD) Or RS485(D+) |
POWER+ Power supply positive |
