Specifications
blister cartooning machine1. PLC Control
2. Servo Dragging
blister cartooning machine
SUMMARIZE
To decrease the cost and packing products cross pollution, our company develop these two machines in line.
The main part of this line is our DPB series blister packaging machines connecting the ANTZ series cartooning machines through conveyor device and the and controlled by PLC. It can make blister packing, unqualified products rejection, leaflets folded and sealing carton.

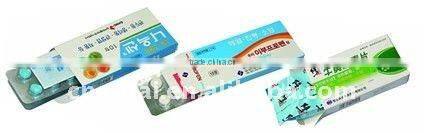

This equipment suits to pack capsules, tablets and ampoules into AL/PVC or Paper/PVC blisters then connect with cartooning machine.
Note we can manufacture the Filling Machine and Cartoning Machine in line according to customers’ requirements.
Aluminum Plastic Main Technical Parameter
Punching Frequency |
6~50cycles/min |
|
Punching sheet |
4blisters/stroke |
|
Adjustable Stroke |
40~160mm |
|
Productivity |
1000-12000sheets/hour |
|
Max Forming Area and Depth |
245×155×26mm |
|
Total Power |
380V 50Hz 5.5Kw |
|
Specifications of Packing Material |
Medical PVC |
250×0.25(0.15~0.50mm) |
PTP AL Foil |
250×0.02mm |
|
Air-Consumption |
≥0.22m3/min |
|
Pressure |
0.5~0.6MPa |
|
Overall Dimension |
2900×7200×1550mm |
|
Weight |
1600kg |
|
Carton Main Technical Parameter
Electric power |
AC220V phases and five-wires 50Hz total power 1.5kw |
Production capacity |
Rotation speed 50-100b/min Speed of folding machine:50-80p/min |
Volume of consumption |
20m3/h(pressure 0.5-0.7Mpa) |
Leaflet |
Quality requirement 50-65g/m2 |
Unfolded Leaflet Specifications(80-300)×(70-210)mm | |
Folded Leaflet Specifications(70-210)×(20-40)mm | |
Overall dimension(mm) |
2800×880×1800 |
Weight |
Approximately1200kg |
