Specifications

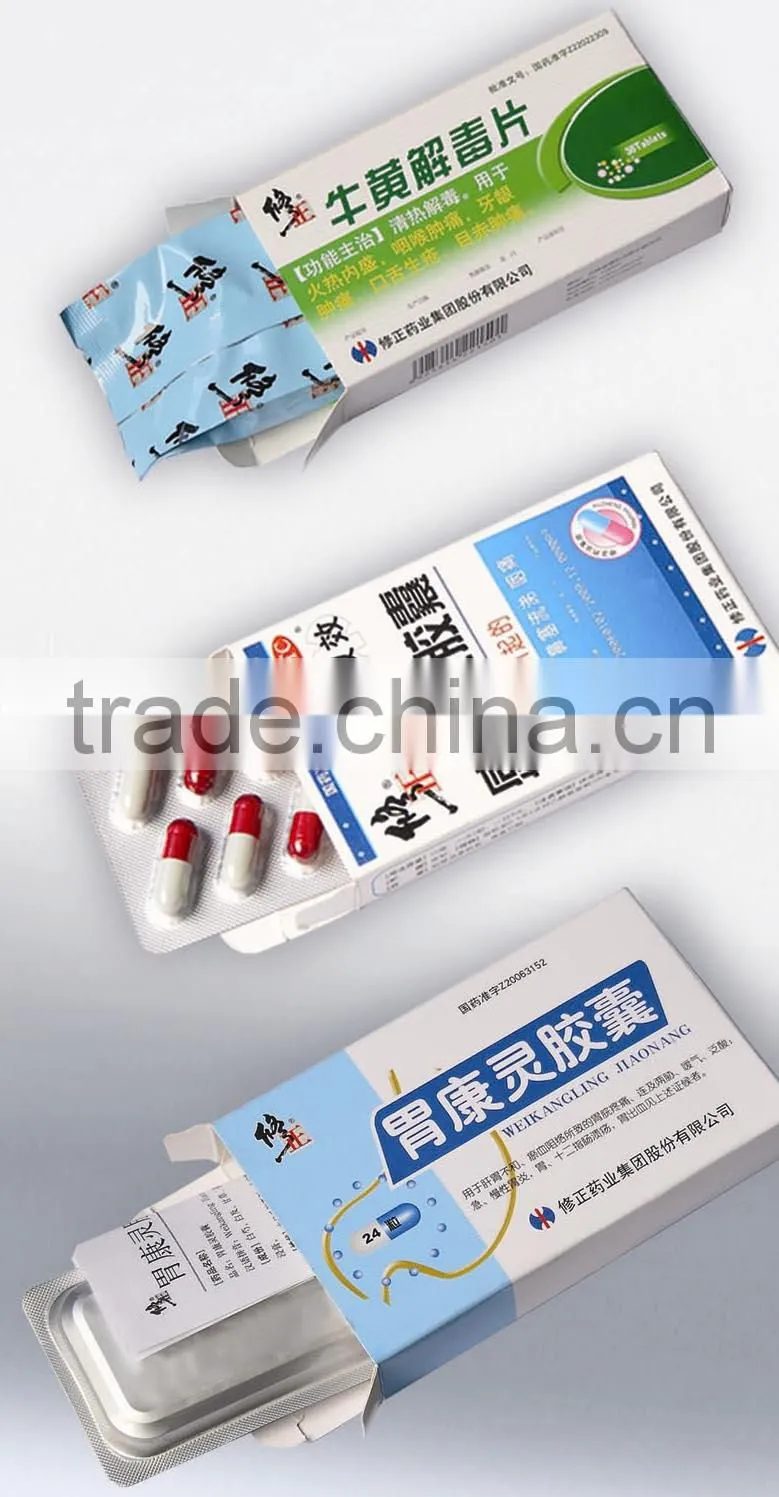

automatic encasing machine is suitable for cardboard case packaging of blister package for blister package and similar package.

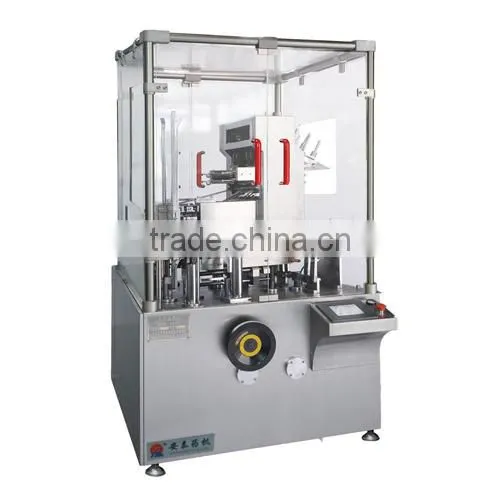

automatic encasing machine
This machine is suitable for cardboard case packaging of blister package for blister package and similar package. It consists of direction folding (1-4 folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.
Features
1. International famous brand of electric components such for PLC touch screen, frequency inverters etc.
2. Adopt human-machine operation system.
3. Automatically displaying device for trouble, speed and finished products counting.
4. Automatic detection and rejection device for lacking of blisters/goods or leaflets.
5. Stability performance with lubricate setting and controlling.
Main Technical Parameters
Item |
|
Parameters |
Encasing speed |
|
60-120box/min |
box |
Quality requirement |
250-350g/m2 |
Dimension range (L x W x H) |
(65-125)mm x (35-90)mm x (12-60)mm |
|
Leaflet |
Quality requirement |
50-65g/m2 |
Unfolded leaflet specification |
(80-300)mm x ( 70-210)mm |
|
Folded leaflet specification(1-4) |
(70-210)mm x (20-40)mm |
|
Compressed air |
Working pressure |
0.5-0.7mpa |
Air consumption |
120-160L/min |
|
Power supply |
220v 50hz |
|
motor power |
0.75kw |
|
Machine dimension |
1140 x 1160 x 1800(mm) |
|
Machine weight |
1000kg |
|
