paving machines for sale in south africa
- 1000 Set / Sets per Month
- qingdao shanghai tianjin
- T/T L/C D/P D/A Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Other, Concrete,cement,sand,fly ash |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 80640block/class | Place of Origin: | Henan, China | Brand Name: | TONGLI |
Model Number: | QYT8-15 Brick making machine price | Voltage: | 380v,220v | Power: | 34.5KW |
Dimension(L*W*H): | 7200*2100*2825mm | Certification: | ISO&BV CE Certification | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

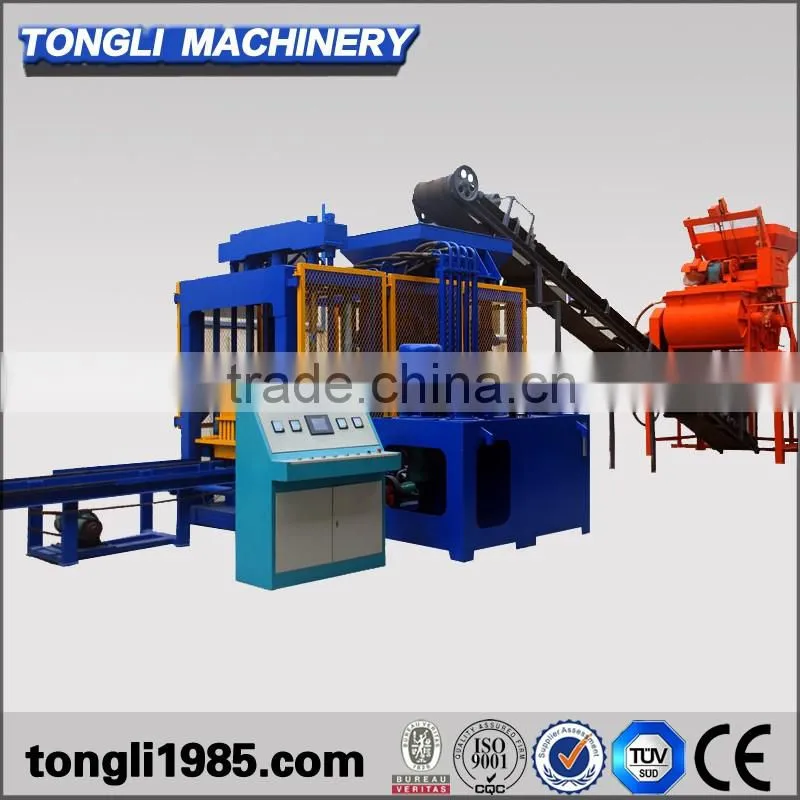

Automatic brick making machine price / Brick making machine price in india
Introductions of Automatic brick making machine price / Brick making machine price in india
We are capable of manufacturing and supplying the machines either in manual, semi automatic or automatic operations. Through years of research & development efforts and continuos cultivation of creative and innovative mindset and spirit among our employees, we have been able to produce machines in highest quality & reliability, with competitive market pricings. We emphasis on customer services and our employees are always ready to serve our customers in their best efforts and commitments.
Our sales office is located at Zhengzhou City,Henan province which is about 689 km away from Beijing City, while our factory is located in the central of China. Currently, we have a total workforce of 100 people that support the entire operations of the company. In addition, which we assist them in marketing and servicing their block making machines in various countries.
Most of our machines are for export, and have been delivered and installed in countries such as Australia, Pakistan, Papua New Guinea, Vanuatu, UAE, Oman, Haiti, Mali, Tanzania, Djibouti and Somalia, Zimbabwe.
Main Technique Performance and Parameters of Automatic brick making machine price /Brick making machine price in india
1. This machine is designed by super steel structure, it use the import material in order that the machine is more stable and reliable.
2. It has vibrating system that is of high efficiency and superpower. Make use of the hydraulic pressure controlled by computer, the machine can realize vertical in-phase shake, frequency transform, blake, composite output ,supply the vibrating strength to the molding box evenly, enhance the compactness and the life of molding box.
3. The equipment adopt the PLC system and controlled by computer, thus can analysis the random signal, diagnose the fault, set the parameter that ensure the production is in safe condition.
4. Professional buttress machine is equipped, it can produce large amount bricks easily and automatically, thus can save labor, maintance yard and the circulating fund investment.
5. Partially closed type material disposal system was adopted in this machine. This technology can make the material disposal more fast and evenly.
Technical Specifications
Model | QT6-15 | QT8-15 | QT10-25 |
Standard | JC/T920-2003 | JC/T920-2003 | JC/T920-2003 |
Vibration Pressure(*KN) | 70 | 75 | 75 |
Production/mould | Hollow block (390×190×190mm)6pcs/mold | Hollow block(390X190X190mm)8pcs/mold | Hollow block (390x190x190mm) 10pcs/mold |
Hollow block(245×115×90mm) 18pcs/mold | Hollow block (245X115X90mm)21pcs/mold | Hollow block (245X115X90mm)26pcs/mold | |
Solid Brick(245×115×53mm)36pcs/mold | Solid brick(240X115X53mm)42pcs/mold | Solid brick(240×115×53 mm) 48 pcs/mold | |
Cycle Time(s) | 15 | 15 | 15 |
Production/day (8 hours) | Hollow block(390×190×190mm)11500 pcs | Hollow block(390×190×190mm) 15360pcs | Hollow block (400×200×200mm)19200pcs |
Hollow block(245×115×90mm) 34000pcs | Hollow block(245×115×90mm) 40320pcs | Hollow block(245×115×90 mm) 49920pcs | |
Solid brick(240×115×53mm) 69120pcs | Solid brick(240×115×53mm) 80640pcs | Solid brick(240×115×53mm)92160pcs | |
Motor Power(kw) | 34.5 | 34.5 | 34.5 |
Water Consumption()T | 5-9 | 5-10 | 5-10 |
Space of Ground | 3600 | 5200 | 6600 |
Gross Weight(T) | 9.8 | 11.6 | 13.8 |
Machine Dimension(mm) | 6790×2205×2780 | 7200×2100×2825 | 7200×2290×2825 |
Main materials | Cement,crushed stone dust, gravel, sand, coal fly ash and some industrial wastes | ||
Products of machine | Hollow blocks, Solid bricks and so on. |

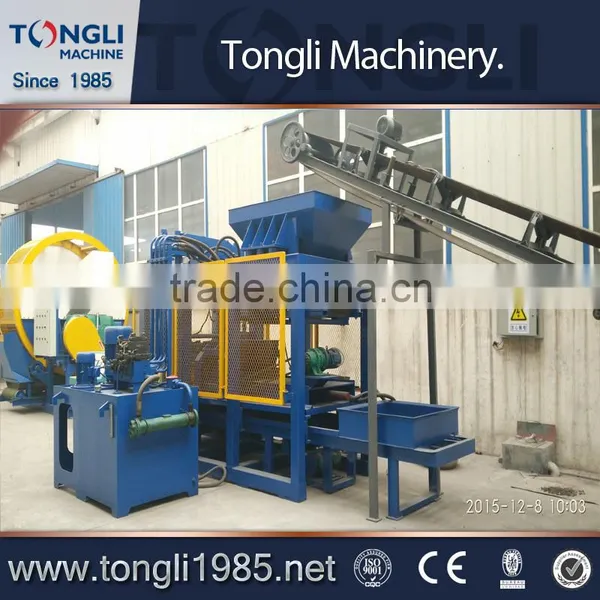

The whole production line of Automatic brick making machine price / Brick making machine price in india
The whold production uses hydraulic system,PLC system controller.

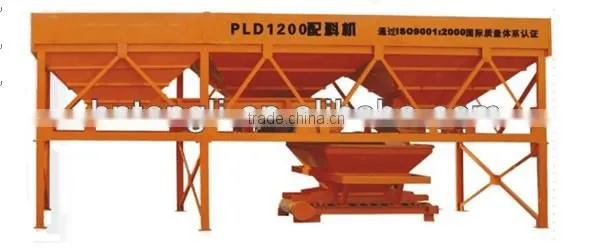

1.Dosing machine
This is the starting point of the production process.It consists of three loading bins and one weighing bin.It also contains belt conveyors to convey materials from loading bins to weight bin.Batching and weighing is done by PLC control.We can load three different types of material into loading bin.
2.Mixer machine
All the ingredients are mixed in this mixture machine. The mixing time and speed in controlled by PLC. The inbuilt water pump adds water to mix automatically, as per requirement.
| Item | Specifications |
1 | Charge volume(L) | 800 |
2 | Discharge volume(L) | 750 |
3 | Capacity(m³/h) | >=25 |
4 | Max diameter (pebbles/breakstone)mm | 75/55 |
5 | Rotate speed of blades(r/min) | 30.5 |
6 | Dimension(LxWxH)mm | 9200x3130x6880 |
7 | Total weight(kg) | 4000 |
8 | Discharge height(mm) | 1500 |

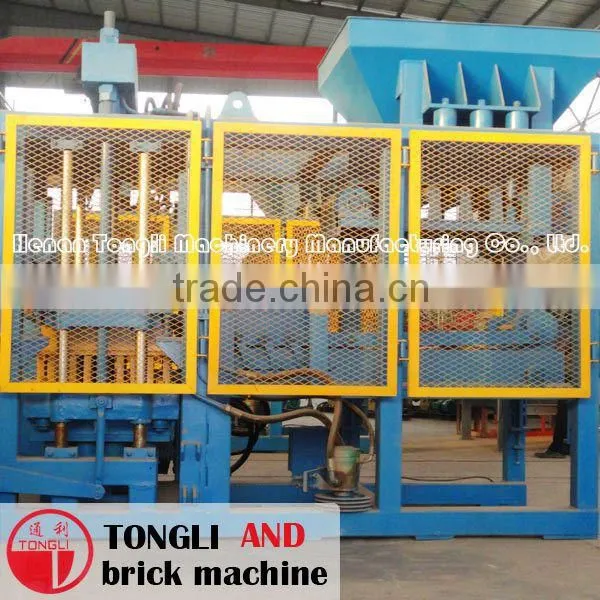

3.Automatic brick making macine price / Brick making machine price in india

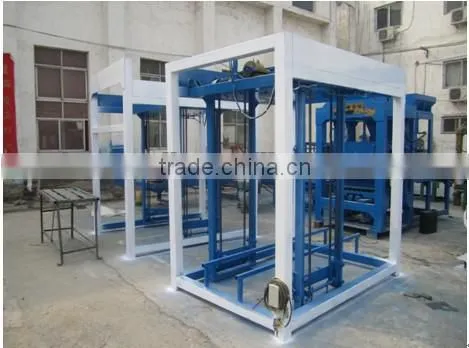

4.Auto stacker machine
This lifts the pallets carrying the bricks/blocks,and stacks them on 5to 6 layers automatically.
5.Opertation cabinet
This consists of the operator PLC control along with his seat.This is the centralized control for the whole plant.

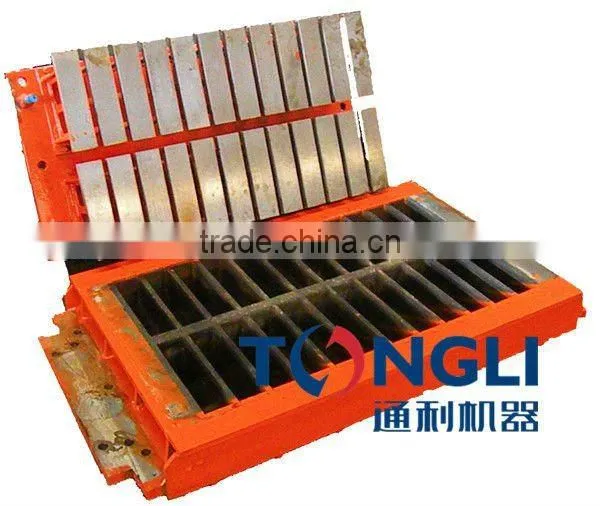

6.Brick molds
The brick mold is made according to your requirements. we can make different kinds of brick molds.

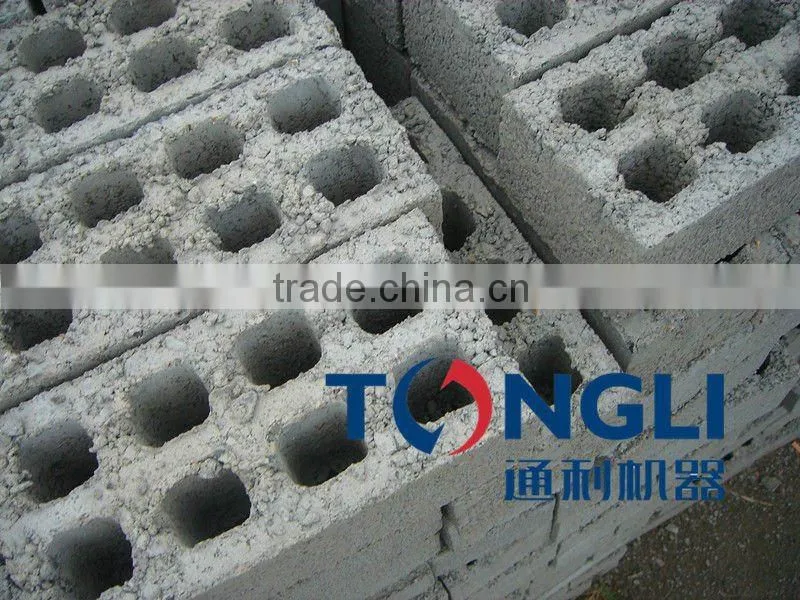

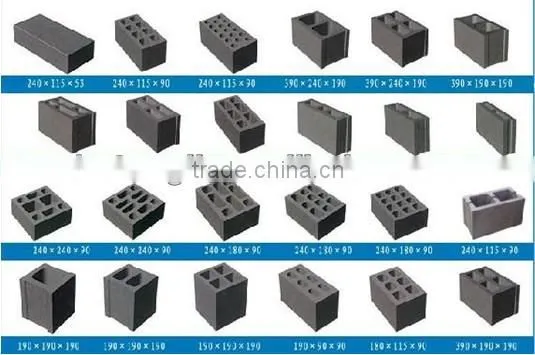

7.Brick samples and brick size

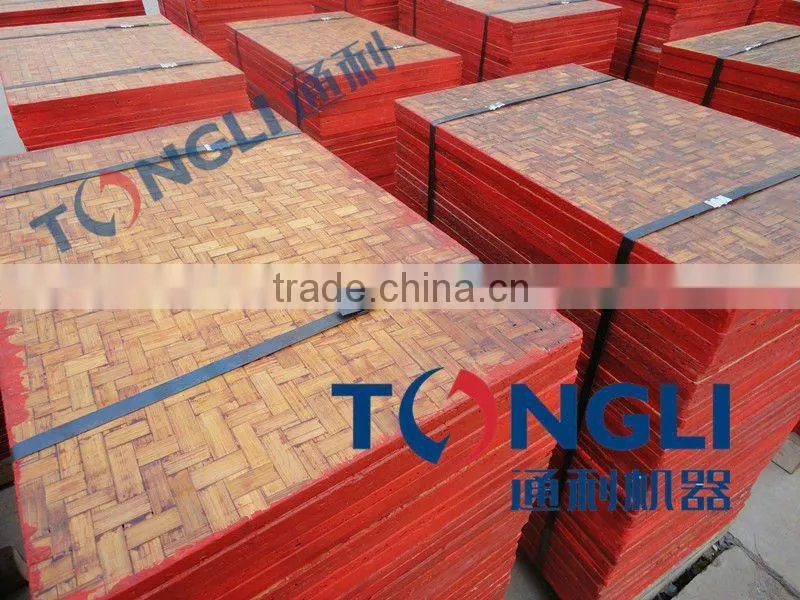

8.Brick pallets
How to make bricks use Automatic brick making machine price / Brick making machine price in india
A piece of concrete brick or block is made of concrete that’s been molded into the correct shape, then allowed to harden and cure. Concrete brick and block making machines consist of a steel framework that holds the other components in place. There’s a chute or hopper for pouring the wet cement, a frame that holds the metal concrete-block molds, a tamper for compacting the concrete in the molds and a mechanism for transferring the molded blocks out of the machine for drying and curing. The machine is set up with the molds appropriate to the blocks or bricks to be made. Manual machines typically mold two or four bricks or blocks at a time, while electric, pneumatic or hydraulic block machines make eight to 16 bricks or blocks at a time, depending on brick or block type.
2.Tamped Down
The ratio of Portland cement, sand and crushed stone in the concrete varies depending on the type of brick or block being made. In general, concrete for molding into brick or block has fine particles of sand and stone and low water content, about half the volume of water used for other types of construction concrete. After mixing, the wet cement mix is poured into the brick or block molds, then pressed down with a compacting tamper driven by gravity in manual machines or by a hydraulic or pneumatic ram in powered machines. More concrete is added and compacted again. Powered machines vibrate the concrete mix while it is being compacted. This process continues until the compacting head can’t press any more cement into the mold.
3.Curing Concrete
When compaction is done, the bricks or blocks are freed from the mold and the finished units are slid onto a steel rack, concrete floor or wooden pallet. In small blockyards, the fresh blocks are allowed to sit for a day under cover to fully harden before they are moved outside for curing. In large commercial block yards, fresh block goes onto special racks to be hardened in a steam kiln. After hardening, concrete bricks or blocks are allowed to cure for one to two weeks to develop full strength before being used for building.
4.Standard Sizes
The most common machine-made concrete brick is rectangular, 8 inches tall, 8 inches wide and 16 inches long, with a double hollow core. The most common solid concrete brick made on block machines is a rectangle 8 inches wide, 16 inches long and either 2 inches or 4 inches high. Block machine makers also offer molds to make half-sized blocks and special blocks for paving, lintels, corners, pilasters, columns, chimneys and other special uses.
Our company information of Automatic brick making machine price/Brick making machine price in india
Henan tongli machinery manumacturing Co., Ltd., a China based private company, established since year 1985, is one of the best known manufacturer and exporter of cement brick making machines, sand brick machines, fly ash brick machines, concrete block machines, hollow block machines, interlocking paver machines and curbing block machines. Our main aim is to be one stop shop and to provide total solutions to cement brick, sand brick, fly ash brick, colored brick, concrete block, hollow block, solid block and curbing block making industries.
packaging and shipping of Automatic brick making machine price / Brick making machine price in india
Our services of Automatic brick making machine price / Brick making machine price in india
1.We can make brick machines according to your requirements, brick molds we can also make it.
2.We can provide install machine,train your workers in your country.
3.we can offer one year guarantee.
4.We have professional after-sales workers team,which can deal with any problems of brick machine.
Our customers of Automatic brick making machine price / Brick making machine price in india:
Our certificate of Automatic brick making machine price / Brick making machine price in india
Any questions or ideas about this Automatic brick making machine price / Brick making machine price in india, please feel free to contact me.
Sincerely hope to cooperate with you!!!
