simple concrete brick making machine
- Qingdao Port
- T/T
You May Like
Product Details
| Condition | New | Type | Other, hollow solid bricks | |
| Brick Raw Material | Other, cement ,concrete,fly ash,rock | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 92160pics/shift | Place of Origin | Henan, China | |
| Brand Name | Tong Li | Model Number | 6-15 | |
| Voltage | Local Voltage | Power | 34.5KW | |
| Dimension(L*W*H) | 7100*1600*2610mm | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Configuration
Processing:
electronic batching machine → concrete mixer → The belt conveyor → block molding machine → stacker
The products of baking-free brick machine have many features such as insulation, heat insulation, sound insulation, light weight and anti-seismic. It is widely used in environmental protection and energy saving buildings and urban modern dwellings. It can expand the construction floorage into 3% to 4% (wall thickness of 190mm and clay brick wall thickness of 240mm), while reduce project cost at 30% and shorten the time limit of project at 42%. It can save labor costs at 45% and surface mortar raw materials fee at 50%, heating energy consumption is reduced by 40% to 60% at the same time. Thus, the product is not only advocated by the state but builders also meet the builders’ needs.
The brick has high strength, toughness, and freeze-thaw resistance, resistance to aging and to extend the building life. The Products exceeded national standards through the detection of national building materials testing center.

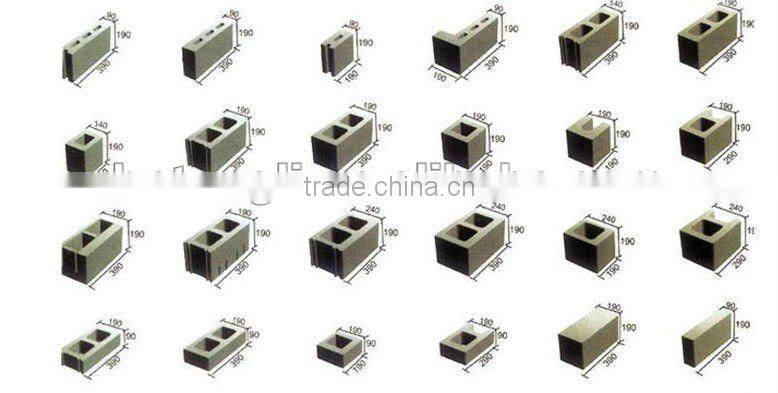

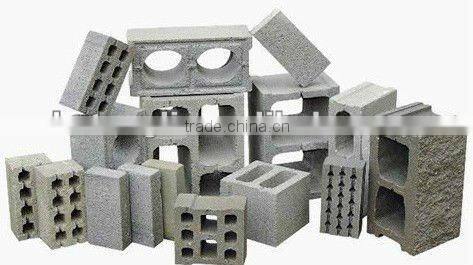

Productions
Technical Parameters
Molding quantity | Molding cycle | Theory production | Machine power | Total weight | Contour dimension | Layer board dimension |
300*190*190pic/mold 11500pic/shift | Around 15s | 69120pics/shift | 34.5kw | 9.8t | 7200*2205*2780mm | 850*780*40mm |
240*115*90 26/mold 34000/shift | ||||||
390*190*53 48pic/mold 69120pic/shift |
Production:
