CATV 75 Ohm Aerial RG6 Coaxial Cable

Name: CATV 75 Ohm Aerial RG6 Coaxial Cable
Brand: Coaxial cable
SKU: 124545889
Availability: InStock

US$ 80 - 500 MOQ: 10 Kilometers

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Coaxial cable

Model Number:

RG6 coaxial cable

Yangzhou Dongbei Electronic Equipment Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Coaxial cable

Model Number RG6 coaxial cable

Type Coaxial

Number of Conductors 1

Specifications

CATV 75 Ohm Aerial RG6 Coaxial Cable
munication RG6 cable
2.RG6/RG59 thin coaxial cable factory
3.Customized with sample

CATV 75 Ohm Aerial RG6 Coaxial Cable

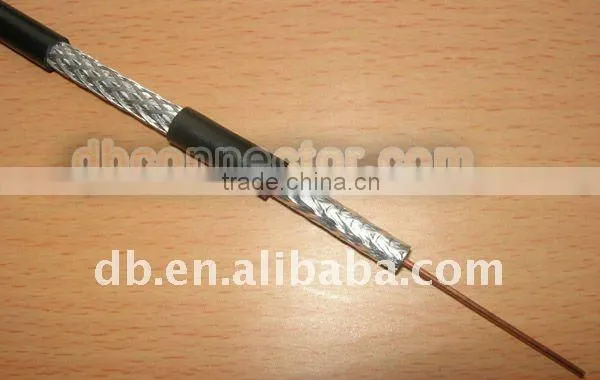

1.Sample :1.02mmCCS 18%+FPE+Bonded Al+96*0.12mm Al /90% +6.9PVC

2.CATV 75 Ohm Aerial RG6 Coaxial Cable Specification:

BASIC CONSTRUCTION :(RG6 Coaxial Cable)
		SHIELD	TRI-SHIELD	QUAD-SHIELD
CONDUCTOR	MATERIAL	BC/CCS	BC/CCX	BC/CCX
CONDUCTOR	Nom.Dia	18AWG	18AWG	18AWG
DIELECTRIC	MATERIAL	Foamed PE	Foamed PE	Foamed PE
DIELECTRIC	Nom.Dia	4.57mm	4.57mm	4.57mm
SHIELD	MATERIAL	AL Foil+AL Braiding	AL-Foil+Braiding of AL +AL-Foil	(AL-Foil+Braiding of AL)*2
	COVERAGE	40%-90%	40%-90%	40%/60%
	METERIAL	PVC/PE	PVC/PE	PVC/PE
JACKET	Nom.Thick.	0.80mm	0.80mm	0.86mm
JACKET	Nom.Dia	6.91mm	6.91mm	6.91mm

3.CATV 75 Ohm Aerial RG6 Coaxial Cable CHARACTERISTICS

coaxial cable rg6 BASIC CHARACTERISTICS
Nominal Impedance		75
Nominal Velocity of Propagation		85
Sparker Test (VAC)		50
SRL(Db)		20
Attenuation	Frequency(MHz)	Maximum(Db/100ft)	Maximum(Db/100m)
	5	0.58	1.9
	55	1.6	5.25
	187	2.85	9.35
	300	3.55	11.64
	450	4.4	14.43
	600	5.1	16.73
	750	5.65	18.54
	865	6.1	20.01
	1000	6.55	21.49
	1450	7.98	26.16
	1800	8.64	27.73
	2100	9.5	31.15
	2250	10	34.03
	3000	11.4	37.5

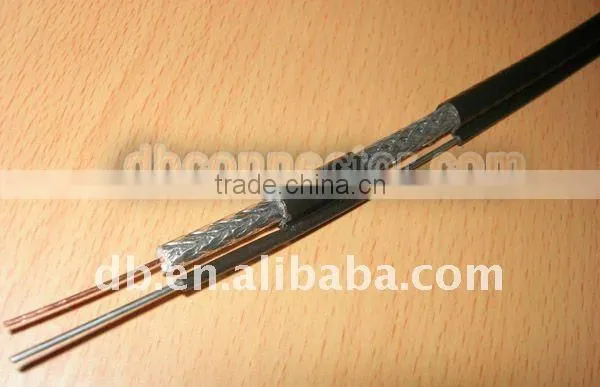

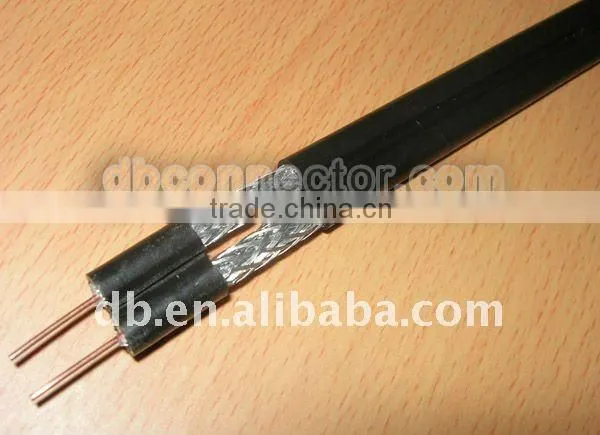

Other Type	RG6 Dual	RG6 with Messenger	RG6 Dual with messenger
