F&C FGP 37 Series 40Mpa Air and Liquid Digital Pressure Sensor
- Shenzhen or guangzhou
- Money Gram Credit Card
You May Like
-
F&C FKP60 Series Three-color Dual Digital LCD Display Negative Pressure Sensor Switch Quality Choice
-
Digital Pressure Sensor ,analog Voltage Output Pressure Switch,cylinder Type
-
Digital Pressure Sensor, Pressure Transducer,cheap Air Pressure Sensor
-
YS3 Series Color Sensors, Maker Sensing, Label Mark Detection, Blue/Red/Green Light Source For Choice
-
YS3 Series Blue Light Color Detection Sensor With Connector , Three Core Cable
-
High Quality Green Light Color Mark Sensor Switch With CE
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | FKP37L-010-F20 |
Product Description
F&C FGP 37 series 40Mpa Air and liquid digital pressure sensor
Feature of FGP37 Series 40Mpa Air and liquidPressure sensor
1.Appplicable for both gas and liquid pressure measurement.
2.Analog voltage and analog current output are optional.
3.NPN and PNP available.
4. support switch delay an measurement unit change.

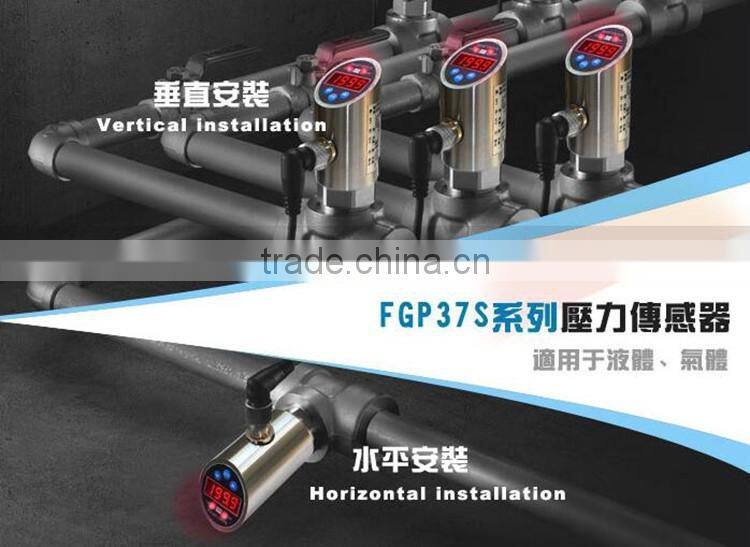

Product display
Specification
FGP37S-010-F20
01:NPN ,Dual switching value output are optional.
010:Switching value NPN,Analog voltage:0~5VDC / 0~10VDC
011:Switching value NPN,Analog voltage:0~20mA / 4~20mA
02:PNP ,Dual switching value output are optional.
020:Switching value PNP,Analog voltage:0~5VDC / 0~10VDC
021:Switching value PNP,Analog voltage:0~20mA / 4~20mA
| Model | FGP37S- 010-F20 | FGP37M-010-F20 | FGP37L-010 -F20 |
| Type of pressure | Standard pressure | ||
| Rated pressure range | 0Mpa~1.0Mpa | 0Mpa~10Mpa | 0Mpa~40Mpa |
| Set pressure range | 0Mpa~1.0Mpa | 0Mpa~10Mpa | 0Mpa~40Mpa |
| Resistance to pressure | 100Mpa | 100Mpa | 100Mpa |
| Suitable applications | The air/liquid, non corrosive, not combustible | ||
| Power supply voltage | 12~24VDC±10% | ||
| Current consumption | 24V 25mA Max 12V 45mA Max | ||
| Comparing output | Analog voltage:0~5VDC / 0~10VDC Analog current output:0~20mA / 4~20mA | ||
| Repeatability | ±0.5%FS | ||
| Reaction time | 10ms | ||
| Long term stability | ±0.3%FS/Year | ||
| Zoom range | 25 % FS - 100% FS | ||
| Vibration | within 10g/10Hz...500Hz | ||
| Collision | within 50g/11ms | ||
| Switch delay | 0.00s~99.99s | ||
| Measuring range | 0.1,0.35,0.7,1.6,3.5,7,10,25,40,60 | ||
| Temperature range | 30℃~70℃ | ||
| Humidity range | 0%-85% Relative humidity | ||
| Temperature characteristics | ±1%F.S (25℃) | ||
| Degree of protection | IP65 | ||
| Material | Case: stainless steel Display panel: PMMA 17 - four thirds sensor chip: 16 l Electrical connector: M12 round plug | ||
| Weight | 225g | ||
| Standard | Terminal wire 2.0m,1 manual,1 box | ||
| Option | 1 Mounting bracket | ||

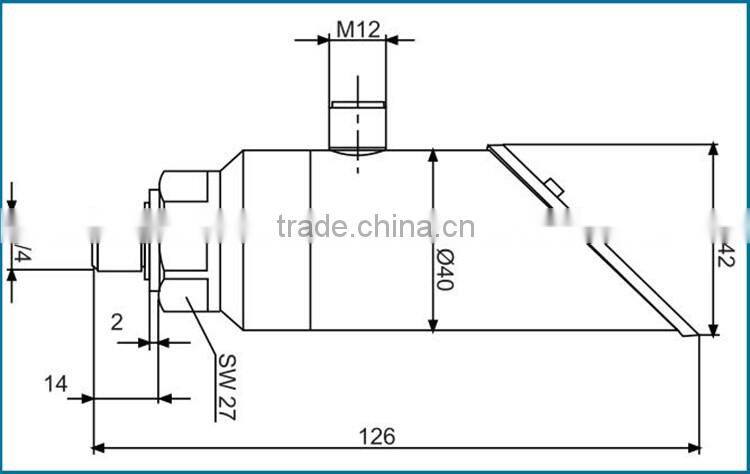

Product Dimension
F&C FGP 37 series 40Mpa Air and liquid digital pressure sensor

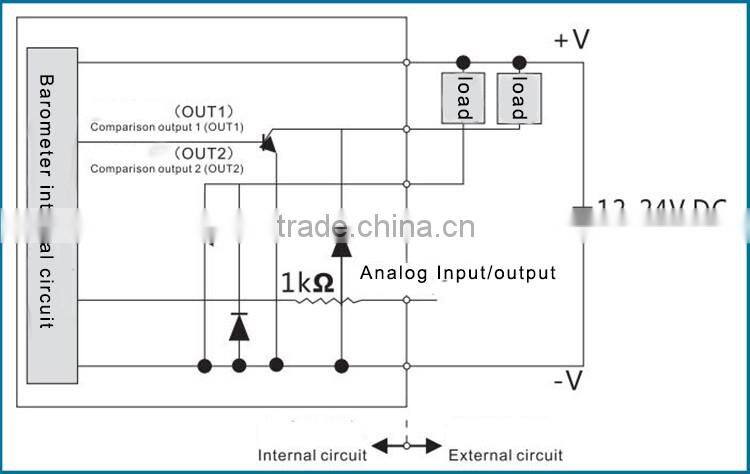

Wiring Drawing
